TIGRES - Horizontal Windlass
Main Features:
- Marine anodised aluminium body
- Independent gypsy and drum operation
- Manual chain release
- Manual override
- IP67 motor cover
- Available options in 12V, 24V & 48V
- Automatic free fall available as option (for 12V & 24V)
- For the 48V variant we have 63% decrease in amperage consumption in relation to the 24V equivalent variant, which makes it a cost efficient solution (smaller cables, supply from the same home batteries which results in lower installation costs)
Rope Kit is available for all TIGRES - Horizontal Windlasses.
The codes: 636766, 636767, 636768, 636769, 636691 & 636692, include the Rope Kit.
| Code | Description | Motor size | Power Supply | Maximum Pull | Working load (kg) | Amps at Working Load (A) | Line Speed at W.L | Max Line Speed | Net Weight | Circuit Breaker | Type | Gypsy For Chain | Rope Kit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

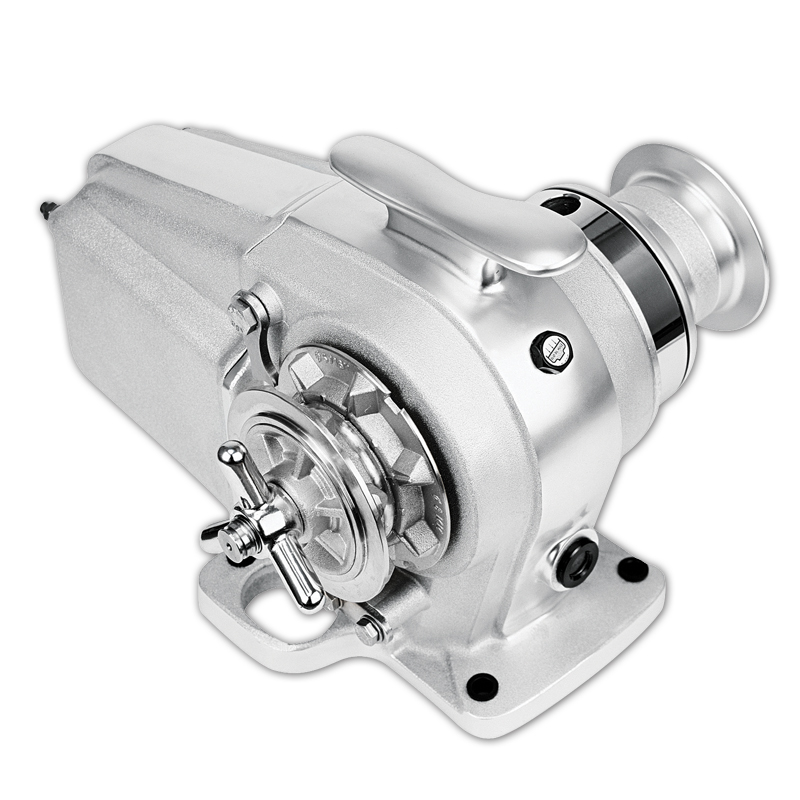

![[] WINDLASS H. TIGRES ALU G+D 1500W/24V 10 3/8 HT image](https://www.lofrans.com/images/items/itm_TIGRES.jpg)
|
WINDLASS H. TIGRES ALU G+D 1500W/24V 10 3/8 HT | 1500 W | 24 V | 1400 kg | 195 | 90 | 16 m/min | 33 m/min | 28 kg | - | With Drum | 10 mm, ISO 4565 | Not Included |
|
|
WINDLASS H. TIGRES ALU G+D 1500W/12V 8-5/16"BBB | 1500 W | 12 V | 1350 kg | 195 | 160 | 14 m/min | 33 m/min | 28 kg | - | With Drum | 8 mm, ISO 4565/DIN 766 | Not Included |
|
|
WINDLASS H. TIGRES ALU G+D 1500W/24V 8-5/16"BBB | 1500 W | 24 V | 1400 kg | 195 | 90 | 16 m/min | 33 m/min | 28 kg | - | With Drum | 8 mm, ISO 4565/DIN 766 | Not Included |
|
|
WINDLASS H. TIGRES ALU G STB D PORT 1500W/12V 10 3/8 HT | 1500 W | 12 V | 1350 kg | 195 | 160 | 14 m/min | 33 m/min | 28 kg | - | With Drum | 10 mm, ISO 4565 | Not Included |
|
|
WINDLASS H. TIGRES ALU G+D 1500W/12V 10DIN766 | 1500 W | 12 V | 1350 kg | 195 | 160 | 14 m/min | 33 m/min | 28 kg | - | With Drum | 10 mm, DIN 766 | Not Included |
|
|
WINDLASS H. TIGRES ALU G+D 1500W/24V 10DIN766 | 1500 W | 24 V | 1400 kg | 195 | 90 | 16 m/min | 33 m/min | 28 kg | - | With Drum | 10 mm, DIN 766 | Not Included |

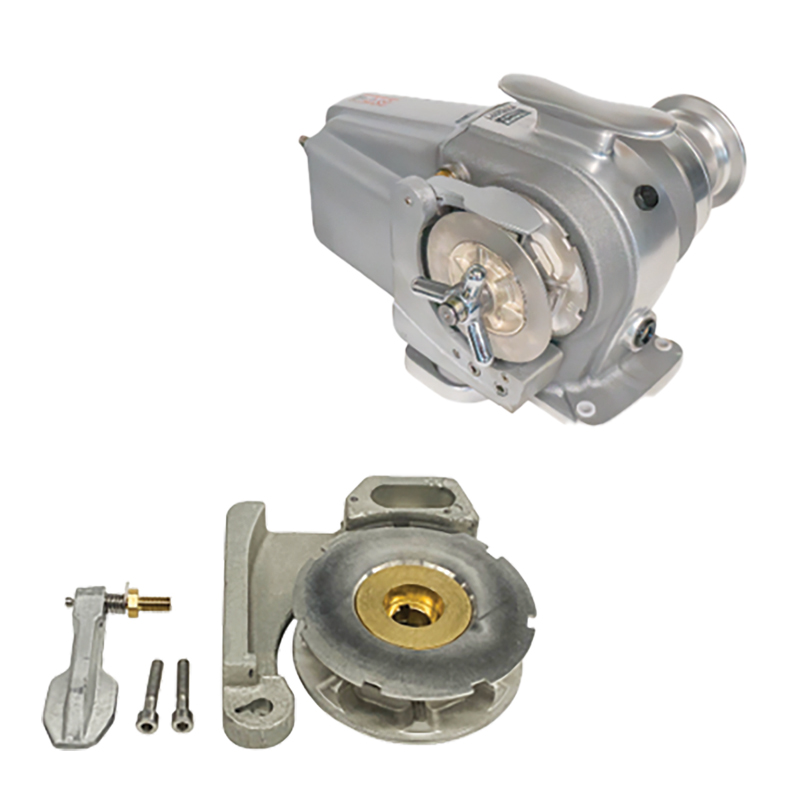

![[] WINDLASS H. TIGRES ALU G+D 1500W/48V 8-5/16"BBB with Rope kit image](https://www.lofrans.com/images/items/itm_TIGRES-with-rope-kit.jpg)
|
WINDLASS H. TIGRES ALU G+D 1500W/48V 8-5/16"BBB with Rope kit | 1500 W | 48 V | 1000 kg | 120 | 33 | 20 m/min | 20 m/min | 30 kg | 187331 | With Drum | 8 ISO-5/16 | Included |
|
|
WINDLASS H. TIGRES ALU G+D 1500W/48V 10 3/8 HT with Rope kit | 1500 W | 48 V | 1000 kg | 120 | 33 | 20 m/min | 20 m/min | 30 kg | 187331 | With Drum | 10 ISO-3/8 | Included |
|
|
WINDLASS H. TIGRES ALU G+D 1500W/12V 8-5/16"BBB with Rope kit | 1500 W | 12 V | 1500 kg | 190 | 160 | 14 m/min | 33 m/min | 28 kg | 187333 | With Drum | 8 mm ISO - 5/16” HT and 14mm 3-strand or 8 plaited rope | Included |
|
|
WINDLASS H. TIGRES ALU G+D 1500W/12V 10 3/8 HT with Rope kit | 1500 W | 12 V | 1500 kg | 190 | 160 | 14 m/min | 33 m/min | 28 kg | 187333 | With Drum | 10 mm ISO-3/8” HT and 16mm 3-strand or 8 plaited rope | Included |
|
|
WINDLASS H. TIGRES ALU G+D 1500W/24V 8-5/16"BBB with Rope kit | 1500 W | 24 V | 1590 kg | 200 | 90 | 16 m/min | 33 m/min | 28 kg | 187332 | With Drum | 8 mm ISO - 5/16” HT and 14mm 3-strand or 8 plaited rope | Included |
|
|
WINDLASS H. TIGRES ALU G+D 1500W/24V 10 3/8 HT with Rope kit | 1500 W | 24 V | 1590 kg | 200 | 90 | 16 m/min | 33 m/min | 28 kg | 187332 | With Drum | 10 mm ISO-3/8” HT and 16mm 3-strand or 8 plaited rope | Included |
To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.
