X3 - Vertical Windlass

Place Order

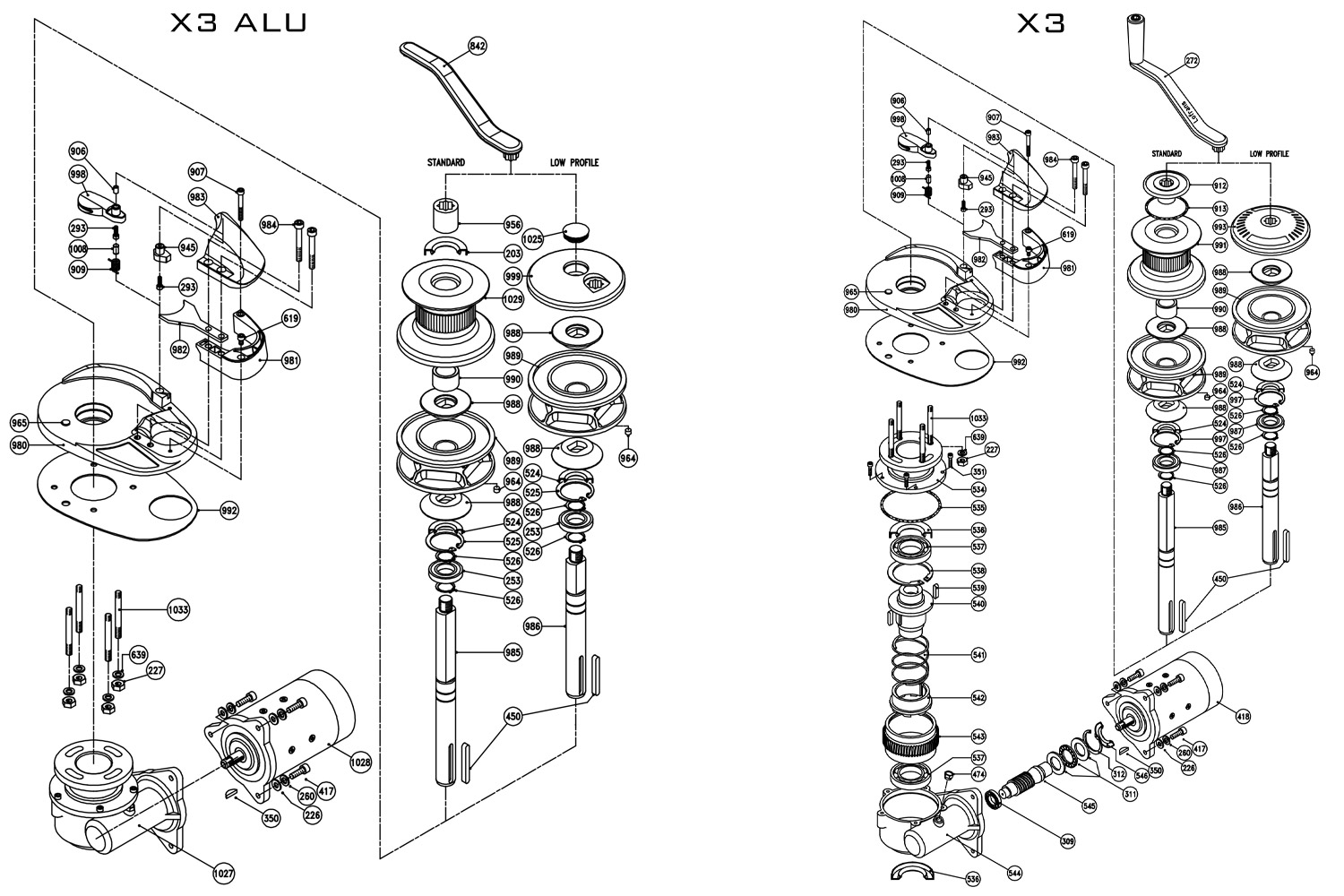

[11857] Lofrans' Winch Handle, Anodised Aluminium, with lock and speed handle, 20cm, Black

[72907] Lofrans' Floating Winch Handle, 25cm

[11857] Lofrans' Winch Handle, Anodised Aluminium, with lock and speed handle, 20cm, Black

[72907] Lofrans' Floating Winch Handle, 25cm

[198005] SUPPORT STRIPPER X3 #981

[474017] KIT F FINGER X3

[602105] KIT F FINGER X3 INOX

[474017] KIT F FINGER X3

[602105] KIT F FINGER X3 INOX

[474017] KIT F FINGER X3

[602105] KIT F FINGER X3 INOX

[474017] KIT F FINGER X3

[602105] KIT F FINGER X3 INOX

[474017] KIT F FINGER X3

[602105] KIT F FINGER X3 INOX

[474017] KIT F FINGER X3

[602105] KIT F FINGER X3 INOX

[474017] KIT F FINGER X3

[602105] KIT F FINGER X3 INOX

[474017] KIT F FINGER X3

[602105] KIT F FINGER X3 INOX

[474017] KIT F FINGER X3

[602105] KIT F FINGER X3 INOX

[474017] KIT F FINGER X3

[602105] KIT F FINGER X3 INOX

[474017] KIT F FINGER X3

[602105] KIT F FINGER X3 INOX

[474017] KIT F FINGER X3

[602105] KIT F FINGER X3 INOX

[474053] KIT S SENSOR&MAGNET X1/X2/X3

[601125] MAIN SHAFT X3 #985B

[630676] MAIN SHAFT X3 #985A

[601125] MAIN SHAFT X3 #985B

[630676] MAIN SHAFT X3 #985A

[601427] KIT STUD M8X105 #1033

[601762] GEARCASE X3 #544 ALU

[630677] MAIN SHAFT X3 #986A

[630684] MAIN SHAFT X3 #986B

[630685] MAIN SHAFT X3 #986C

[630677] MAIN SHAFT X3 #986A

[630684] MAIN SHAFT X3 #986B

[630685] MAIN SHAFT X3 #986C

[630957] LOFRANS GYPSY X3/PRJ1500 8mmISO4565/DIN766 #989A

[630959] LOFRANS GYPSY X3/PRJ1500 10mmISO4565 #989B

[630961] LOFRANS GYPSY X3/PRJ1500 12mmISO-13DIN766 #989D

[630966] LOFRANS GYPSY X3/PRJ1500 10mmDIN766 #989C

[630957] LOFRANS GYPSY X3/PRJ1500 8mmISO4565/DIN766 #989A

[630959] LOFRANS GYPSY X3/PRJ1500 10mmISO4565 #989B

[630961] LOFRANS GYPSY X3/PRJ1500 12mmISO-13DIN766 #989D

[630966] LOFRANS GYPSY X3/PRJ1500 10mmDIN766 #989C

[630957] LOFRANS GYPSY X3/PRJ1500 8mmISO4565/DIN766 #989A

[630959] LOFRANS GYPSY X3/PRJ1500 10mmISO4565 #989B

[630961] LOFRANS GYPSY X3/PRJ1500 12mmISO-13DIN766 #989D

[630966] LOFRANS GYPSY X3/PRJ1500 10mmDIN766 #989C

[630957] LOFRANS GYPSY X3/PRJ1500 8mmISO4565/DIN766 #989A

[630959] LOFRANS GYPSY X3/PRJ1500 10mmISO4565 #989B

[630961] LOFRANS GYPSY X3/PRJ1500 12mmISO-13DIN766 #989D

[630966] LOFRANS GYPSY X3/PRJ1500 10mmDIN766 #989C

[631197] BASE X3 #980A CRO STB

[631200] BASE X3 #980B ALU STB

[631366] CAP CHAIN X3 #983B ALU

[631370] CAP CHAIN X3 #983A CRO

[631437] DRUM X3 #1029 ALU

[631442] DRUM X3 #991A CRO

[631518] BRACKET X3 #540

[631544] Wormwheel X3 #543

[631743] BEARING 6006 2RS #253 #987

[631751] BEARING 6203 #309

[631760] BEARING 16009 #537

[631765] BEARING 51106 #462

[631799] DOG CLUTCH X3 #542

[631826] CONE CLUTCH X3 #988

[631901] SPACER X3 #990

[631989] LOFRANS' GEARBOX X3 B14 FLANGE STB FOR 1700W MOTOR

[631991] LOFRANS' GEARBOX X3 TRIANGULAR FLANGE WITH EMERGENCY

[632070] FLANGE X3 #534

[633246] SEAL X3 #992

[633258] CAP FOR LOCKABLE CLUTCH HOLE #1025

[633515] ELECTRIC MOTOR 1700W 12V-4M M.W.

[633548] SPRING X3 #541

[634369] Lofrans Motor Tigres 1500W/12V #418E

[634370] Lofrans Motor Tigres 1500W/24V #418F

[634371] Lofrans Motor Falkon 1700W/12V #418G

[634372] Lofrans Motor Falkon 1700W/24V #418H

[635270] STRIPPER X3 #982

[635442] OIL PLUG TC0 1/4

[635462] GYPSY CAP X3 #993A CRO

[635464] GYPSY CAP X3 #999A CRO

[635490] CLUTCH NUT X2 #956 CRO

[635516] CLUTCH NUT X2 #912 CRO

[635690] WORM X3 #545

[72040] MAINTENANCE KIT X3-PROJECT 1500

Main Features

Standard Equipment:

Dual direction solenoid pack
Handle
Gypsy for chain
CD / Instruction manual

Get in touch

Code	Description	Construction	Motor size	Power Supply	Maximum Pull	Working load (kg)	Amps at Working Load (A)	Line Speed at W.L	Max Line Speed	Net Weight	Circuit Breaker	Type	Gypsy For Chain	Gypsy For Rope

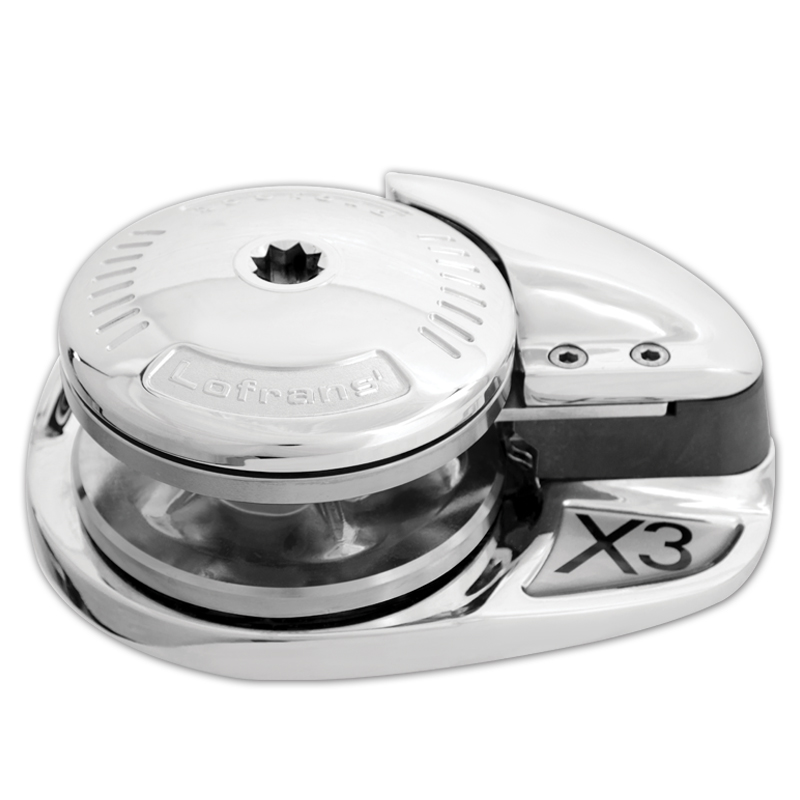

	WINDLASS V. X3 CRO 1700W/12V 12-13DIN766	Chromed bronze	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	35 kg	-	Low Profile	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand
	WINDLASS V. X3 CRO G+D 1500W/12V 10 3/8 HT	Chromed bronze	1500 W	12 V	1200 kg	165	150	17 m/min	40 m/min	35 kg	-	With Drum	10 mm, ISO 4565	16 mm, 3-strand
	WINDLASS V. X3 CRO 1500W/12V 10 3/8 HT	Chromed bronze	1500 W	12 V	1200 kg	165	150	17 m/min	40 m/min	32 kg	-	Low Profile	10 mm, ISO 4565	16 mm, 3-strand
	WINDLASS V. X3 CRO G+D 1700W/12V 12-13DIN766	Chromed bronze	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	38 kg	-	With Drum	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand
	WINDLASS V. X3 CRO G+D 1700W/24V 12-13DIN766	Chromed bronze	1700 W	24 V	1695 kg	215	90	15 m/min	32 m/min	38 kg	-	With Drum	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand
	WINDLASS V. X3 CRO 1700W/24V 12-13DIN766	Chromed bronze	1700 W	24 V	1695 kg	215	90	15 m/min	32 m/min	35 kg	-	Low Profile	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand
	WINDLASS V. X3 CRO G+D 1700W/12V 10 3/8 HT	Chromed bronze	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	38 kg	-	With Drum	10 mm, ISO 4565	16 mm, 3-strand
	WINDLASS V. X3 CRO 1700W/12V 10 3/8 HT	Chromed bronze	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	35 kg	-	Low Profile	10 mm, ISO 4565	16 mm, 3-strand
	WINDLASS V. X3 CRO 1500W/24V 10DIN766	Chromed bronze	1500 W	24 V	1200 kg	165	65	17 m/min	35 m/min	32 kg	187332	Low Profile	10 mm, DIN 766	16 mm, 3-strand
	WINDLASS V. X3 CRO G+D 1700W/24V 10 3/8 HT	Chromed bronze	1700 W	24 V	1695 kg	215	90	15 m/min	32 m/min	38 kg	-	With Drum	10 mm, ISO 4565	16 mm, 3-strand
	WINDLASS V. X3 CRO 1700W/24V 10 3/8 HT	Chromed bronze	1700 W	24 V	1695 kg	215	90	15 m/min	32 m/min	35 kg	187332	Low Profile	10 mm, ISO 4565	16 mm, 3-strand
	"WINDLASS V. X3 ALU G+D 1700W/12V 8-5/16" BBB-5/16" HT"	Aluminium	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	35 kg	-	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 ALU G+D 1700W/12V 10DIN766	Aluminium	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	35 kg	187334	With Drum	10 mm, DIN 766	16 mm, 3-strand
	WINDLASS V. X3 ALU G+D 1700W/12V 12-13DIN766	Aluminium	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	35 kg	-	With Drum	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand
	WINDLASS V. X3 CRO G+D 1700W/12V 8-5/16"BBB-5/16"HT	Chromed bronze	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	38 kg	-	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 CRO 1700W/12V 8-5/16 ''BBB-5/16''HT	Chromed bronze	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	35 kg	-	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 CRO G+D 1700W/24V 8-5/16''BBB-5/16''HT	Chromed bronze	1700 W	24 V	1695 kg	215	90	15 m/min	32 m/min	38 kg	-	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 CRO 1500W/12V 8-5/16"BBB-5/16"HT	Chromed bronze	1500 W	12 V	1200 kg	165	150	17 m/min	40 m/min	32 kg	-	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 CRO 1500W/12V 12-13DIN766	Chromed bronze	1500 W	12 V	1200 kg	165	150	17 m/min	40 m/min	32 kg	-	Low Profile	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand
	WINDLASS V. X3 CRO G+D 1500W/12V 8-5/16"BBB-5/16"HT	Chromed bronze	1500 W	12 V	1200 kg	165	150	17 m/min	40 m/min	35 kg	-	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 CRO G+D 1500W/12V 12-13DIN766	Chromed bronze	1500 W	12 V	1200 kg	165	150	17 m/min	40 m/min	35 kg	-	With Drum	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand
	WINDLASS V. X3 CRO 1500W/24V 8-5/16"BBB-5/16"HT	Chromed bronze	1500 W	24 V	1200 kg	165	65	17 m/min	35 m/min	32 kg	187332	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 CRO 1500W/24V 10 3/8 HT	Chromed bronze	1500 W	24 V	1200 kg	165	65	17 m/min	35 m/min	32 kg	187332	Low Profile	10 mm, ISO 4565	16 mm, 3-strand
	WINDLASS V. X3 CRO 1500W/24V 12-13DIN766	Chromed bronze	1500 W	24 V	1200 kg	165	65	17 m/min	35 m/min	32 kg	187332	Low Profile	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand
	WINDLASS V. X3 CRO G+D 1500W/24V 8-5/16"BBB-5/16"HT	Chromed bronze	1500 W	24 V	1200 kg	165	65	17 m/min	35 m/min	35 kg	187332	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 CRO G+D 1500W/24V 12-13DIN766	Chromed bronze	1500 W	24 V	1200 kg	165	65	17 m/min	35 m/min	35 kg	187332	With Drum	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand
	WINDLASS V. X3 CRO 1700W/24V 8-5/16"BBB-5/16"HT	Chromed bronze	1700 W	24 V	1695 kg	200	90	15 m/min	32 m/min	38 kg	187332	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 ALU 1700W/12V 8-5/16''BBB-5/16''HT	Aluminium	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	32 kg	187334	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 ALU 1700W/12V 10 3/8 HT	Aluminium	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	32 kg	-	Low Profile	10 mm, ISO 4565	16 mm, 3-strand
	WINDLASS V. X3 ALU 1700W/12V 10DIN766	Aluminium	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	32 kg	187334	Low Profile	10 mm, DIN 766	16 mm, 3-strand
	WINDLASS V. X3 ALU G+D 1700W/12V 10 3/8 HT	Aluminium	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	35 kg	187334	With Drum	10 mm, ISO 4565	16 mm, 3-strand
	WINDLASS V. X3 ALU 1700W/24V 10 3/8 HT	Aluminium	1700 W	24 V	1695 kg	200	90	15 m/min	32 m/min	35 kg	187332	Low Profile	10 mm, ISO 4565	16 mm, 3-strand
	WINDLASS V. X3 ALU 1700W/24V 12-13DIN766	Aluminium	1700 W	24 V	1695 kg	200	90	15 m/min	32 m/min	35 kg	187332	Low Profile	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand
	WINDLASS V. X3 ALU 1700W/24V 10DIN766	Aluminium	1700 W	24 V	1695 kg	200	90	15 m/min	32 m/min	35 kg	187332	Low Profile	10 mm, DIN 766	16 mm, 3-strand
	WINDLASS V. X3 ALU G+D 1700W/24V 8-5/16"BBB-5/16"HT	Aluminium	1700 W	24 V	1695 kg	200	90	15 m/min	32 m/min	38 kg	187332	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 ALU G+D 1700W/24V 10 3/8 HT	Aluminium	1700 W	24 V	1695 kg	200	90	15 m/min	32 m/min	38 kg	187332	With Drum	10 mm, ISO 4565	16 mm, 3-strand
	WINDLASS V. X3 ALU G+D 1700W/24V 12-13DIN766	Αluminium	1700 W	24 V	1695 kg	200	90	15 m/min	32 m/min	38 kg	-	With Drum	12 mm, ISO 4565 / 13mm, DIN 766	18 mm, 3-strand
	WINDLASS V. X3 ALU G+D 1700W/24V 10DIN766	Aluminium	1700 W	24 V	1695 kg	200	90	15 m/min	32 m/min	38 kg	187332	With Drum	10 mm, DIN 766	16 mm, 3-strand
	WINDLASS V. X3 CRO 1500W/12V 10DIN766	Chromed bronze	1500 W	12 V	1200 kg	165	150	17 m/min	40 m/min	32 kg	187333	Low Profile	10 mm, DIN 766	16 mm, 3-strand
	WINDLASS V. X3 CRO G+D 1700W/12V 10DIN766	Chromed bronze	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	38 kg	-	With Drum	10 mm, DIN 766	16 mm, 3-strand
	WINDLASS V. X3 CRO 1700W/12V 10DIN766	Chromed bronze	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	35 kg	-	Low Profile	10 mm, DIN 766	16 mm, 3-strand
	WINDLASS V. X3 CRO G+D 1700W/24V 10DIN766	Chromed bronze	1700 W	24 V	1695 kg	215	90	15 m/min	32 m/min	38 kg	-	With Drum	10 mm, DIN 766	16 mm, 3-strand
	WINDLASS V. X3 CRO 1700W/24V 10DIN766	Chromed bronze	1700 W	24 V	1695 kg	215	90	15 m/min	32 m/min	35 kg	-	Low Profile	10 mm, DIN 766	16 mm, 3-strand
	WINDLASS V. X3 ALU 1700W/12V 12-13DIN766	Aluminium	1700 W	12 V	1600 kg	200	180	14 m/min	32 m/min	32 kg	187334	Low Profile	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand
	WINDLASS V. X3 ALU 1700W/24V 8-5/16"BBB-5/16"HT	Aluminium	1700 W	24 V	1695 kg	200	90	15 m/min	32 m/min	38 kg	187332	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 ALU G+D 1500W/24V 8-5/16"BBB-5/16"HT	Aluminium	1500 W	24 V	1200 kg	165	65	17 m/min	35 m/min	35 kg	187332	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 ALU G+D 1500W/24V 10 3/8 HT	Aluminium	1500 W	24 V	1200 kg	165	65	17 m/min	35 m/min	35 kg	187332	With Drum	10 mm, ISO 4565	16 mm, 3-strand
	WINDLASS V. X3 ALU G+D 1500W/24V 10DIN766	Aluminium	1500 W	24 V	1200 kg	165	65	17 m/min	35 m/min	35 kg	187332	With Drum	10 mm, DIN 766	16 mm, 3-strand
	WINDLASS V. X3 ALU G+D 1500W/12V 8-5/16"BBB-5/16"HT	Aluminium	1500 W	12 V	1200 kg	165	150	17 m/min	40 m/min	35 kg	187333	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 ALU G+D 1500W/12V 10 3/8 HT	Αluminium	1500 W	12 V	1200 kg	165	150	17 m/min	40 m/min	35 kg	-	With Drum	10 mm, ISO 4565	16 mm, 3-strand
	WINDLASS V. X3 ALU G+D 1500W/12V 10DIN766	Αluminium	1500 W	12 V	1200 kg	165	150	17 m/min	40 m/min	35 kg	-	With Drum	10 mm, DIN 766	16 mm, 3-strand
	WINDLASS V. X3 ALU 1500W/24V 8-5/16"BBB-5/16"HT	Aluminium	1500 W	24 V	1200 kg	165	65	17 m/min	35 m/min	32 kg	187332	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 ALU 1500W/24V 10 3/8 HT	Aluminium	1500 W	24 V	1200 kg	165	65	17 m/min	35 m/min	32 kg	187332	Low Profile	10 mm, ISO 4565	16 mm, 3-strand
	WINDLASS V. X3 ALU 1500W/24V 10DIN766	Aluminium	1500 W	24 V	1200 kg	165	65	17 m/min	35 m/min	32 kg	187332	Low Profile	10 mm, DIN 766	16 mm, 3-strand
	WINDLASS V. X3 ALU 1500W/12V 8-5/16"BBB-5/16"HT	Aluminium	1500 W	12 V	1200 kg	165	150	17 m/min	40 m/min	32 kg	187333	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
	WINDLASS V. X3 ALU 1500W/12V 10 3/8 HT	Aluminium	1500 W	12 V	1200 kg	165	150	17 m/min	40 m/min	32 kg	187333	Low Profile	10 mm, ISO 4565	16 mm, 3-strand
	WINDLASS V. X3 ALU 1500W/12V 10DIN766	Aluminium	1500 W	12 V	1200 kg	165	150	17 m/min	40 m/min	32 kg	187333	Low Profile	10 mm, DIN 766	16 mm, 3-strand
636787	WINDLASS V. X3 CRO 1500W/24V 8-5/16"BBB-5/16"HT WITH INOX FINGER	Chromed bronze	1500 W	24 V	1200 kg	165	65	17 m/min	35 m/min	32 kg	187332	Low Profile, with INOX Finger	8 mm, ISO 4565/DIN 766	14 mm, 3-strand

The "X" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model. For the X2 windlass and X3 windlass there is a Plus version of stainless steel AISI 316L mirror polishing which offers a stronger protection against corrosion.

The standard features that you can meet in every X series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Manual override so that the chain or rope can be recovered manually in case of electric function failure.

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

Technical Information
