X2- Vertical Windlass Dark Version

Main Features:

  • Special watertight stainless steel ball bearing in the base
  • With drum or low profile
  • Independent gypsy and drum operation
  • Rope and chain combinaton gypsy
  • Manual chain release
  • Manual override available
  • Rope chain management by the spring loaded arm
  • Chain counter magnet pre-installed as standard
  • IP67 motor cover
  • Marine anodised aluminium gearbox



Standard Equipment:

  • Dual direction solenoid pack
  • Handle
  • Gypsy for chain & rope
  • QR code card for Instruction Manual
Get in touch
Code Description Circuit Breaker Gypsy For Rope Gypsy For Chain Line Speed at W.L Max Line Speed Maximum Pull Motor size Power Supply Type Net Weight Amps at Working Load (A) Working load (kg)

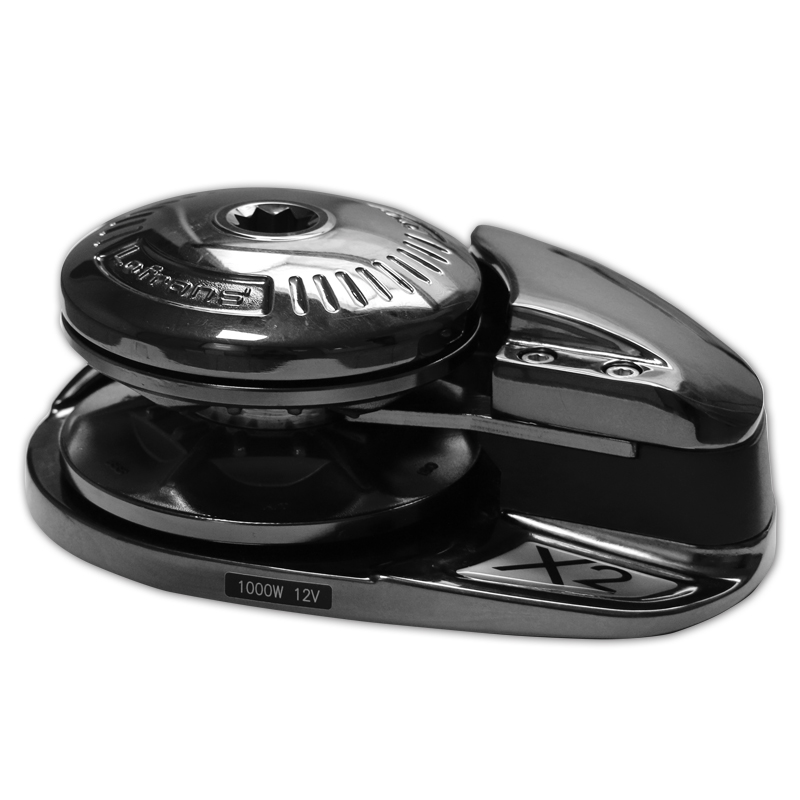

[] WINDLASS V. X2 DARK 1000W/12V 8-5/16BBB-5/16HT image
WINDLASS V. X2 DARK 1000W/12V 8-5/16BBB-5/16HT 187333 14 mm, 3-strand 8 mm, ISO 4565/ DIN 766 20 m/min 40 m/min 1000 kg 1000 W 12 V Low Profile 19 kg 117 150 kg

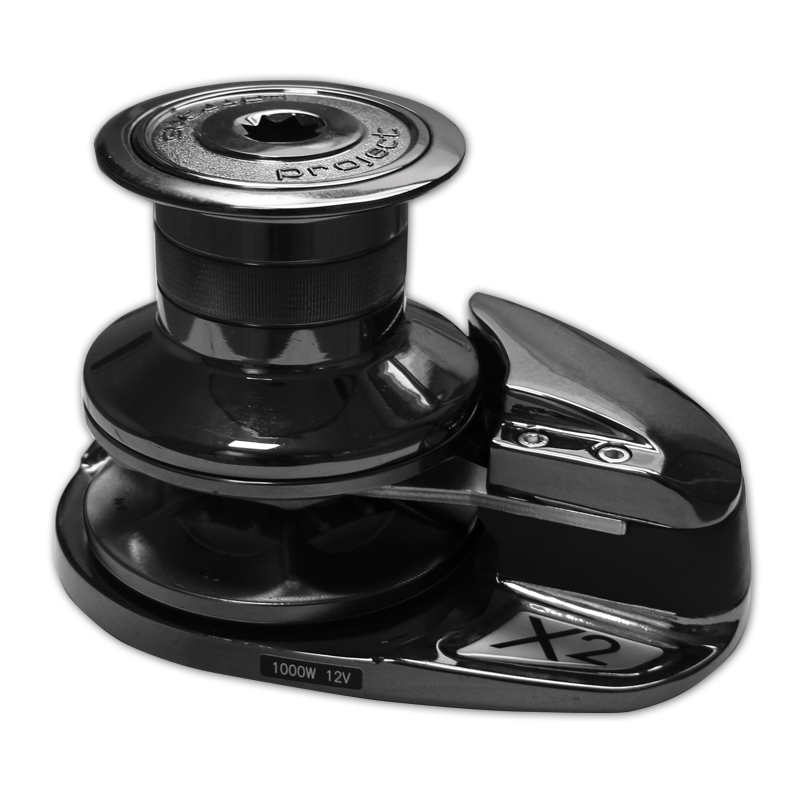

[] WINDLASS V. X2 DARK G+D 1000W/12V 8-5/16BBB-5/16HT image
WINDLASS V. X2 DARK G+D 1000W/12V 8-5/16BBB-5/16HT 187333 14 mm, 3-strand 8 mm, ISO 4565/ DIN 766 20 m/min 40 m/min 1000 kg 1000 W 12 V With Drum 20 kg 117 150 kg
[] WINDLASS V. X2 DARK 1000W/12V 10 3/8 HT image
WINDLASS V. X2 DARK 1000W/12V 10 3/8 HT 187333 - 10 mm, ISO 4565 20 m/min 40 m/min 1000 kg 1000 W 12 V Low Profile 19 kg 117 150 kg
[] WINDLASS V. X2 DARK G+D 1000W/12V 10 3/8 HT image
WINDLASS V. X2 DARK G+D 1000W/12V 10 3/8 HT 187333 - 10 mm, ISO 4565 20 m/min 40 m/min 1000 kg 1000 W 12 V With Drum 20 kg 117 150 kg
[] WINDLASS V. X2 DARK 1000W/12V 10DIN766 image
WINDLASS V. X2 DARK 1000W/12V 10DIN766 187333 - 10 mm, DIN 766 20 m/min 40 m/min 1000 kg 1000 W 12 V Low Profile 19 kg 117 150 kg
[] WINDLASS V. X2 DARK G+D 1000W/12V 10DIN766 image
WINDLASS V. X2 DARK G+D 1000W/12V 10DIN766 187333 - 10 mm, DIN 766 20 m/min 40 m/min 1000 kg 1000 W 12 V With Drum 20 kg 117 150 kg
636845 WINDLASS V. X2 DARK 1000W/24V 8-5/16BBB-5/16HT 187332 14 mm, 3-strand 8 mm, ISO 4565/ DIN 766 23 m/min 40 m/min 1060 kg 1000 W 24 V Low Profile 23 kg 59 160 kg
636846 WINDLASS V. X2 DARK G+D 1000W/24V 8-5/16BBB-5/16HT 187332 14 mm, 3-strand 8 mm, ISO 4565/ DIN 766 23 m/min 40 m/min 1060 kg 1000 W 24 V With Drum 24 kg 59 160 kg
Product Brochure

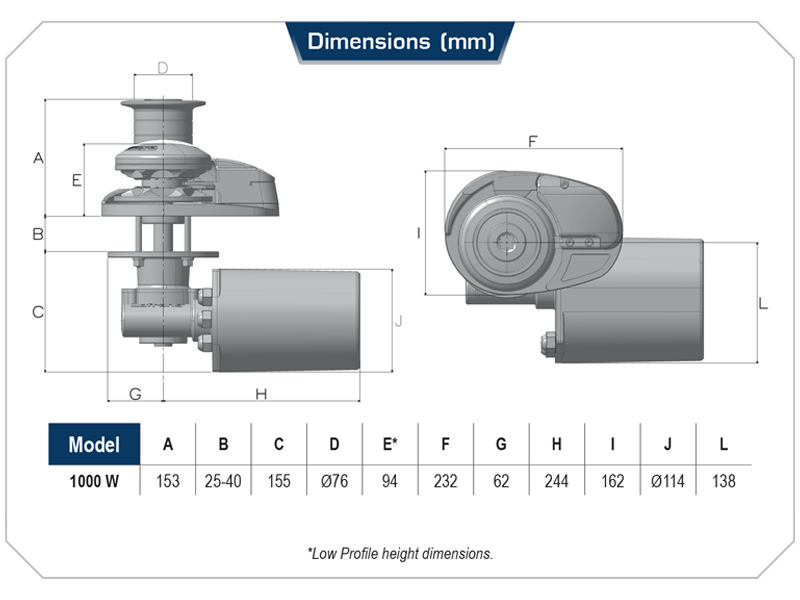

X2 dimensions new
