X2 - Vertical Windlass

Place Order

[11857] Lofrans' Winch Handle, Anodised Aluminium, with lock and speed handle, 20cm, Black

[72907] Lofrans' Floating Winch Handle, 25cm

[11857] Lofrans' Winch Handle, Anodised Aluminium, with lock and speed handle, 20cm, Black

[72907] Lofrans' Floating Winch Handle, 25cm

[197977] Lofrans Motor cover for X2 -1000/1500W

[474023] KIT F FINGER X2

[601047] KIT F FINGER X2 INOX

[474023] KIT F FINGER X2

[601047] KIT F FINGER X2 INOX

[474023] KIT F FINGER X2

[601047] KIT F FINGER X2 INOX

[474023] KIT F FINGER X2

[601047] KIT F FINGER X2 INOX

[474023] KIT F FINGER X2

[601047] KIT F FINGER X2 INOX

[474023] KIT F FINGER X2

[601047] KIT F FINGER X2 INOX

[474023] KIT F FINGER X2

[601047] KIT F FINGER X2 INOX

[474023] KIT F FINGER X2

[601047] KIT F FINGER X2 INOX

[474023] KIT F FINGER X2

[601047] KIT F FINGER X2 INOX

[474023] KIT F FINGER X2

[601047] KIT F FINGER X2 INOX

[474023] KIT F FINGER X2

[601047] KIT F FINGER X2 INOX

[474023] KIT F FINGER X2

[601047] KIT F FINGER X2 INOX

[474053] KIT S SENSOR&MAGNET X1/X2/X3

[601368] KIT STUD M8X75 #292A

[630661] MAIN SHAFT X2 #917A

[630662] MAIN SHAFT X2 #919A

[630840] CIRCLIP DIA.25 X2 #550

[630949] LOFRANS GYPSY X2/PRJ1000 8mmISO4565/DIN766 #916B

[630951] LOFRANS GYPSY X2/PRJ1000 10mmISO4565 #916C

[630953] LOFRANS GYPSY X2/PRJ1000 6mmISO4565/DIN766 #916A

[630955] LOFRANS GYPSY X2/PRJ1000 10mmDIN766 #916D

[631231] BASE X2 #904B ALU STB

[631234] BASE X2 #904A CRO STB

[631357] CAP CHAIN X2 #908A CRO

[631359] CAP CHAIN X2 #908B ALU

[631463] DRUM X2 #957 ALU

[631466] DRUM X2 #914A CRO

[631513] BRACKET X2 #922

[631525] Wormwheel X2 #926

[631651] Gearcase X2 #928 ALU

[631742] BEARING 6005 2RS #966

[631745] BEARING 6008 2RS #870

[631751] BEARING 6203 #309

[631764] BEARING 51105 #311

[631795] DOG CLUTCH X2 #925

[631841] CONE CLUTCH X2 #915

[631899] SPACER X2 #958

[632063] FLANGE X2 #920

[633245] SEAL X2 #967

[633523] Electric Motor 12V-3M 1,0KW B14 #1244A

[633524] Electric Motor 24V-3M 1,0KW B14 #1244B

[633525] Electric Motor 12V-3M 1,5KW B14 #1250A

[633526] Lofrans Motor X2-X3 24V 1,5KW B14 Circle Flange #1250B

[633537] SPRING X2 #924

[634826] Washer X2 #923

[635267] STRIPPER PROJECT 1000 / X2 #910 NEW DESIGN

[635311] Pin parallel DIN7 4x14 A4 #887

[635378] SUPPORT STRIPPER X2 #911

[635490] CLUTCH NUT X2 #956 CRO

[635512] GYPSY CAP X2 #918A CRO

[635516] CLUTCH NUT X2 #912 CRO

[635677] Worm A1, M=1.25 Z=55, #1308a

[635678] Worm A2, M=1.75, #1308b

[635677] Worm A1, M=1.25 Z=55, #1308a

[635678] Worm A2, M=1.75, #1308b

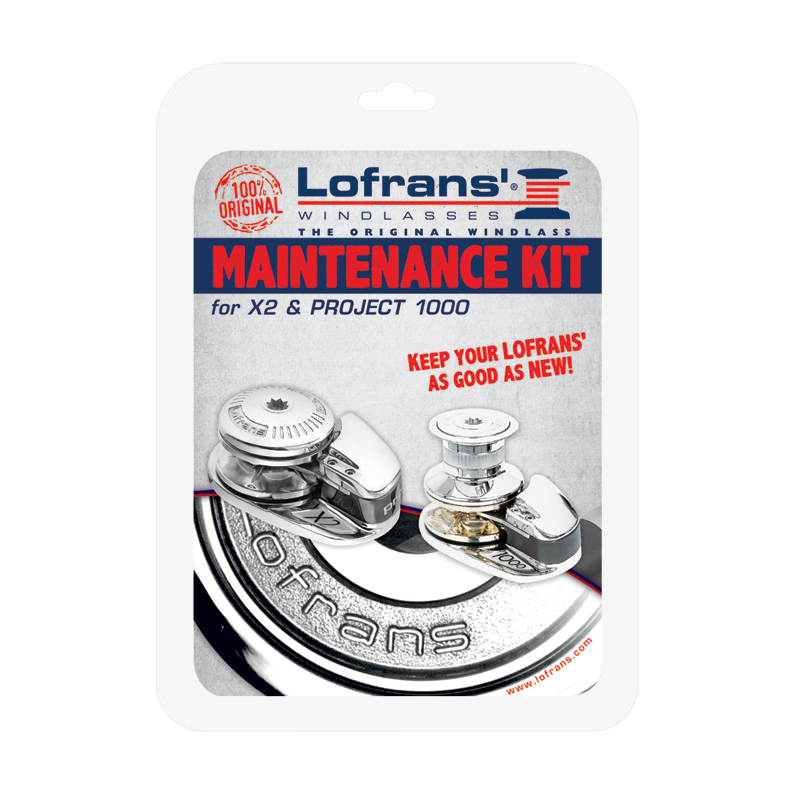

[72038] MAINTENANCE KIT X2-PROJECT 1000

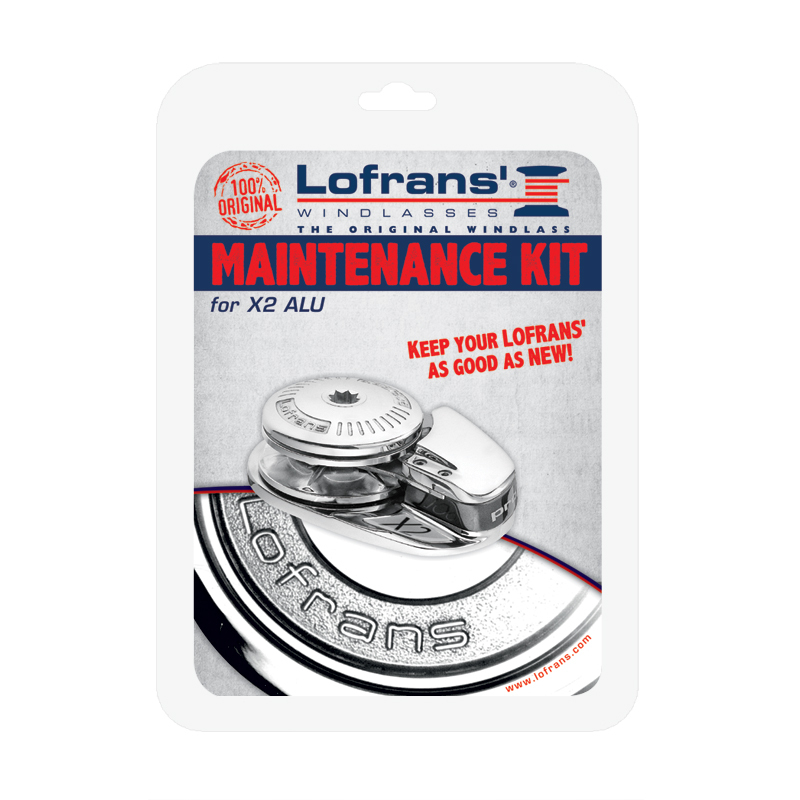

[72039] MAINTENANCE KIT X2 ALU

Main Features:

Standard Equipment:

Dual direction solenoid pack
Handle
Gypsy for chain
CD / Instruction manual

Get in touch

Description	Construction	Motor size	Power Supply	Maximum Pull	Working load (kg)	Amps at Working Load (A)	Line Speed at W.L	Max Line Speed	Net Weight	Circuit Breaker	Type	Gypsy For Chain	Gypsy For Rope

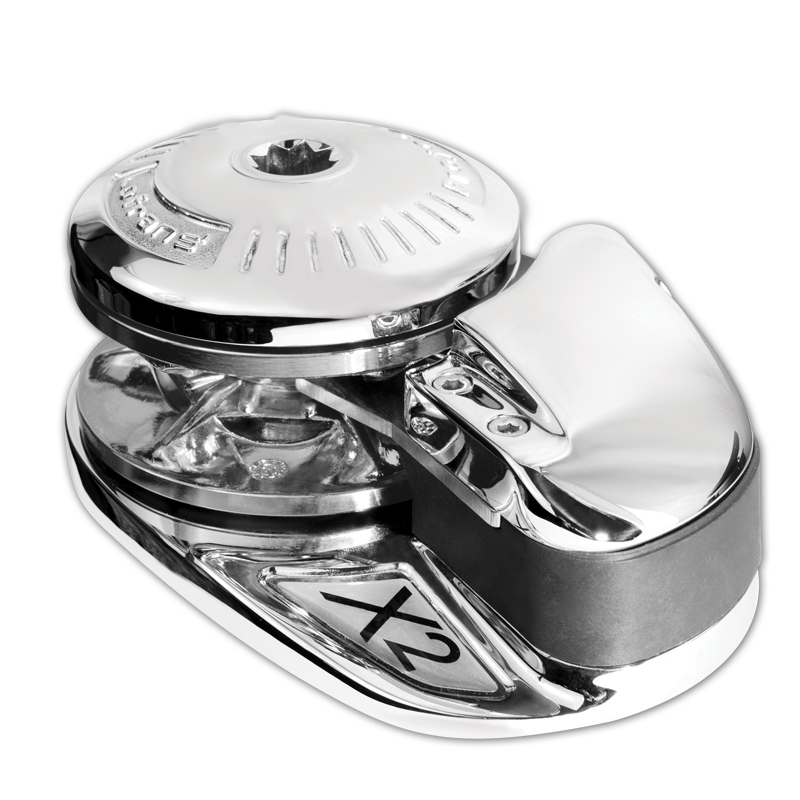

WINDLASS V. X2 CRO 1500W/12V 10DIN766	Chrome Plated	1500 W	12 V	1200 kg	165	130	17 m/min	40 m/min	24 kg	187333	Low Profile	10 mm, DIN 766	-

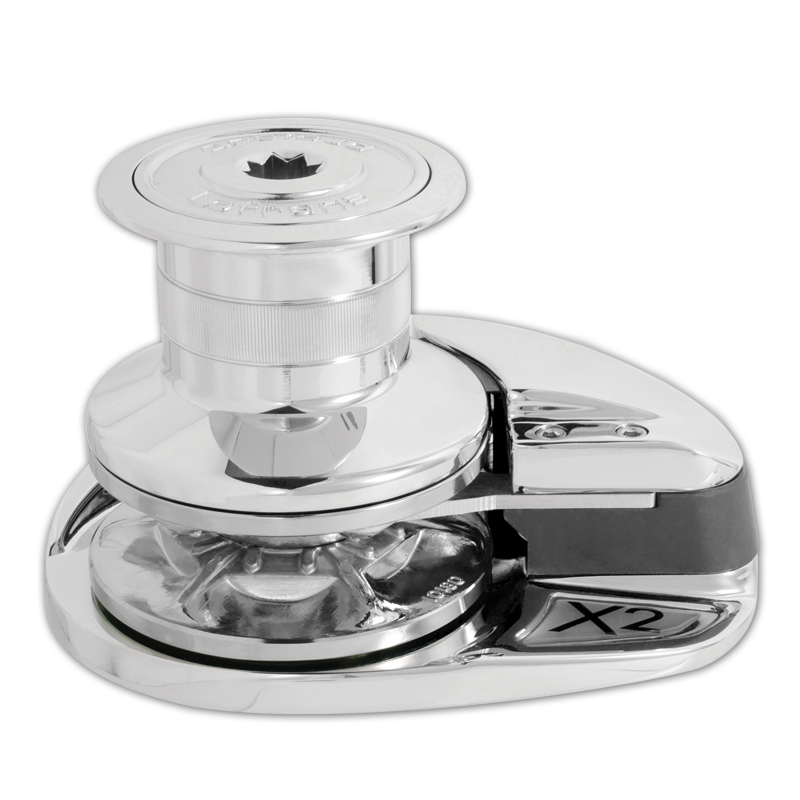

WINDLASS V. X2 CRO G+D 1500W/12V 10DIN766	Chrome Plated	1500 W	12 V	1200 kg	165	130	17 m/min	40 m/min	25 kg	187333	With Drum	10 mm, DIN 766	-
WINDLASS V. X2 CRO G+D 1500W/24V 10DIN766	Chrome Plated	1500 W	24 V	1270 kg	175	65	19 m/min	40 m/min	25 kg	187332	With Drum	10 mm, DIN 766	-
WINDLASS V. X2 ALU 1000W/12V 8-5/16"BBB-5/16"HT	Anodised Aluminium	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	19 kg	187333	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 ALU 800W/12V 8-5/16"BBB-5/16"HT	Anodised Aluminium	800 W	12 V	850 kg	115	110	26 m/min	35 m/min	18 kg	187332	Low Profile	8 mm, ISO 4556/DIN 766	14 mm, 3-strand
WINDLASS V. X2 ALU G+D 800W/12V 8-5/16"BBB-5/16"HT	Anodised Aluminium	800 W	12 V	850 kg	115	110	26 m/min	35 m/min	19 kg	187332	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 ALU G+D 1000W/24V 8-5/16"BBB-5/16"HT	Anodised Aluminium	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	24 kg	187332	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 ALU G+D 1000W/12V 8-5/16"BBB-5/16"HT	Anodised Aluminium	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	20 kg	187333	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 CRO 800W/12V 8-5/16"BBB-5/16"HT	Chrome Plated	800 W	12 V	850 kg	115	110	26 m/min	35 m/min	21 kg	187332	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 CRO G+D 800W/12V 8-5/16"BBB-5/16"HT	Chrome Plated	800 W	12 V	850 kg	115	110	26 m/min	35 m/min	23 kg	187332	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 CRO G+D 1000W/12V 10 3/8 HT	Chrome Plated	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	24 kg	187333	With Drum	10 mm, ISO 4565	-
WINDLASS V. X2 CRO 1000W/12V 10 3/8 HT	Chrome Plated	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	23 kg	187333	Low Profile	10 mm, ISO 4565	-
WINDLASS V. X2 CRO G+D 1000W/12V 8-5/16"BBB-5/16"HT	Chrome Plated	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	24 kg	187333	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 CRO 1000W/12V 8-5/16"BBB-5/16"HT	Chrome Plated	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	23 kg	187333	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 CRO 1000W/24V 10DIN766	Chrome Plated	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	23 kg	187332	Low Profile	10 mm, DIN 766	-
WINDLASS V. X2 CRO G+D 1000W/24V 10DIN766	Chrome Plated	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	24 kg	187332	With Drum	10 mm, DIN 766	-
WINDLASS V. X2 CRO G+D 1000W/24V 8-5/16"BBB-5/16"HT	Chrome Plated	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	24 kg	187332	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 CRO 1000W/24V 10 3/8 HT	Chrome Plated	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	23 kg	187332	Low Profile	10 mm, ISO 4565	-
WINDLASS V. X2 ALU 1000W/12V 10 3/8 HT	Anodised Aluminium	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	19 kg	187332	Low Profile	10 mm, ISO 4565	-
WINDLASS V. X2 ALU G+D 800W/12V 6mm	Anodised Aluminium	800 W	12 V	850 kg	115	110	26 m/min	35 m/min	19 kg	187332	With Drum	6 mm, ISO 4565/DIN 766	-
WINDLASS V. X2 ALU 800W/12V 6mm	Anodised Aluminium	800 W	12 V	850 kg	115	110	26 m/min	35 m/min	18 kg	187332	Low Profile	6 mm, ISO 4565/DIN 766	-
WINDLASS V. X2 CRO G+D 800W/12V 6mm	Chrome Plated	800 W	12 V	850 kg	115	110	26 m/min	35 m/min	23 kg	187332	With Drum	6 mm, ISO 4565/DIN 766	-
WINDLASS V. X2 CRO 800W/12V 6mm	Chrome Plated	800 W	12 V	850 kg	115	110	26 m/min	35 m/min	21 kg	187332	Low Profile	6 mm, ISO 4565/DIN 766	-
WINDLASS V. X2 ALU G+D 1000W/12V 6mm	Anodised Aluminium	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	20 kg	187333	With Drum	6 mm, ISO 4565/DIN 766	-
WINDLASS V. X2 ALU 1000W/12V 6mm	Anodised Aluminium	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	19 kg	187333	Low Profile	6 mm, ISO 4565/DIN 766	-
WINDLASS V. X2 ALU G+D 1000W/12V 10 3/8 HT	Anodised Aluminium	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	20 kg	187333	With Drum	10 mm, ISO 4565	-
WINDLASS V. X2 CRO 1000W/24V 8-5/16"BBB-5/16"HT	Chrome Plated	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	23 kg	187332	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 ALU G+D 1500W/12V 10 3/8 HT	Anodised Aluminium	1500 W	12 V	1200 kg	165	130	17 m/min	40 m/min	25 kg	187333	With Drum	10 mm, ISO 4565	-
WINDLASS V. X2 ALU G+D 1500W/12V 8-5/16"BBB-5/16"HT	Anodised Aluminium	1500 W	12 V	1200 kg	165	130	17 m/min	40 m/min	25 kg	187333	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 ALU G+D 1500W/24V 10 3/8 HT	Anodised Aluminium	1500 W	24 V	1270 kg	175	65	19 m/min	40 m/min	25 kg	187332	With Drum	10 mm, ISO 4565	-
WINDLASS V. X2 ALU G+D 1500W/24V 8-5/16"BBB-5/16"HT	Anodised Aluminium	1500 W	24 V	1270 kg	175	65	19 m/min	40 m/min	25 kg	187332	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 CRO 1000W/12V 6mm	Chrome Plated	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	23 kg	187333	Low Profile	6 mm, ISO 4565/DIN 766	-
WINDLASS V. X2 CRO G+D 1000W/12V 6mm	Chrome Plated	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	24 kg	187333	With Drum	6 mm, ISO 4565/DIN 766	-
WINDLASS V. X2 CRO 1500W/12V 8-5/16BBB-5/16HT	Chrome Plated	1500 W	12 V	1200 kg	165	130	17 m/min	40 m/min	24 kg	187333	Low Profile	8 mm, ISO 4556/DIN 766	14 mm, 3-strand
WINDLASS V. X2 CRO 1500W/12V 10 3/8 HT	Chrome Plated	1500 W	12 V	1200 kg	165	130	17 m/min	40 m/min	24 kg	187333	Low Profile	10 mm, ISO 4565	-
WINDLASS V. X2 CRO G+D 1000W/24V 10 3/8 HT	Chrome Plated	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	24 kg	187332	With Drum	10 mm, ISO 4565	-
WINDLASS V. X2 CRO G+D 1500W/12V 10 3/8 HT	Chrome Plated	1500 W	12 V	1200 kg	165	130	17 m/min	40 m/min	25 kg	187332	With Drum	10 mm, ISO 4565	-
WINDLASS V. X2 CRO 1000W/24V 6mm	Chrome Plated	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	23 kg	187332	Low Profile	6 mm, ISO 4565/DIN 766	-
WINDLASS V. X2 CRO G+D 1000W/24V 6mm	Chrome Plated	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	24 kg	187332	With Drum	6 mm, ISO 4565/DIN 766	-
WINDLASS V. X2 CRO 1500W/24V 8-5/16"BBB-5/16"HT	Chrome Plated	1500 W	24 V	1270 kg	175	65	19 m/min	40 m/min	24 kg	187332	Low Profile	8 mm, ISO 4556/DIN 766	14 mm, 3-strand
WINDLASS V. X2 CRO 1500W/24V 10DIN766	Chrome Plated	1500 W	24 V	1270 kg	175	65	19 m/min	40 m/min	24 kg	187332	Low Profile	10 mm, DIN 766	-
WINDLASS V. X2 CRO G+D 1500W/24V 8-5/16"BBB-5/16"HT	Chrome Plated	1500 W	24 V	1270 kg	175	65	19 m/min	40 m/min	25 kg	-	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 CRO G+D 1500W/24V 10 3/8 HT	Chrome Plated	1500 W	24 V	1270 kg	175	65	19 m/min	40 m/min	25 kg	187332	With Drum	10 mm, ISO 4565	-
WINDLASS V. X2 ALU 1000W/12V 10DIN766	Anodised Αluminium	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	19 kg	-	Low Profile	10 mm, DIN 766	-
WINDLASS V. X2 ALU G+D 1000W/12V 10DIN766	Anodised Aluminium	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	20 kg	187333	With Drum	10 mm, DIN 766	-
WINDLASS V. X2 ALU 1500W/12V 8-5/16BBB-5/16HT	Anodised Aluminium	1500 W	12 V	1200 kg	165	130	17 m/min	40 m/min	24 kg	187333	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 ALU 1500W/12V 10 3/8 HT	Anodised Aluminium	1500 W	12 V	1200 kg	165	130	17 m/min	40 m/min	24 kg	187333	Low Profile	10 mm, ISO 4565	-
WINDLASS V. X2 ALU 1500W/12V 10DIN766	Anodised Aluminium	1500 W	12 V	1200 kg	165	130	17 m/min	40 m/min	24 kg	187333	Low Profile	10 mm, DIN 766	-
WINDLASS V. X2 ALU G+D 1500W/12V 10DIN766	Anodised Aluminium	1500 W	12 V	1200 kg	165	130	17 m/min	40 m/min	25 kg	187333	With Drum	10 mm, DIN 766	-
WINDLASS V. X2 ALU 1000W/24V 6mm	Anodised Aluminium	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	23 kg	187332	Low Profile	6 mm, ISO 4565/DIN 766	-
WINDLASS V. X2 ALU 1000W/24V 8-5/16BBB-5/16HT	Anodised Aluminium	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	23 kg	187332	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 ALU 1000W/24V 10 3/8 HT	Anodised Aluminium	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	23 kg	187332	Low Profile	10 mm, ISO 4565	-
WINDLASS V. X2 ALU 1000W/24V 10DIN766	Anodised Aluminium	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	23 kg	187332	Low Profile	10 mm, DIN 766	-
WINDLASS V. X2 ALU G+D 1000W/24V 6mm	Anodised Aluminium	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	24 kg	187332	With Drum	6 mm, ISO 4565/DIN 766	-
WINDLASS V. X2 ALU G+D 1000W/24V 10 3/8 HT	Anodised Aluminium	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	24 kg	187332	With Drum	10 mm, ISO 4565	-
WINDLASS V. X2 ALU G+D 1000W/24V 10DIN766	Anodised Aluminium	1000 W	24 V	1060 kg	160	59	23 m/min	40 m/min	24 kg	187332	With Drum	10 mm, DIN 766	-
WINDLASS V. X2 ALU 1500W/24V 8-5/16''BBB-5/16''HT	Anodised Aluminium	1500 W	24 V	1270 kg	175	65	19 m/min	40 m/min	24 kg	187332	Low Profile	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 ALU 1500W/24V 10 3/8 HT	Anodised Aluminium	1500 W	24 V	1270 kg	175	65	19 m/min	40 m/min	24 kg	187332	Low Profile	10 mm, ISO 4565	-
WINDLASS V. X2 ALU 1500W/24V 10DIN766	Anodised Aluminium	1500 W	24 V	1270 kg	175	65	19 m/min	40 m/min	24 kg	187332	Low Profile	10 mm, DIN 766	-
WINDLASS V. X2 ALU G+D 1500W/24V 10DIN766	Anodised Aluminium	1500 W	24 V	1270 kg	175	65	19 m/min	40 m/min	25 kg	187332	With Drum	10 mm, DIN 766	-
WINDLASS V. X2 CRO G+D 1000W/12V 10DIN766	Chrome Plated	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	24 kg	187333	With Drum	10 mm, DIN 766	-
WINDLASS V. X2 CRO 1000W/12V 10DIN766	Chrome Plated	1000 W	12 V	1000 kg	150	117	20 m/min	40 m/min	23 kg	187333	Low Profile	10 mm, DIN 766	-
WINDLASS V. X2 CRO G+D 1500W/12V 8-5/16"BBB-5/16"HT	Chrome Plated	1500 W	12 V	1200 kg	165	130	17 m/min	40 m/min	25 kg	-	With Drum	8 mm, ISO 4565/DIN 766	14 mm, 3-strand
WINDLASS V. X2 CRO 1500W/24V 10 3/8 HT	Chrome Plated	1500 W	24 V	1270 kg	175	65	19 m/min	40 m/min	24 kg	187332	Low Profile	10 mm, ISO 4565	-

The "X" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model.

The standard features that you can meet in every X series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Manual override so that the chain or rope can be recovered manually in case of electric function failure (800W chrome variant does not have the manual override function).

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.
