X1- Vertical Windlass Dark Version
Main Features
- With drum or low profile
- Independent gypsy and drum operation
- Rope and chain combination gypsy
- Manual chain release
- Chain & rope management by the spring loaded arm
- Chain counter magnet pre-installed as standard
- IP67 motor cover
- Marine anodised aluminium gearbox
Standard Equipment
- Dual direction solenoid pack
- Handle
- Gypsy for chain & rope
- QR code card for Instruction Manual
| Code | Description | Gypsy For Chain | Gypsy For Rope | Line Speed at W.L | Max Line Speed | Maximum Pull | Motor size | Net Weight | Power Supply | Working load (kg) | Type | Amps at Working Load (A) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
![[] WINDLASS V. X1 DARK 500W/12V 6-3/16BBB image](https://www.lofrans.com/images/items/itm_X1_Black_Low Profile.jpg)
|
WINDLASS V. X1 DARK 500W/12V 6-3/16BBB | 6 mm, ISO 4565/ DIN 766 | 10-12 mm, 3-strand | 23 m/min | 26 m/min | 630 kg | 500 W | 10 kg | 12 V | 95 kg | Low Profile | 60 |
|
|
WINDLASS V. X1 DARK 800W/12V 8-5/16BBB-5/16HT | 8 mm, ISO 4565/ DIN 766 | 12 mm, 3-strand | 25 m/min | 28 m/min | 700 kg | 800 W | 13 kg | 12 V | 100 kg | Low Profile | 110 |
|
|
WINDLASS V. X1 DARK 800W/12V 6-3/16BBB | 6 mm, ISO 4565/ DIN 766 | 10-12 mm, 3-strand | 25 m/min | 28 m/min | 700 kg | 800 W | 13 kg | 12 V | 100 kg | Low Profile | 110 |
|
|
WINDLASS V. X1 DARK 500W/12V 8-5/16BBB-5/16HT | 8 mm, ISO 4565/ DIN 766 | 12 mm, 3-strand | 23 m/min | 26 m/min | 630 kg | 500 W | 10 kg | 12 V | 95 kg | Low Profile | 60 |
|
|
WINDLASS V. X1 DARK 1000W/12V 8-5/16BBB-5/16HT | 8 mm, ISO 4565/ DIN 766 | 12 mm, 3-strand | 18 m/min | 30 m/min | 900 kg | 1000 W | 16 kg | 12 V | 125 kg | Low Profile | 125 |

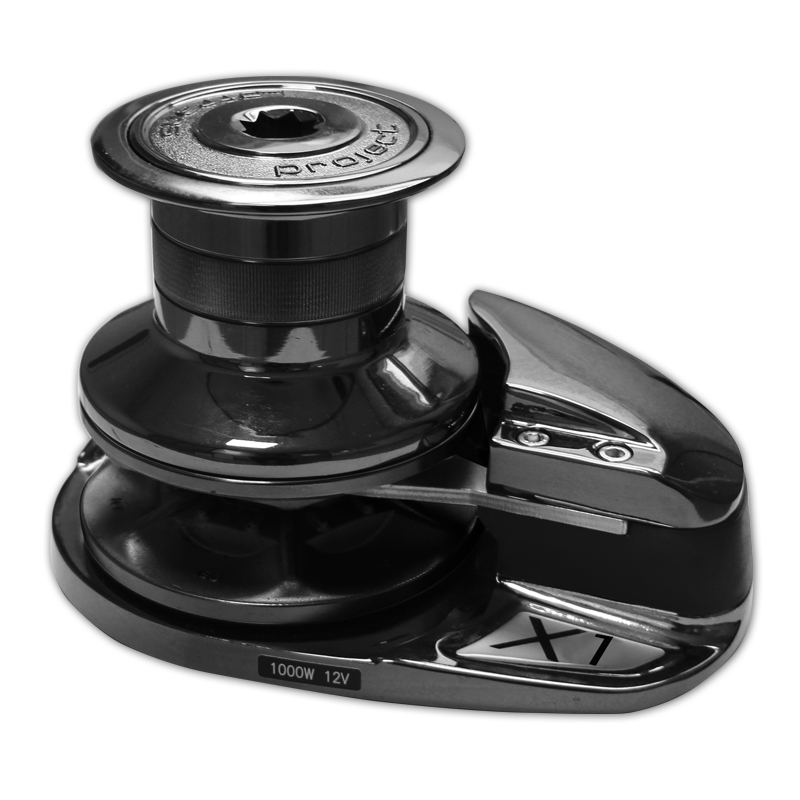

![[] WINDLASS V. X1 DARK G+D 800W/12V 8-5/16BBB-5/16HT image](https://www.lofrans.com/images/items/itm_X1_Black_With Drum.jpg)
|
WINDLASS V. X1 DARK G+D 800W/12V 8-5/16BBB-5/16HT | 8 mm, ISO 4565/ DIN 766 | 12 mm, 3-strand | 25 m/min | 28 m/min | 700 kg | 800 W | 14 kg | 12 V | 100 kg | With Drum | 110 |
Product Brochure
