X1 - Vertical Windlass

Place Order

[11857] Lofrans' Winch Handle, Anodised Aluminium, with lock and speed handle, 20cm, Black

[72907] Lofrans' Floating Winch Handle, 25cm

[11857] Lofrans' Winch Handle, Anodised Aluminium, with lock and speed handle, 20cm, Black

[72907] Lofrans' Floating Winch Handle, 25cm

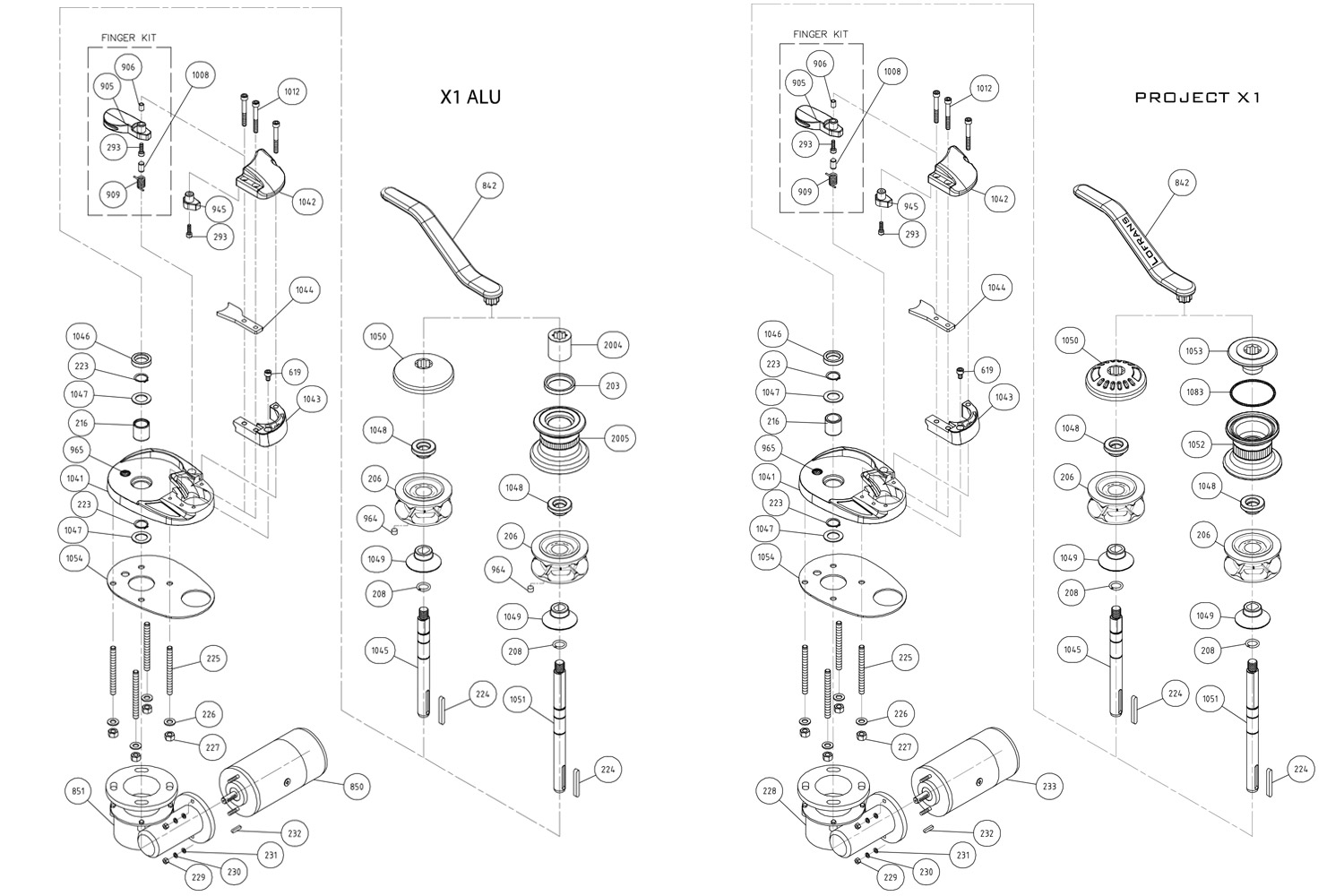

[198007] SUPPORT STRIPPER X1 #1043

[474023] KIT F FINGER X2

[474053] KIT S SENSOR&MAGNET X1/X2/X3

[601330] KIT STUD M8X58 #225A

[630679] MAIN SHAFT X1 #1051A

[630680] MAIN SHAFT X1 #1045A

[630839] Ring DIN 17224 #208, Material:X12CrNi177, d=16,5mm, width=2 mm

[630970] LOFRANS GYPSY X0/X1/X1ALU 6mmISO4565/DIN766 #206B

[630980] LOFRANS GYPSY X1/X1ALU 7mmISO-1/4" G40 #206C

[630999] LOFRANS GYPSY X1 8mmISO4565/DIN766 #206D

[630970] LOFRANS GYPSY X0/X1/X1ALU 6mmISO4565/DIN766 #206B

[630974] GYPSY Dorado 6mmISO4565/DIN766 #206A

[630980] LOFRANS GYPSY X1/X1ALU 7mmISO-1/4" G40 #206C

[630984] LOFRANS GYPSY Dorado 7mmISO-1/4" G40 #206F

[630999] LOFRANS GYPSY X1 8mmISO4565/DIN766 #206D

[631003] LOFRANS GYPSY Dorado 8mmISO4565/DIN766 #206E

[630970] LOFRANS GYPSY X0/X1/X1ALU 6mmISO4565/DIN766 #206B

[630974] GYPSY Dorado 6mmISO4565/DIN766 #206A

[630980] LOFRANS GYPSY X1/X1ALU 7mmISO-1/4" G40 #206C

[630984] LOFRANS GYPSY Dorado 7mmISO-1/4" G40 #206F

[630999] LOFRANS GYPSY X1 8mmISO4565/DIN766 #206D

[631003] LOFRANS GYPSY Dorado 8mmISO4565/DIN766 #206E

[630970] LOFRANS GYPSY X0/X1/X1ALU 6mmISO4565/DIN766 #206B

[630980] LOFRANS GYPSY X1/X1ALU 7mmISO-1/4" G40 #206C

[630999] LOFRANS GYPSY X1 8mmISO4565/DIN766 #206D

[631206] BASE X1 #1041A CRO STB

[631210] BASE X1 #1041B ALU STB

[631307] BUSH X1 #216

[631375] CAP CHAIN X1 #1042A CRO

[631377] CAP CHAIN X1 ALU #1042B

[631445] DRUM X1 #1052A CRO

[631449] DRUM X1 #2005 ALU

[631828] Cone Clutch X1 #1049

[631829] Cone Clutch X1 #1048

[633247] SEAL X1 #1054

[634390] Lofrans Motor Dorado/Marlin/X1 700W/12V #233D

[634818] GEARBOX X1 #228 STB

[634830] Washer X1 #1047

[635274] STRIPPER X1 #1044

[635469] GYPSY CAP X1 #1050 CRO

[635471] CLUTCH NUT X1 #1053 CRO

[635475] CLUTCH NUT X1 #2004 CRO

[72037] MAINTENANCE KIT X1

Main Features

Standard Equipment:

Dual direction solenoid pack
Handle
Gypsy for chain
CD / Instruction manual

Get in touch

Description	Construction	Motor size	Power Supply	Maximum Pull	Working load (kg)	Amps at Working Load (A)	Line Speed at W.L	Max Line Speed	Net Weight	Circuit Breaker	Type	Gypsy For Chain	Gypsy For Rope
WINDLASS V. X1 CRO 500W/12V 8-5/16"BBB-5/16"HT"	Chrome Plated	500 W	12 V	630 kg	95	60	23 m/min	26 m/min	11 kg	187331	Low Profile	8 mm, ISO 4565/DIN 766	12 mm, 3-strand

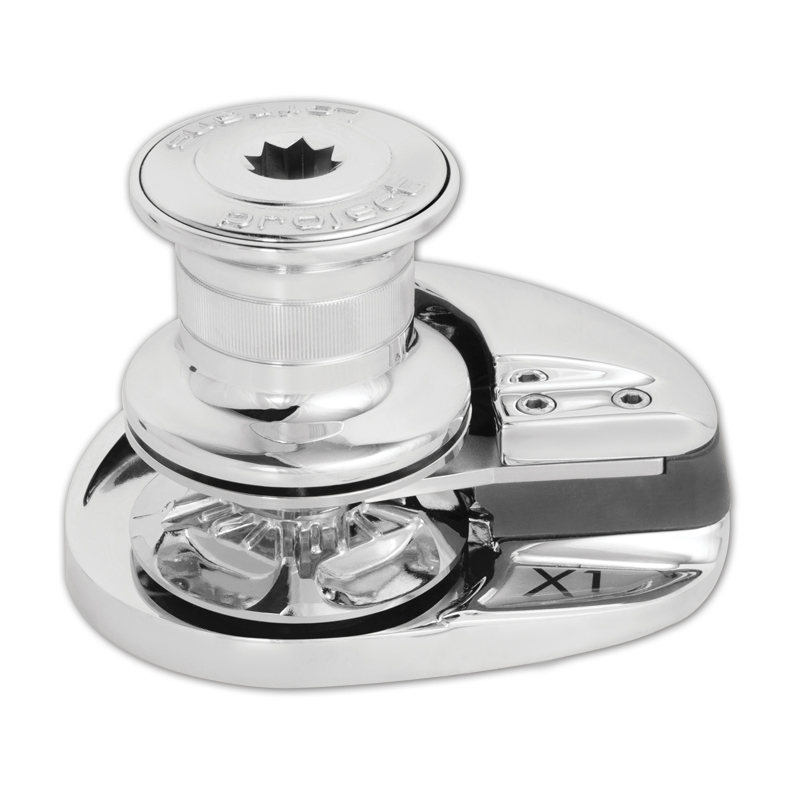

WINDLASS V. X1 CRO G+D 500W/12V 8-5/16"BBB-5/16"HT	Chrome Plated	500 W	12 V	630 kg	95	60	23 m/min	26 m/min	12 kg	187331	With Drum	8 mm, ISO 4565/DIN 766	12 mm, 3-strand
WINDLASS V. X1 ALU 500W/12V 6-3/16"BBB	Anodised Aluminium	500 W	12 V	630 kg	95	60	23 m/min	26 m/min	10 kg	187331	Low Profile	6 mm, ISO 4565/DIN 766	10-12 mm, 3-strand
WINDLASS V. X1 ALU G+D 500W/12V 6-3/16"BBB	Anodised Aluminium	500 W	12 V	630 kg	95	60	23 m/min	26 m/min	11 kg	187331	With Drum	6 mm, ISO 4565/DIN 766	10-12 mm, 3-strand
WINDLASS V. X1 CRO 500W/12V 6-3/16"BBB	Chrome Plated	500 W	12 V	630 kg	95	60	23 m/min	26 m/min	11 kg	187331	Low Profile	6 mm, ISO 4565/DIN 766	10-12 mm, 3-strand
WINDLASS V. X1 CRO G+D 500W/12V 6-3/16"BBB	Chrome Plated	500 W	12 V	630 kg	95	60	23 m/min	26 m/min	12 kg	187331	With Drum	6 mm, ISO 4565/DIN 766	10-12 mm, 3-strand
WINDLASS V. X1 CRO 800W/12V 8-5/16"BBB-5/16"HT	Chrome Plated	800 W	12 V	700 kg	100	110	25 m/min	28 m/min	13 kg	187332	Low Profile	8 mm, ISO 4565/DIN 766	12 mm, 3-strand
WINDLASS V. X1 CRO G+D 800W/12V 8-5/16"BBB-5/16"HT	Chrome Plated	800 W	12 V	700 kg	100	110	25 m/min	28 m/min	14 kg	187332	With Drum	8 mm, ISO 4565/DIN 766	12 mm, 3-strand
WINDLASS V. X1 CRO G+D 800W/12V 6-3/16"BBB	Chrome Plated	800 W	12 V	700 kg	100	110	25 m/min	28 m/min	14 kg	187332	With Drum	6 mm, ISO 4565/DIN 766	10-12 mm, 3-strand
WINDLASS V. X1 CRO 800W/12V 6-3/16"BBB	Chrome Plated	800 W	12 V	700 kg	100	110	25 m/min	28 m/min	13 kg	187332	Low Profile	6 mm, ISO 4565/DIN 766	10-12 mm, 3-strand
WINDLASS V. X1 ALU 500W/12V 8-5/16 BBB-5/16 HT	Anodised Aluminium	500 W	12 V	630 kg	95	60	23 m/min	26 m/min	10 kg	187331	Low Profile	8 mm, ISO 4565/DIN 766	12 mm, 3-strand
WINDLASS V. X1 CRO G+D 1000W/12V 8-5/16"BBB-5/16"HT	Chrome Plated	1000 W	12 V	900 kg	125	125	18 m/min	30 m/min	17 kg	187333	With Drum	8 mm, ISO 4565/DIN 766	12 mm, 3-strand
WINDLASS V. X1 CRO 1000W/12V 8-5/16"BBB-5/16"HT	Chrome Plated	1000 W	12 V	900 kg	125	125	18 m/min	30 m/min	16 kg	187333	Low Profile	8 mm, ISO 4565/DIN 766	12 mm, 3-strand
WINDLASS V. X1 ALU G+D 500W/12V 8-5/16 BBB-5/16 HT	Anodised Aluminium	500 W	12 V	630 kg	95	60	23 m/min	26 m/min	11 kg	187331	With Drum	8 mm, ISO 4565/DIN 766	12 mm, 3-strand
WINDLASS V. X1 ALU 800W/12V 6-3/16 BBB	Anodised Aluminium	800 W	12 V	700 kg	100	110	25 m/min	28 m/min	13 kg	187332	Low Profile	6 mm, ISO 4565/DIN 766	10-12 mm, 3-strand
WINDLASS V. X1 ALU 800W/12V 8-5/16 BBB-5/16 HT	Anodised Aluminium	800 W	12 V	700 kg	100	110	25 m/min	28 m/min	13 kg	187332	Low Profile	8 mm, ISO 4565/DIN 766	12 mm, 3-strand
WINDLASS V. X1 ALU G+D 800W/12V 6-3/16 BBB	Anodised Aluminium	800 W	12 V	700 kg	100	110	25 m/min	28 m/min	13 kg	187332	With Drum	6 mm, ISO 4565/DIN 766	10-12 mm, 3-strand
WINDLASS V. X1 ALU G+D 800W/12V 8-5/16 BBB-5/16 HT	Anodised Aluminium	800 W	12 V	700 kg	100	110	25 m/min	28 m/min	14 kg	187332	With Drum	8 mm, ISO 4565/DIN 766	12 mm, 3-strand

The "X" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model. For the X2 windlass and X3 windlass there is a Plus version of stainless steel AISI 316L mirror polishing which offers a stronger protection against corrosion.

The standard features that you can meet in every X series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Manual override so that the chain or rope can be recovered manually in case of electric function failure (this feature is not available in the X1 model).

Windlass Models / Technical Information

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.
