TENDER CAPSTAN ALU 1000W/24V
|
• Designed to recover a small tender or a jet ski • Marine anodised aluminium construction • Heavy-duty electric motor and gearbox • IP67-rated motor cover with high protection from humidity & sea water • Strong aluminium drum able to contain the necessary belt • The drum is driven by using a high torque worm gear box with the gear case made in black marine anodised aluminium • The gears are made of bronze and steel in order to withstand the high stress during the intensive use • Wall-mounted installation |
|
|
| Code | Description | Motor size | Power Supply | Maximum Pull | Working load (kg) | Amps at Working Load (A) | Line Speed at W.L | Max Line Speed | Net Weight with Drum (kg) |
|---|---|---|---|---|---|---|---|---|---|

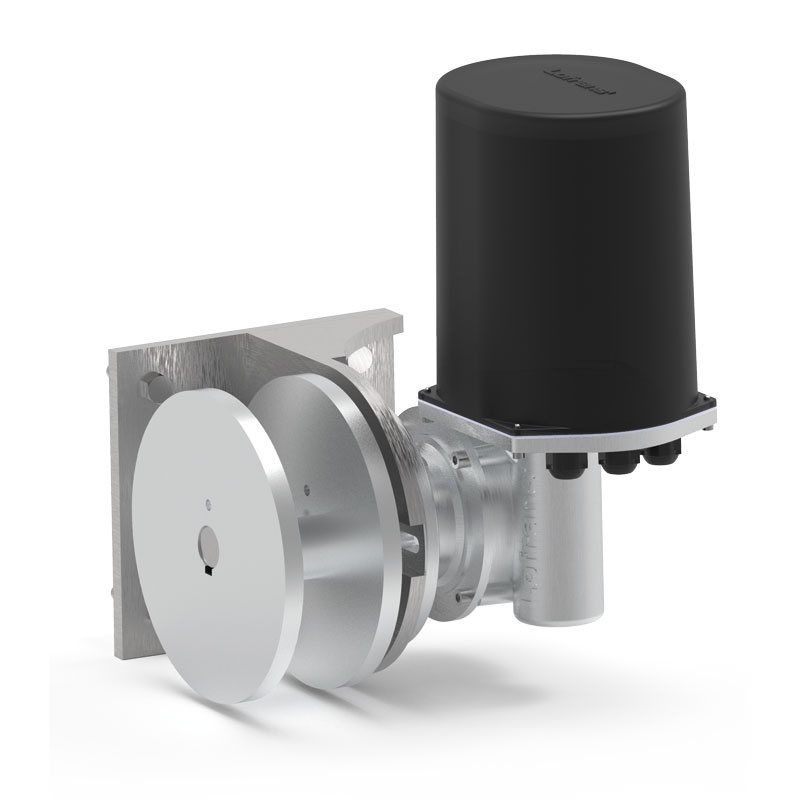

![[] TENDER CAPSTAN ALU 1000W/24V image](https://www.lofrans.com/images/items/itm_601004.jpg)
|
TENDER CAPSTAN ALU 1000W/24V | 1000 W | 12 V | 24 V | 1060 kg | 200 kg | 135 | 70 | 23 m/min | 40 m/min | 9-10 kg |
3D Models
