SX7 - Vertical Windlass

The brand new Lofrans’ SX7 is the ideal option for the popular range of Mega Yachts of 80 -120 ft.


It combines top performance, absolute safety and style, while it is suitable for chains of 12-14 mm.


As all Lofrans’ windlasses, the SX7 is made of marine grade materials for extra mechanical strength and in order to withstand the marine environment.


Main features:

  • Luxury stainless steel base and drum
  • Independent gypsy and drum operation
  • Manual chain release
  • Chain counter magnet pre-installed as standard
  • Anodised gearbox suitable for marine use
  • Available DC, AC and hydraulic motors
  • Chain pipe included in the package
Get in touch
Code Description Motor size Power Supply Maximum Pull Line Speed at W.L Max Line Speed Circuit Breaker Hydraulic Pressure Hydraulic Flow Type Gypsy For Chain Amps Work Load (A) Net Weight with Drum (kg) Working load (kg) Control Box

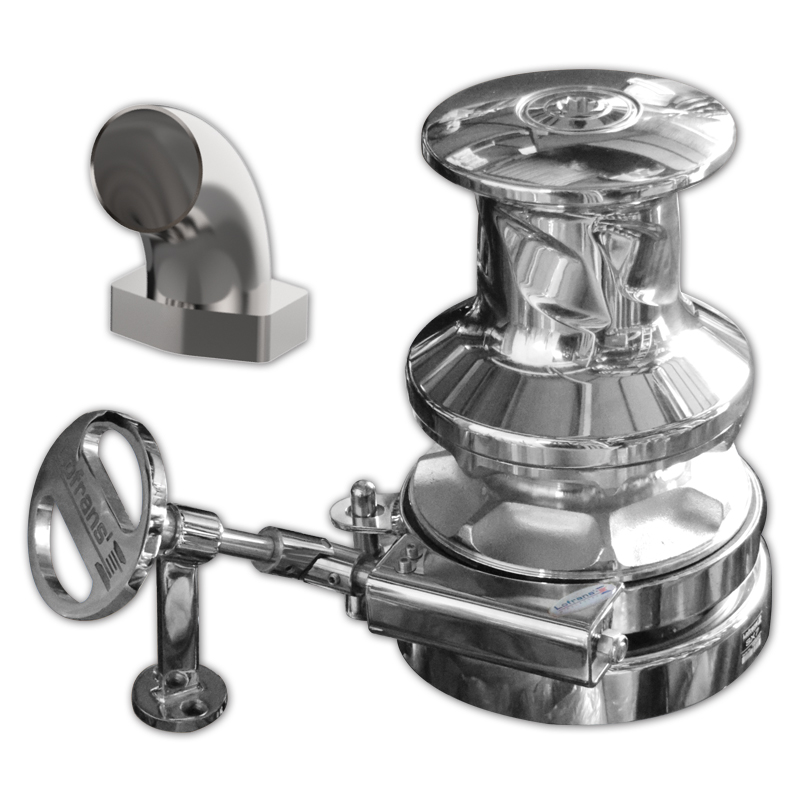

[] WINDLASS V. SX7 S/S G+D 3500W/24V 12-13DIN766 image
WINDLASS V. SX7 S/S G+D 3500W/24V 12-13DIN766 3500 W 24 V 4500 kg 13 m/min 20 m/min Yes (available separately) - - With Drum (cw) 12mm, ISO 4565 / 13mm, DIN 766 200 160 825 Included in the package
[] WINDLASS V. SX7 S/S G+D R. 3500W/24V 12-13DIN766 image
WINDLASS V. SX7 S/S G+D R. 3500W/24V 12-13DIN766 3500 W 24 V 4500 kg 13 m/min 20 m/min Yes (available separately) - - With Drum (ccw) 12mm, ISO 4565 / 13mm, DIN 766 200 160 825 Included in the package
[] WINDLASS V. SX7 S/S G+D 3500W/24V 14mm image
WINDLASS V. SX7 S/S G+D 3500W/24V 14mm 3500 W 24 V 4500 kg 13 m/min 20 m/min Yes (available separately) - - With Drum (cw) 14 mm 200 160 825 Included in the package
[] WINDLASS V. SX7 S/S G+D R. 3500W/24V 14mm image
WINDLASS V. SX7 S/S G+D R. 3500W/24V 14mm 3500 W 24 V 4500 kg 13 m/min 20 m/min Yes (available separately) - - With Drum (ccw) 14 mm 200 160 825 Included in the package
[] WINDLASS V. SX7 S/S G+D 4000W/400V 12-13DIN766 image
WINDLASS V. SX7 S/S G+D 4000W/400V 12-13DIN766 4000 W 400 V 4500 kg 13 m/min 13 m/min - - - With Drum (cw) 12mm, ISO 4565 / 13mm, DIN 766 - 160 850 Included in the package
[] WINDLASS V. SX7 S/S G+D R. 4000W/400V 12-13DIN766 image
WINDLASS V. SX7 S/S G+D R. 4000W/400V 12-13DIN766 4000 W 400 V 4500 kg 13 m/min 13 m/min - - - With Drum (ccw) 12mm, ISO 4565 / 13mm, DIN 766 - 160 850 Included in the package
[] WINDLASS V. SX7 S/S G+D 4000W/400V 14mm image
WINDLASS V. SX7 S/S G+D 4000W/400V 14mm 4000 W 400 V 4500 kg 13 m/min 13 m/min - - - With Drum (cw) 14 mm - 160 850 Included in the package
[] WINDLASS V. SX7 S/S G+D R. 4000W/400V 14mm image
WINDLASS V. SX7 S/S G+D R. 4000W/400V 14mm 4000 W 400 V 4500 kg 13 m/min 13 m/min - - - With Drum (ccw) 14 mm - 160 850 Included in the package
[] WINDLASS V. SX7 S/S G+D 8cc HYD 14mm CW image
WINDLASS V. SX7 S/S G+D 8cc HYD 14mm CW Hydraulic - 8cc - 5000 kg 13 m/min 13 m/min - 200 32 With Drum (cw) 14 mm - 145 1000 -
[] WINDLASS V. SX7 S/S G+D 8cc HYD 14mm CCW image
WINDLASS V. SX7 S/S G+D 8cc HYD 14mm CCW Hydraulic - 8cc - 5000 kg 13 m/min 13 m/min - 200 32 With Drum (ccw) 14 mm - 145 1000 -
[] WINDLASS V. SX7 S/S G+D 8cc HYD 12 ISO-13 DIN 766 CW image
WINDLASS V. SX7 S/S G+D 8cc HYD 12 ISO-13 DIN 766 CW Hydraulic - 8cc - 5000 kg 13 m/min 13 m/min - 200 32 With Drum (cw) 12mm, ISO 4565 / 13mm, DIN 766 - 145 1000 -
[] WINDLASS V. SX7 S/S G+D 8cc HYD 12 ISO-13 DIN 766 CCW image
WINDLASS V. SX7 S/S G+D 8cc HYD 12 ISO-13 DIN 766 CCW Hydraulic - 8cc - 5000 kg 13 m/min 13 m/min - 200 32 With Drum (ccw) 12mm, ISO 4565 / 13mm, DIN 766 - 145 1000 -
Technical Information
Deck Templates
3D Models
Product Brochure
Manuals

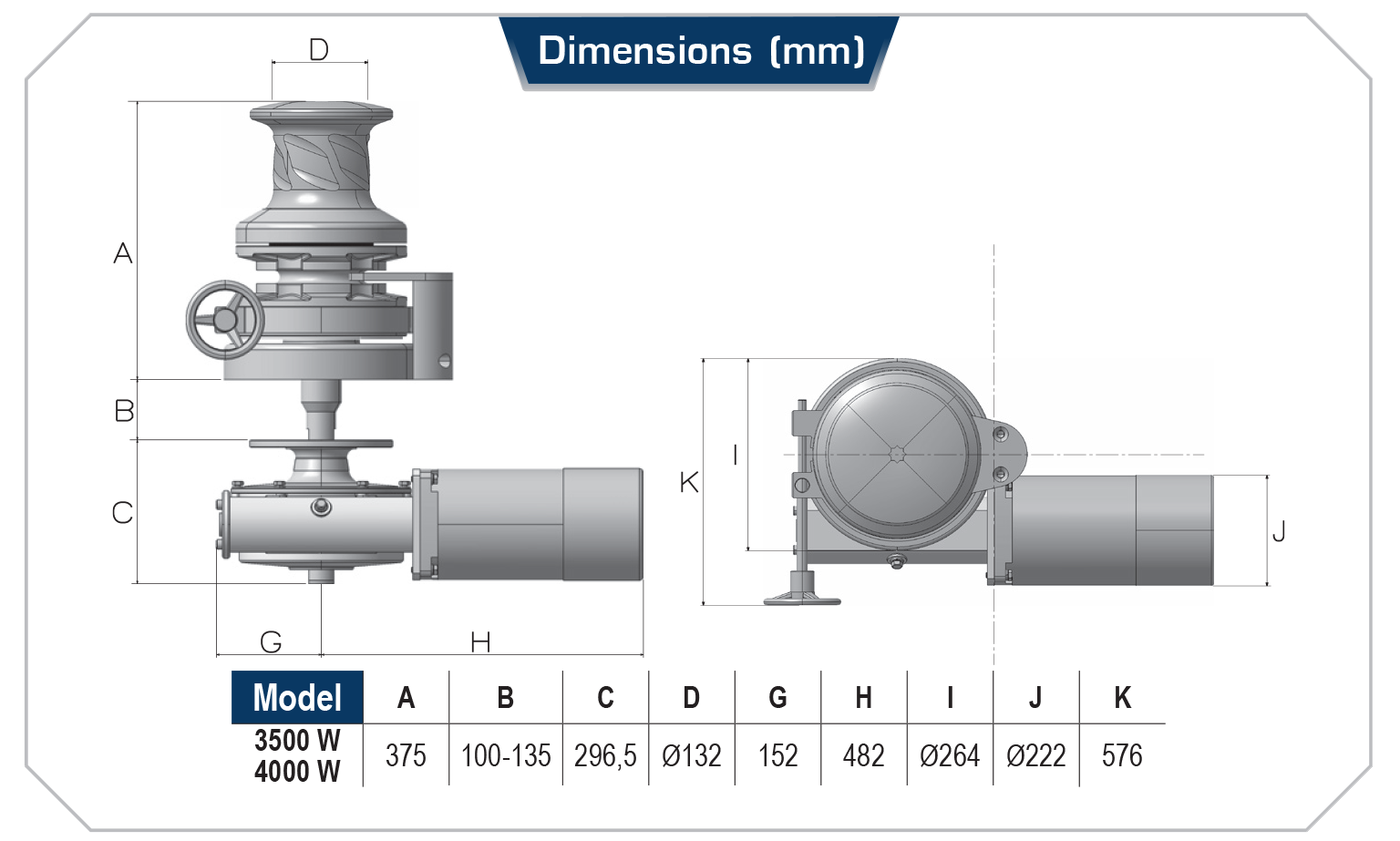

Sx7 updated dimensions
