SX5 - Vertical Windlass

Place Order

[601284] KIT SPRING ERCOLE V. #582 BEVEL TYPE

[601379] KIT STUD M10X140 #389A

[630822] SHAFT STD SX5 #2053

[631042] LOFRANS GYPSY SX5/SX7 12-13DIN766 #1248

[631065] LOFRANS GYPSY Ercole(H&V)/S.Ercole/SX5/SX7 14mm#574D

[631222] Base SX5 #1265

[631408] BRAKE COVER ERCOLE V. #642

[631458] Drum SX5 INOX #1272

[631517] BRACKET X4 #877

[631535] Wormwheel X4-SX5 M=2,25 Z=84 #876

[631654] GEARCASE X4 #878 ALU

[631748] BEARING 6011 2Z #671

[631753] BEARING 6206 2Z #453

[631761] BEARING 16010 #396

[631767] BEARING 51108 #632A

[631839] CONE CLUTCH UPPER SX5 #1247

[631873] CONE CLUTCH ERCOLE V. #583

[631924] SPACER X4 #883

[632087] FLANGE X4 #874

[632141] FLANGE X4 #880

[632157] FLANGE TITAN #413

[632158] FLANGE X4 #881

[632177] BRAKE ERCOLE H. #575

[633241] COUPLING TITAN #679 AC MOTOR

[633426] SIGHTGLASS TIGRES #407

[633491] AC MOTOR TITAN #680C 415V 2,2KW

[633504] MOTORE ELETTRICO 3000W 24V-4M #1256

[633541] SPRING ERCOLE V. #577

[634618] Pivot Ercole H. #576

[634623] Brake pivot bracket Ercole vertical #586 inox

[634628] BRAKE PIVOT WHEEL ERCOLE V. INOX #578

[635053] KIT A SEALS SX5

[635056] KIT B SCREWS SX5

[635078] KIT C PINS SX5

[635091] KIT D CIRCLIPS SX5

[635345] SUPPORT BRAKE PIVOT ERCOLE V. #585

[635444] OIL PLUG TC0 3/8

[635494] CLUTCH NUT ERCOLE V. #567A CRO

[635508] HAND WHEEL ERCOLE H. #579 CRO

[635696] VITE SENZA FINE X5 M=2.25 Z=84 #1261

Main features:

Luxury stainless steel base and drum
Independent gypsy and drum operation
Manual chain release
Manual override
Chain counter magnet pre-installed as standard
Anodised marine aluminium gearbox
Heavy-duty electric motor
Chain pipe available as an option

Standard Equipment:

Dual direction solenoid pack
Handle
Gypsy for chain
CD / Instruction manual
Chain pipe also available as an option, code 636314

Get in touch

Description	Amps at Working Load (A)	Gypsy For Chain	Hydraulic Flow	Hydraulic Pressure	Line Speed at W.L	Max Line Speed	Maximum Pull	Motor size	Net Weight	Power Supply	Type	Working load (kg)

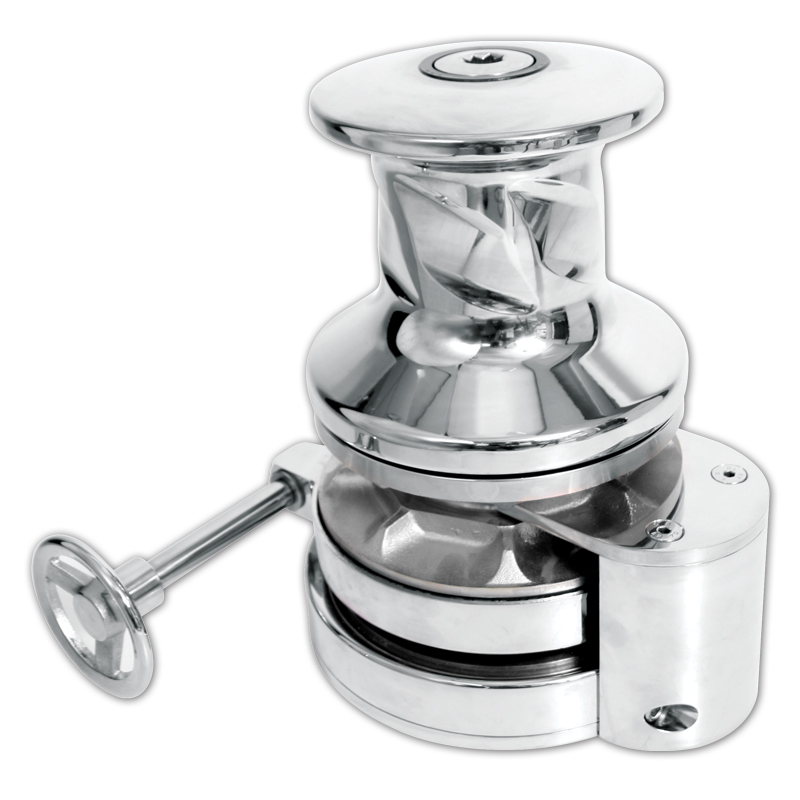

WINDLASS V. SX5 S/S G+D 3000W/24V 12-13DIN766	210	12 mm, ISO 4565 / 13 mm, DIN 766	-	-	17 m/min	33 m/min	2800 kg	3000 W	100 kg	24 V	With Drum	760
WINDLASS V. SX5 S/S G+D 3000W/24V 14mm	210	14 mm	-	-	17 m/min	33 m/min	2800 kg	3000 W	100 kg	24 V	With Drum	760
WINDLASS V. SX5 S/S G+D HYD/ 12-13DIN766	-	12 mm, ISO 4565 / 13 mm, DIN 766	32 lt/min	200 bar	21 m/min	21 m/min	2500 kg	Hydraulic-8cc	85 kg	-	With Drum	680
WINDLASS V. SX5 S/S G+D CW HYD/ 14mm	-	14 mm	32 lt/min	200 bar	21 m/min	21 m/min	2500 kg	Hydraulic-8cc	85 kg	-	With Drum	680
WINDLASS V. SX5 S/S G+D CCW HYD/ 14mm	-	14 mm	32 lt/min	200 bar	21 m/min	21 m/min	2500 kg	Hydraulic-8cc	85 kg	-	With Drum	680

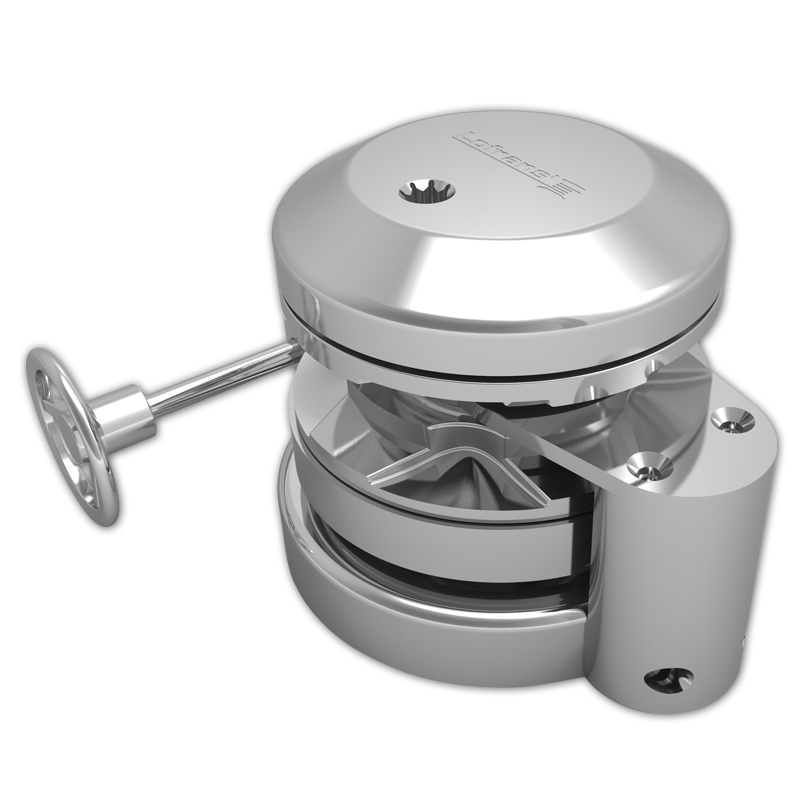

WINDLASS V. SX5 INOX ROUND CLOCKWISE 3000W/24V 12-13 DIN 766	210	12 mm, ISO 4565 / 13 mm, DIN 766	-	-	17 m/min	33 m/min	2800 kg	3000 W	100 kg	24 V	Low Profile	760
WINDLASS V. SX5 S/S G+D R 3000W/24V 14mm	210	14 mm	-	-	17 m/min	33 m/min	2800 kg	3000 W	100 kg	24 V	With Drum (ccw)	760

The standard features that you can meet in every SX series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Compact round base design constructed with Marine AISI 316L Stainless Steel

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.
