SX4 - Vertical Windlass

Place Order

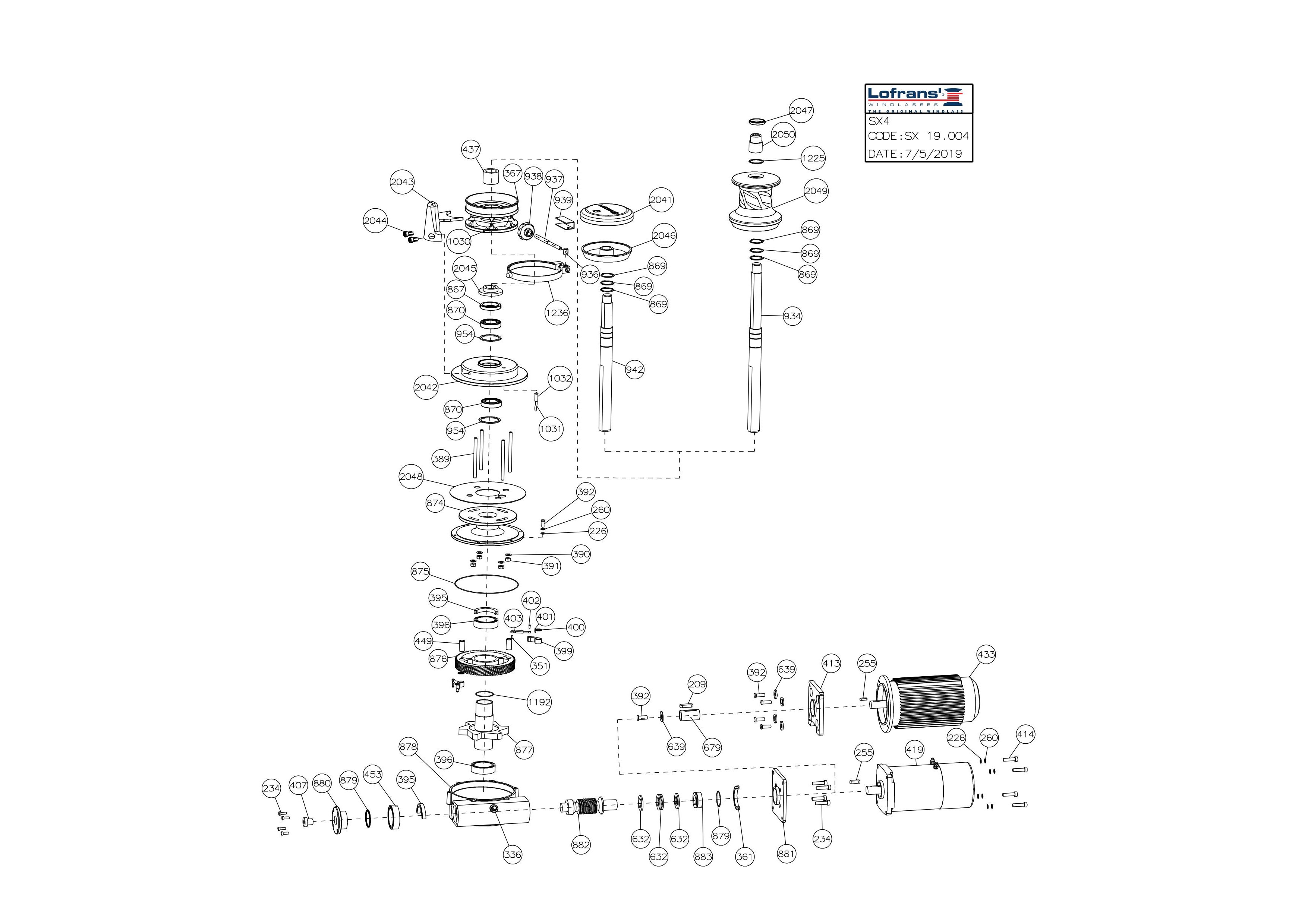

[600033] KIT S SENSOR&MAGNET X4

[630669] MAIN SHAFT X4 #934A

[631403] BRAKE COVER FALKON #507A CRO

[631517] BRACKET X4 #877

[631535] Wormwheel X4-SX5 M=2,25 Z=84 #876

[631654] GEARCASE X4 #878 ALU

[631745] BEARING 6008 2RS #870

[631753] BEARING 6206 2Z #453

[631761] BEARING 16010 #396

[631924] SPACER X4 #883

[632087] FLANGE X4 #874

[632141] FLANGE X4 #880

[632158] FLANGE X4 #881

[632171] BREAK SX3.5 #1236

[633298] HYDRAULIC MOTOR KM20-8 R049S1 LEA/EA-N #433

[633429] KNOB X4 #938

[633502] Lofrans Motor Titan 2300W/24V #419

[633503] Lofrans Motor X4 2700W/24V #433

[634871] Washer DIN125 M8 A4

[635285] Stripper Assembly SX3.5 #1229

[636665] STRIPPER SX4 AISI 316 BRAKE DOWN

[635328] PAWL X4 #399

[635696] VITE SENZA FINE X5 M=2.25 Z=84 #1261

[636355] BASE SX4 #2042/2048

[636365] GYPSY CAP SX4 #2041

[636405] Clutch nut SX4 #2050 CW

[636413] Internal Cone Clutch for SX4 #2045

[636429] Drum SX4 INOX #2049

[636510] Coupling for hydraulic motor X4-SX4 #679

[636536] Outer Cone Clutch SX4

[636573] Lofrans' GYPSY SX3.5 12-13DIN766 #367D INOX

Main features:

Compact round base design
Marine AISI 316L stainless steel construction
With drum or low profile
Independent gypsy and drum operation
Manual chain release
Chain counter magnet pre-installed as standard
Ηeavy-duty electric motor
Anodised marine aluminium gearbox
Chain pipe available as an option

Standard Equipment:

Dual direction solenoid pack
Handle
Gypsy for chain
CD / Instruction manual
Chain pipe also available as an option, code 636313

Get in touch

Description	Motor size	Power Supply	Maximum Pull	Working load (kg)	Line Speed at W.L	Max Line Speed	Net Weight with Low Profile (kg)	Circuit Breaker	Hydraulic Pressure	Hydraulic Flow	Type	Gypsy For Chain	Pull Type	Amps Work Load (A)	Net Weight with Drum (kg)

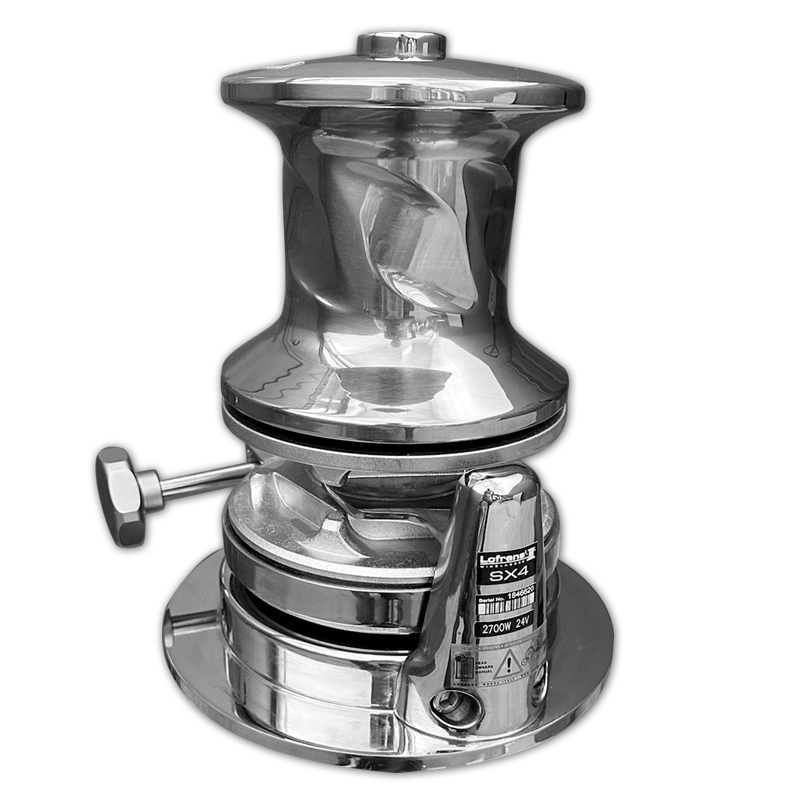

WINDLASS V. SX4 INOX ROUND G+D 2300W/24V 12-13DIN766	2300 W	24 V	2100 kg	500	13 m/min	25 m/min	72	-	-	-	With Drum	12 mm, ISO 4565/ 13 mm, DIN 766	CW	160	82
WINDLASS V. SX4 INOX ROUND G+D 2700W/24V 12-13DIN766	2700 W	24 V	2500 kg	530	13 m/min	28 m/min	75	-	-	-	With Drum	12 mm, ISO 4565/ 13 mm, DIN 766	CW	170	85

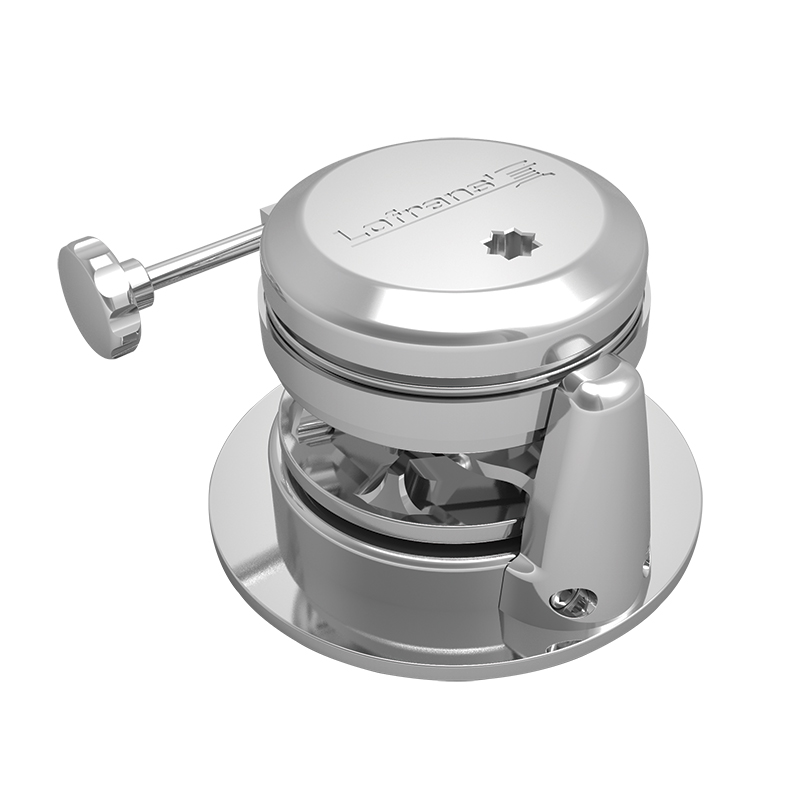

WINDLASS V. SX4 INOX ROUND 2300W/24V 12-13DIN766	2300 W	24 V	2100 kg	500	13 m/min	25 m/min	72	-	-	-	Low Profile	12 mm, ISO 4565/ 13 mm, DIN 766	CW	160	82
WINDLASS V. SX4 INOX ROUND 2700W/24V 12-13DIN766	2700 W	24 V	2500 kg	530	13 m/min	28 m/min	75	-	-	-	Low Profile	12 mm, ISO 4565/ 13 mm, DIN 766	CW	170	85
WINDLASS V. SX4 INOX ROUND HYD 12-13DIN766	Hydraulic - 8cc	-	2500 kg	650	16 m/min	16 m/min	55	-	200	32	Low Profile	12 mm, ISO 4565/ 13 mm, DIN 766	CW	-	60
WINDLASS V. SX4 INOX ROUND G+D HYD 12-13DIN766	Hydraulic - 8cc	-	2500 kg	650	16 m/min	16 m/min	55	-	200	32	With Drum	12 mm, ISO 4565/ 13 mm, DIN 766	CW	-	60
WINDLASS V. SX4 INOX ROUND G+D 2700W/24V CW 14mm	2700 W	24 V	2500 kg	530	13 m/min	28 m/min	75	-	-	-	With Drum	14 mm	CW	170	85
WINDLASS V. SX4 INOX ROUND R. 2700W/24V 12-13DIN766	2700 W	24 V	2500 kg	530	13 m/min	28 m/min	75	636091	-	-	Low Profile	12 mm, ISO 4565/ 13 mm, DIN 766	CCW	170	75
WINDLASS V. SX4 INOX ROUND R. HYD 12-13DIN766	Hydraulic - 8cc	-	2500 kg	650	16 m/min	16 m/min	55	-	200	32	Low Profile	12 mm, ISO 4565/ 13 mm, DIN 766	CCW	-	55

The standard features that you can meet in every SX series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Compact round base design constructed with Marine AISI 316L Stainless Steel

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

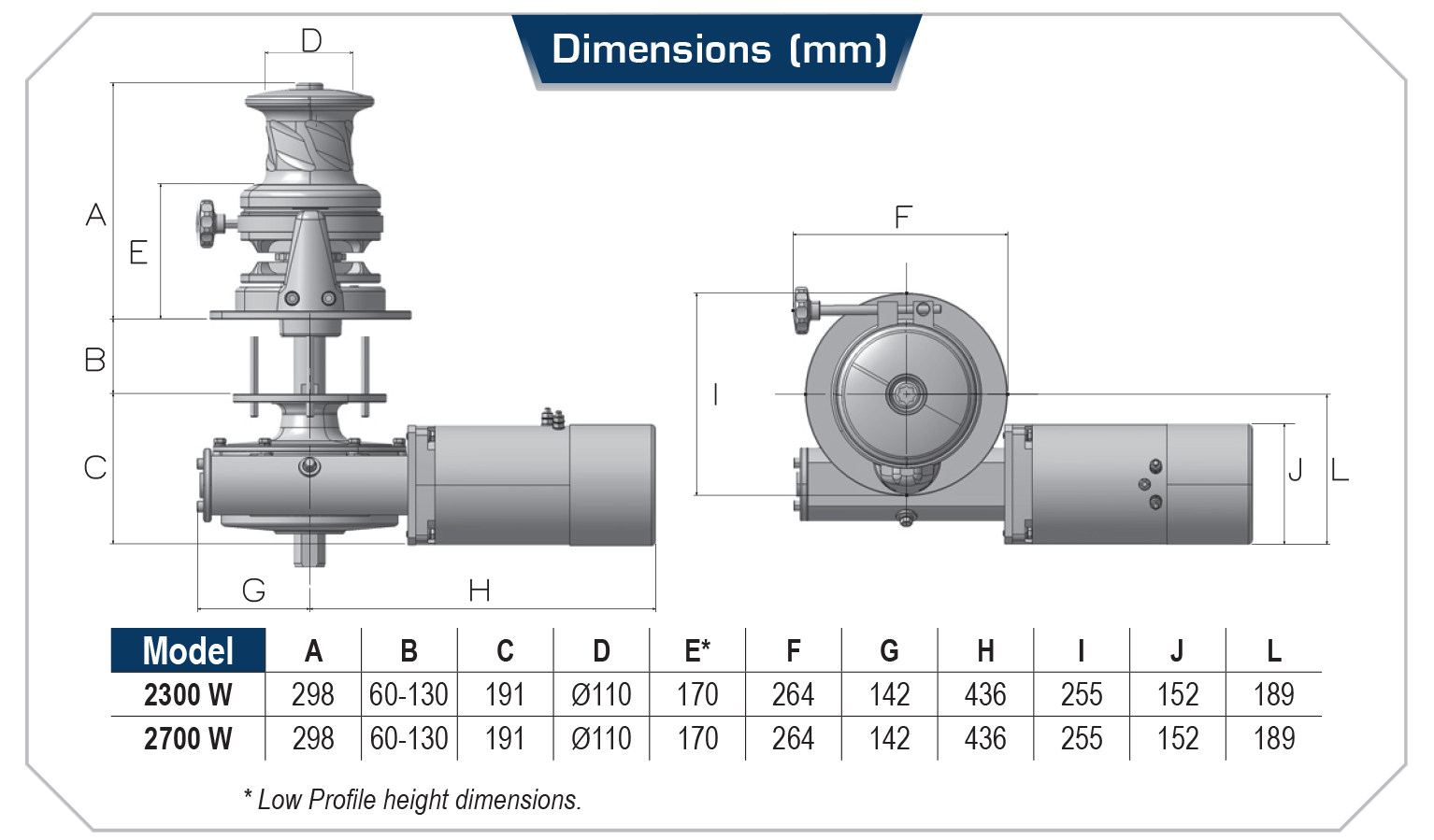

Technical Information
