SX3 - Vertical Windlass

Place Order

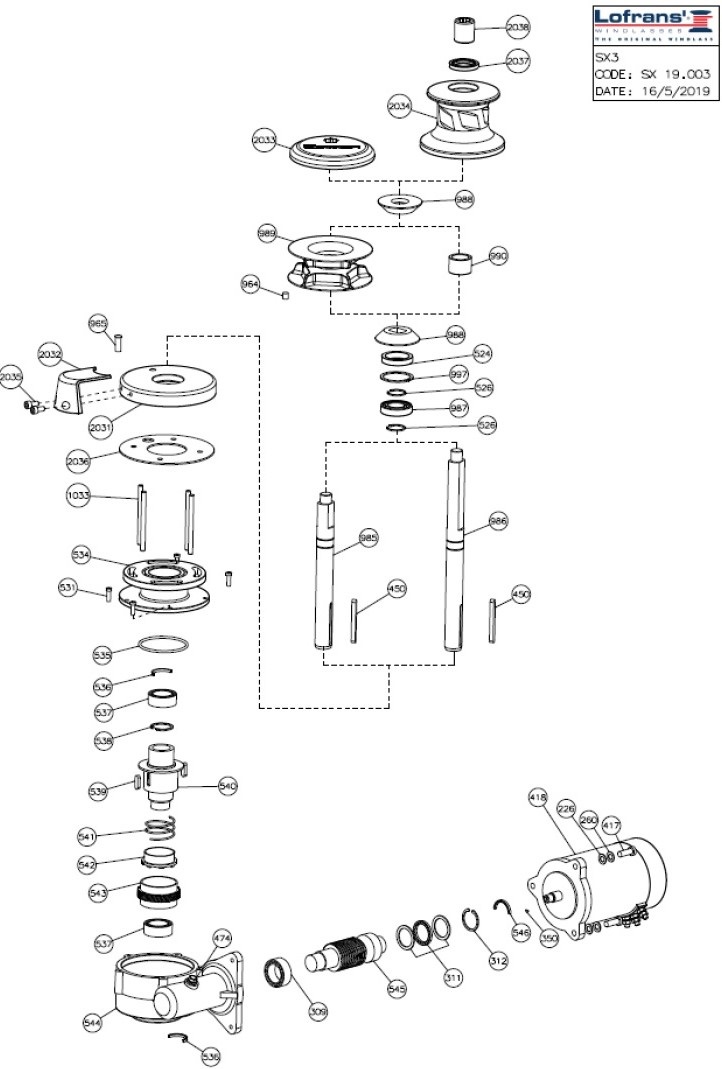

[474053] KIT S SENSOR&MAGNET X1/X2/X3

[630676] MAIN SHAFT X3 #985A

[630706] Main shaft X3 1500W (D25 low profile) #985

[630959] LOFRANS GYPSY X3/PRJ1500 10mmISO4565 #989B

[630961] LOFRANS GYPSY X3/PRJ1500 12mmISO-13DIN766 #989D

[631526] Wormwheel Airon M=1,75 Z=52-Monoblock

[631527] CORONA DENTATA T1500 #2002

[631526] Wormwheel Airon M=1,75 Z=52-Monoblock

[631527] CORONA DENTATA T1500 #2002

[631526] Wormwheel Airon M=1,75 Z=52-Monoblock

[631527] CORONA DENTATA T1500 #2002

[631526] Wormwheel Airon M=1,75 Z=52-Monoblock

[631527] CORONA DENTATA T1500 #2002

[631645] GEARCASE A3 (black anodized) #1319

[631743] BEARING 6006 2RS #253 #987

[631751] BEARING 6203 #309

[631760] BEARING 16009 #537

[631826] CONE CLUTCH X3 #988

[631901] SPACER X3 #990

[632070] FLANGE X3 #534

[633507] ELECTRIC MOTOR 1700W 12V-3M B14 #419

[633508] DC MOTOR X3 2011 #1251B 24V 1,7KW B14

[633525] Electric Motor 12V-3M 1,5KW B14 #1250A

[634691] STUD M8X105 #1033

[635490] CLUTCH NUT X2 #956 CRO

[635678] Worm A2, M=1.75, #1308b

[635680] Worm X3

[636361] BASE SX3 #2031

[636362] STRIPPER SX3 #2033

[636363] GYPSY CAP SX3 #2033

[636364] DRUM SX3 #2034

[636401] Gasket SX3 #992a

[72040] MAINTENANCE KIT X3-PROJECT 1500

Main features:

Compact round base design
Marine AISI 316L stainless steel construction
With drum or low profile
Independent gypsy and drum operation
Manual chain release
Chain counter magnet pre-installed as standard
IP66 rated heavy-duty electric motor
Anodised marine aluminium gearbox
Chain pipe available as an option

Standard Equipment:

Dual direction solenoid pack
Handle
Gypsy for chain
CD / Instruction manual
Chain pipe also available as an option, code 636311

Get in touch

Description	Motor size	Power Supply	Maximum Pull	Working load (kg)	Line Speed at W.L	Max Line Speed	Net Weight with Low Profile (kg)	Circuit Breaker	Type	Gypsy For Chain	Amps Work Load (A)	Net Weight with Drum (kg)

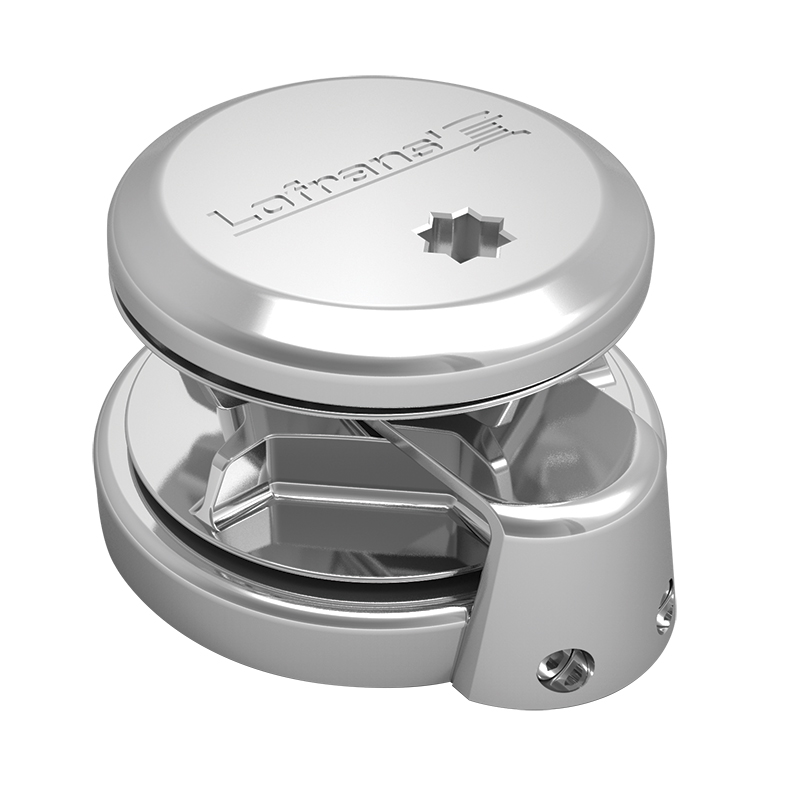

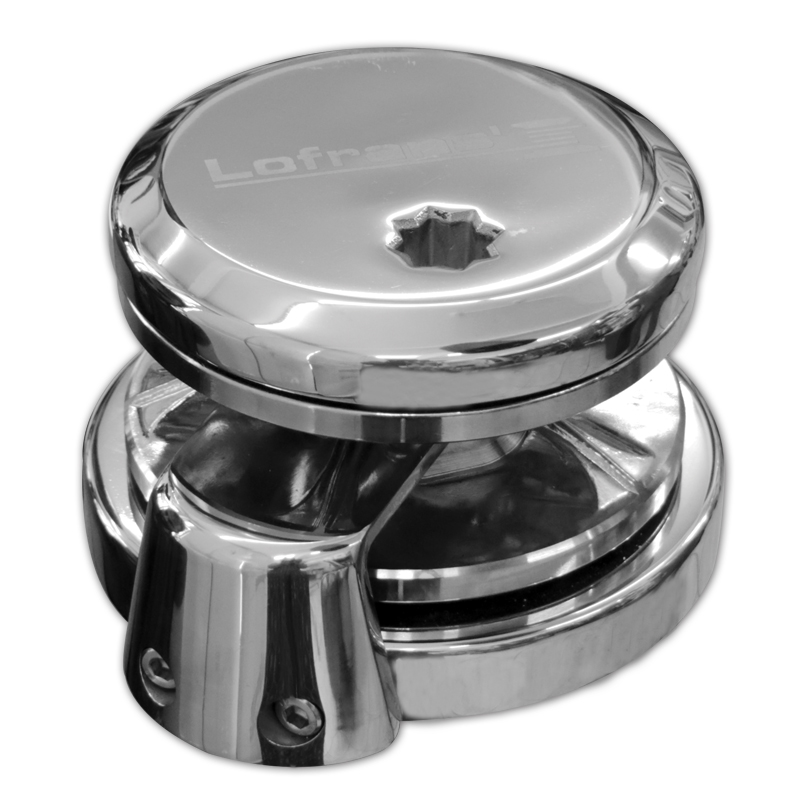

WINDLASS V. SX3 INOX ROUND 1700W/24V 12-13DIN766	1700 W	24	1695	215	15	32	35	-	Low Profile	12 mm, ISO 4565/ 13mm, DIN 766	90	38
WINDLASS V. SX3 INOX ROUND G+D 1700W/24V 12-13DIN766	1700 W	24	1695	215	15	32	35	-	With Drum	12 mm, ISO 4565/ 13mm, DIN 766	90	38
WINDLASS V. SX3 INOX ROUND G+D 1700W/24V 10DIN766	1700 W	24	1695	215	15	32	35	-	With Drum	10 mm, DIN 766	90	38
WINDLASS V. SX3 INOX ROUND 1500W/12V 10 3/8 HT	1500 W	12	1200	165	17	40	32	-	Low Profile	10 mm, ISO 4565	150	35
WINDLASS V. SX3 INOX ROUND 1700W/12V 10 3/8 HT	1700 W	12	1600	200	14	32	35	-	Low Profile	10 mm, ISO 4565	180	38
WINDLASS V. SX3 INOX ROUND G+D 1700W/12V 10DIN766	-	-	-	-	-	-	-	-	-	-	-	-
WINDLASS V. SX3 INOX ROUND G+D 1500W/12V 8-5/16"BBB-5/16"HT	-	-	-	-	-	-	-	-	-	-	-	-
WINDLASS V. SX3 INOX ROUND G+D 1500W/12V 10DIN766	1500 W	12	1200	165	17	40	32	636089	With Drum	10 mm, DIN 766	150	35
WINDLASS V. SX3 INOX ROUND G+D 1500W/24V 10 3/8 HT	1500 W	24	1200	165	17	40	32	636088	With Drum	10 mm, ISO 4565 / 3/8 HT	65	35

The "SX" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model.

The standard features that you can meet in every SX series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Compact round base design constructed with Marine AISI 316L Stainless Steel

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

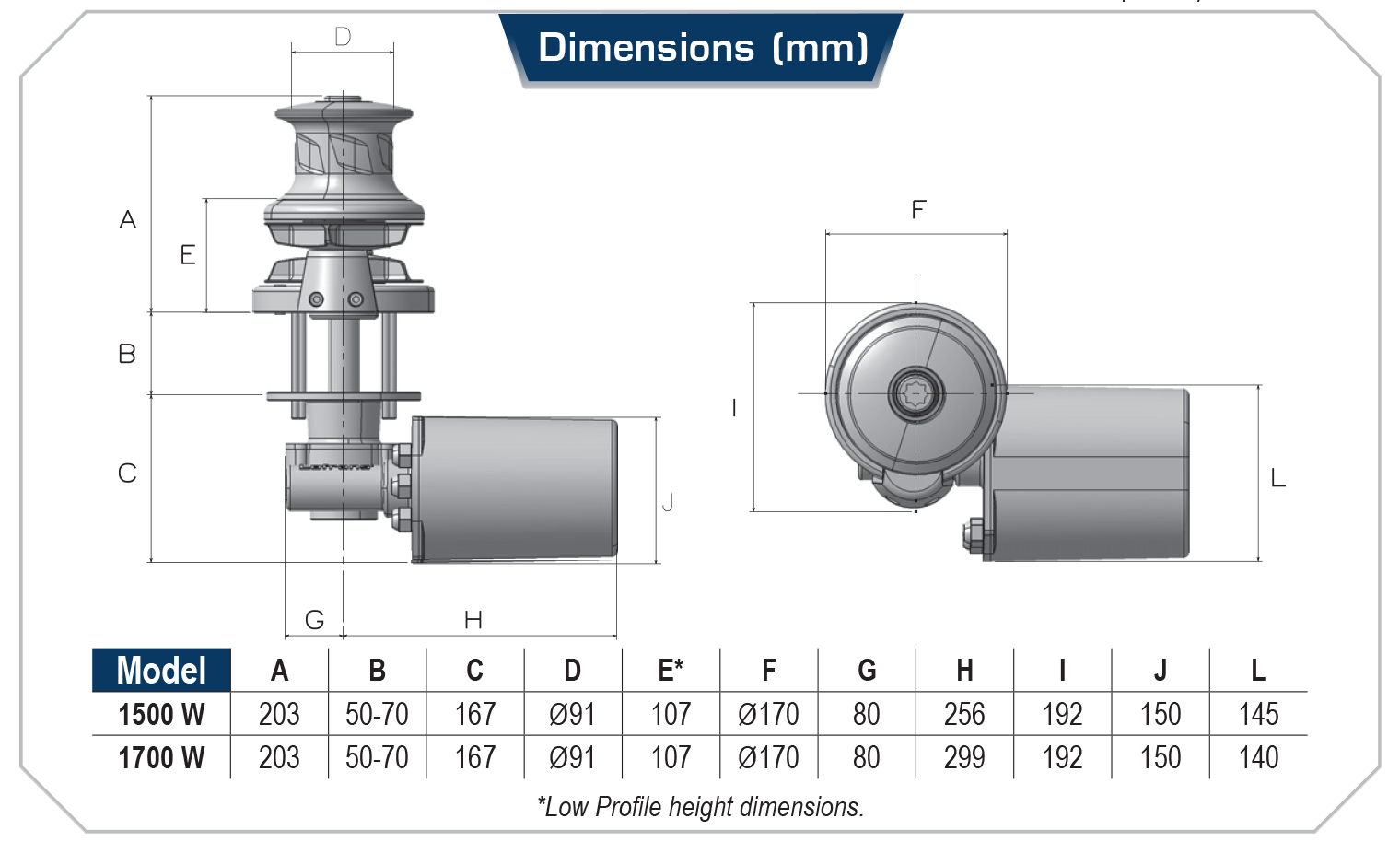

Technical Information
