SX3.5 - Vertical Windlass

Place Order

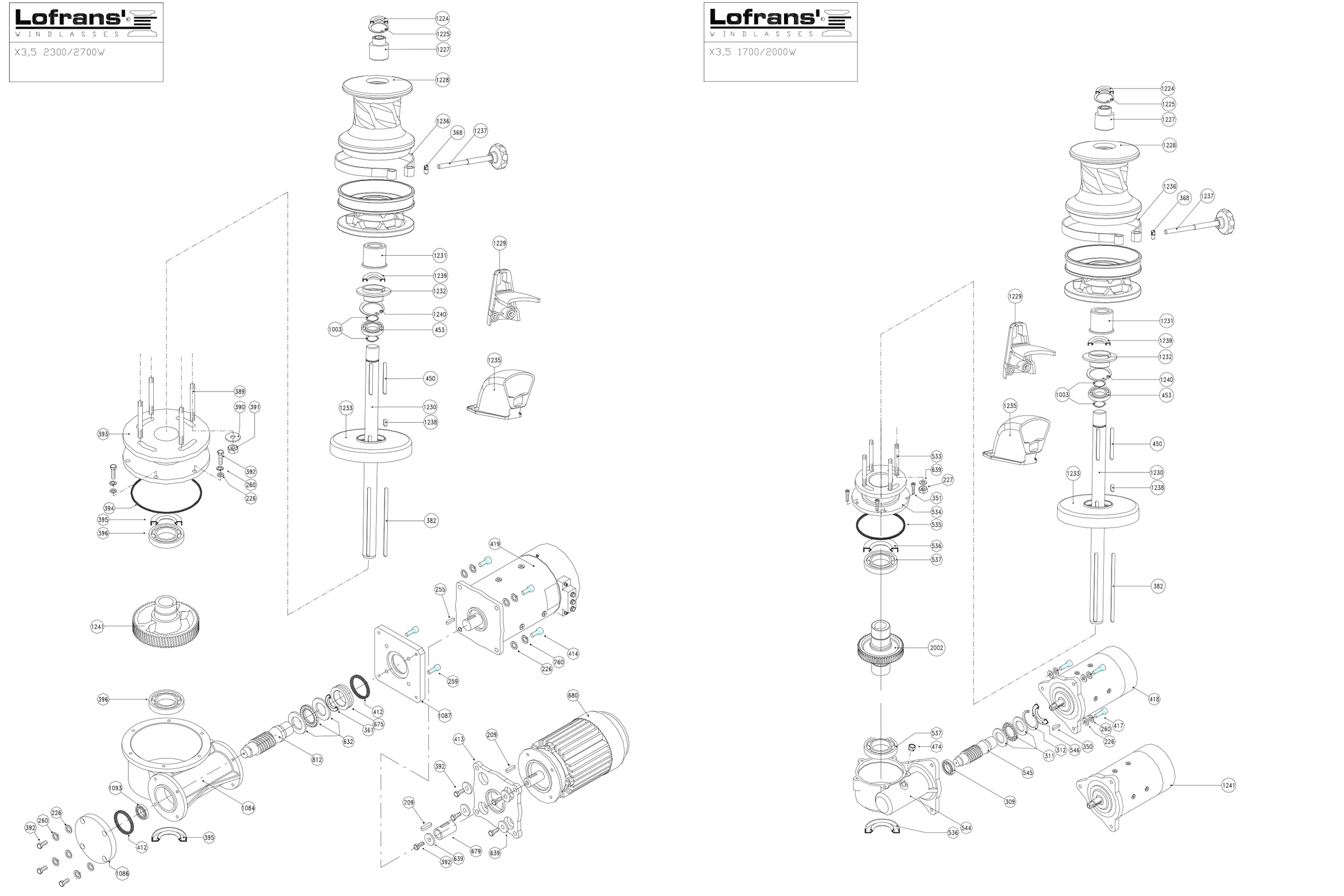

[601309] KIT STUD M8X110 #533A

[601379] KIT STUD M10X140 #389A

[630821] Main Shaft CW SX3.5 with Drum #1230

[635983] MAIN SHAFT SX3.5 WITHOUT DRUM #1290b

[630931] BUSH GYPSY SX3.5 #1287

[631221] Base SX3.5 #1233

[631403] BRAKE COVER FALKON #507A CRO

[634602] Brake pivot X4 #937 inox

[631403] BRAKE COVER FALKON #507A CRO

[634602] Brake pivot X4 #937 inox

[631457] Drum SX3.5 INOX #1284

[631527] CORONA DENTATA T1500 #2002

[631533] Wormwheel M=2,25 Z=66 Monoblock #1241

[631622] GEARCASE T2000 #1084 ALU

[631645] GEARCASE A3 (black anodized) #1319

[631739] BEARING 6002 #1093

[631751] BEARING 6203 #309

[631753] BEARING 6206 2Z #453

[631760] BEARING 16009 #537

[631761] BEARING 16010 #396

[631765] BEARING 51106 #462

[631768] BEARING 51108 RETTIFICATO (RETTIFICA)

[631838] INTERNAL CONE CLUTCH (MACHINED) SX3.5 #1289

[631917] SPACER TITAN #675

[632070] FLANGE X3 #534

[632090] FLANGE T2000 #393

[632133] FLANGE T2000 #1086

[632151] FLANGE T2000 #1087

[632157] FLANGE TITAN #413

[632171] BREAK SX3.5 #1236

[633241] COUPLING TITAN #679 AC MOTOR

[633502] Lofrans Motor Titan 2300W/24V #419

[633503] Lofrans Motor X4 2700W/24V #433

[633507] ELECTRIC MOTOR 1700W 12V-3M B14 #419

[633508] DC MOTOR X3 2011 #1251B 24V 1,7KW B14

[633540] SPRING FALKON #370

[634625] Pivot Falkon #368

[633540] SPRING FALKON #370

[634625] Pivot Falkon #368

[635095] MAINTENANCE KIT SX3.5

[635285] Stripper Assembly SX3.5 #1229

[635442] OIL PLUG TC0 1/4

[635479] CLUTCH NUT SX3.5 #1227

[635680] Worm X3

[635694] WORM T2000 #812

Main features:

Luxury stainless steel base and drum
With drum or low profile
Independent gypsy and drum operation
Manual chain release
Chain counter magnet pre-installed as standard
Anodised marine aluminium gearbox
IP66 1700W Heavy-duty electric motor
Chain pipe available as an option

Standard Equipment:

Dual direction solenoid pack
Handle
Gypsy for chain
CD / Instruction manual
Chain pipe also available as an option, code 636312

Get in touch

Description	Motor size	Power Supply	Maximum Pull	Working load (kg)	Amps at Working Load (A)	Max Line Speed	Net Weight	Circuit Breaker	Type	Gypsy For Chain

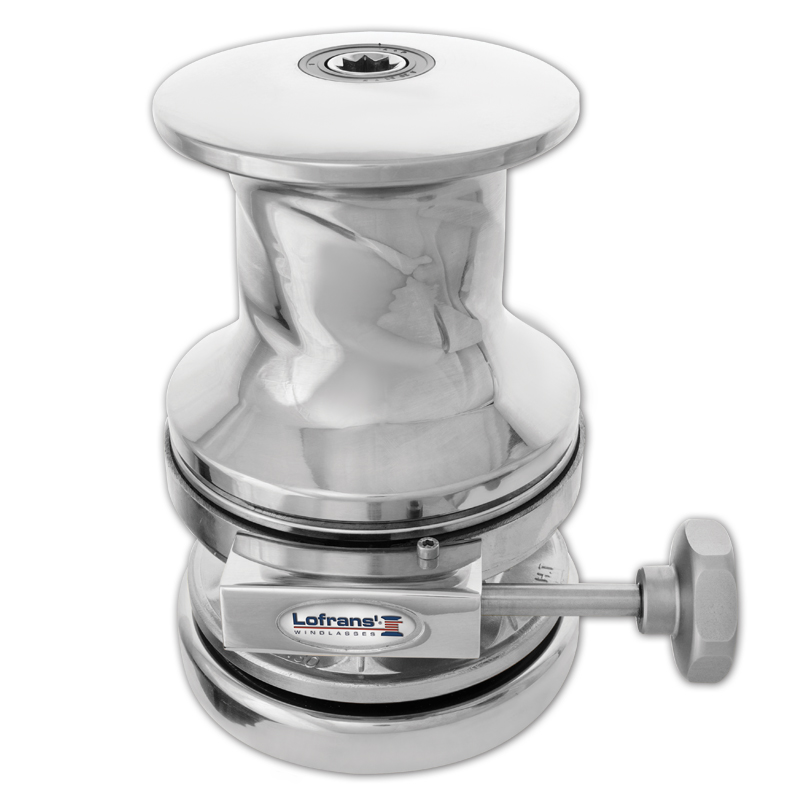

WINDLASS V. SX3.5 S/S G+D 1700W/12V 10 3/8 HT	1700 W	12 V	1700 kg	215	185	37 m/min	50 kg	-	With Drum	10 mm, ISO 4565
WINDLASS V. SX3.5 S/S G+D 1700W/24V 10 3/8 HT	1700 W	24 V	1700 kg	220	95	37 m/min	50 kg	-	With Drum	10 mm, ISO 4565
WINDLASS V. SX3.5 S/S G+D 1700W/12V 12-13DIN766	1700 W	12 V	1700 kg	215	185	37 m/min	50 kg	-	With Drum	12 mm, ISO 4565 / 13mm, DIN 766
WINDLASS V. SX3.5 S/S G+D 1700W/24V 12-13DIN766	1700 W	24 V	1700 kg	220	95	37 m/min	50 kg	-	With Drum	12 mm, ISO 4565 / 13mm, DIN 766
WINDLASS V. SX3.5 S/S G+D 2300W/24V 12-13DIN766	2300 W	24 V	1900 kg	265	180	35 m/min	60 kg	-	With Drum	12 mm, ISO 4565 / 13mm, DIN 766
WINDLASS V. SX3.5 S/S G+D 2700W/24V 14mm	2700 W	24 V	2000 kg	320	210	35 m/min	60 kg	-	With Drum	14 mm
WINDLASS V. SX3.5 S/S G+D 2300W/24V 10 3/8 HT	2300 W	24 V	1900 kg	265	180	35 m/min	58 kg	-	With Drum	10 mm, ISO 4565
WINDLASS V. SX3.5 S/S G+D 2700W/24V 12-13DIN766	2700 W	24 V	2400 kg	320	125	32 m/min	58 kg	-	With Drum	12mm ISO 4565/13 mm DIN 766

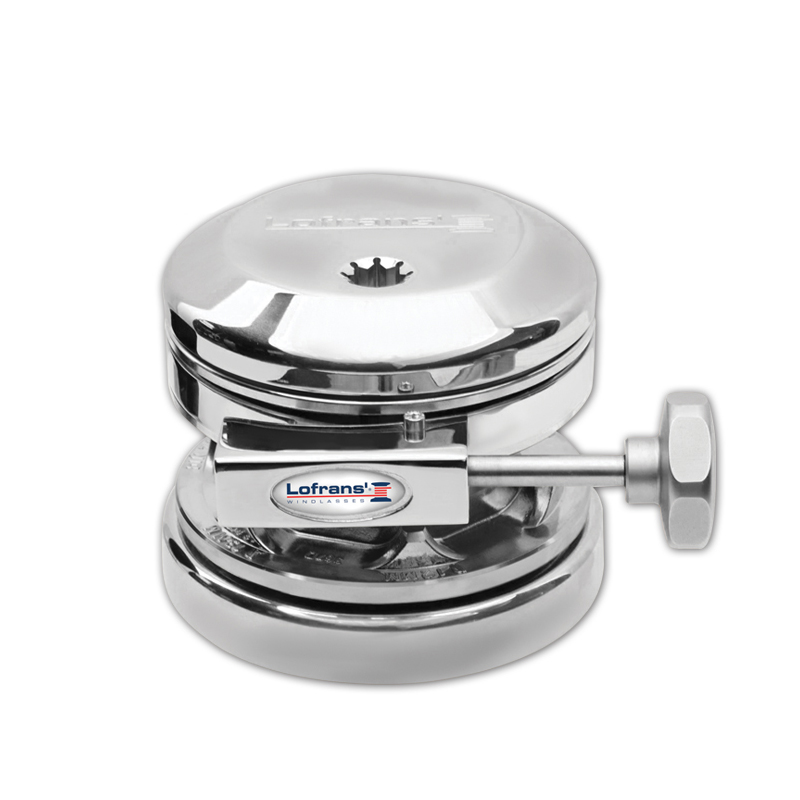

WINDLASS V. SX3.5 S/S 1700W/12V 12-13DIN766	1700 W	12 V	1700 kg	215	185	37 m/min	48 kg	-	Low Profile	12 mm, ISO 4565 / 13mm, DIN 766
WINDLASS V. SX3.5 S/S 1700W/24V 12-13DIN766	1700 W	24 V	1700 kg	220	95	37 m/min	48 kg	-	Low Profile	12 mm, ISO 4565 / 13mm, DIN 766
WINDLASS V. SX3.5 S/S 2300W/24V 12-13DIN766	2300 W	24 V	1900 kg	265	180	35 m/min	58 kg	-	Low Profile	12 mm, ISO 4565 / 13mm, DIN 766
WINDLASS V. SX3.5 S/S 2700W/24V 12-13DIN766	2700 W	24 V	2000 kg	320	210	35 m/min	60 kg	-	Low Profile	12 mm, ISO 4565 / 13mm, DIN 766
WINDLASS SX3,5 HYD 14MM CHAIN	Hydraulic - 8cc	-	2500 kg	650	-	16 m/min	60 kg	-	Low Profile	14 mm

The standard features that you can meet in every SX series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Compact round base design constructed with Marine AISI 316L Stainless Steel

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.
