SX2 - Vertical Windlass

Place Order

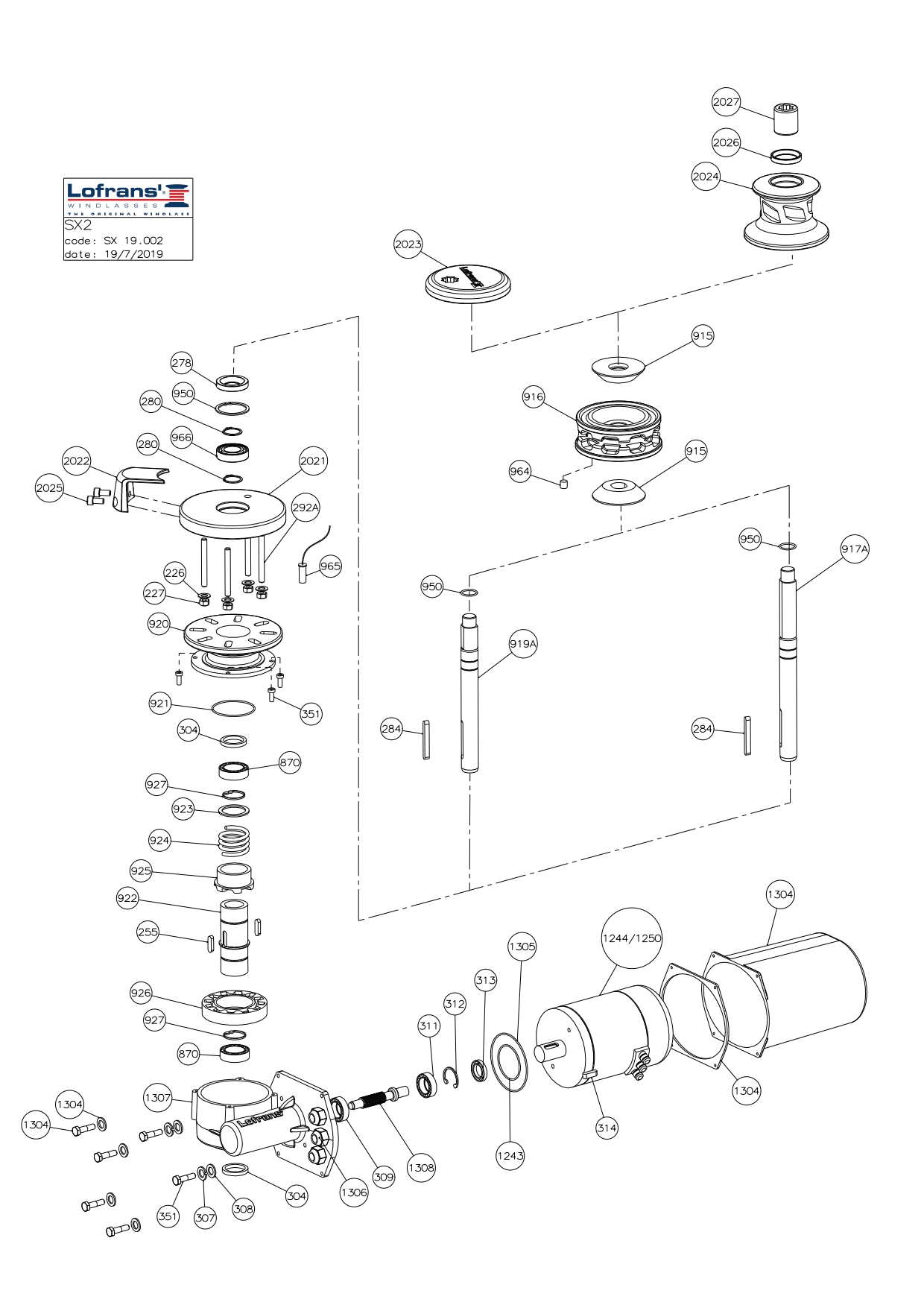

[197977] Lofrans Motor cover for X2 -1000/1500W

[474053] KIT S SENSOR&MAGNET X1/X2/X3

[601368] KIT STUD M8X75 #292A

[630661] MAIN SHAFT X2 #917A

[630662] MAIN SHAFT X2 #919A

[630840] CIRCLIP DIA.25 X2 #550

[630949] LOFRANS GYPSY X2/PRJ1000 8mmISO4565/DIN766 #916B

[631526] Wormwheel Airon M=1,75 Z=52-Monoblock

[631651] Gearcase X2 #928 ALU

[631745] BEARING 6008 2RS #870

[631751] BEARING 6203 #309

[631764] BEARING 51105 #311

[631770] BEARING 6005 2RS #903 INOX

[631841] CONE CLUTCH X2 #915

[632063] FLANGE X2 #920

[633523] Electric Motor 12V-3M 1,0KW B14 #1244A

[633525] Electric Motor 12V-3M 1,5KW B14 #1250A

[633526] Lofrans Motor X2-X3 24V 1,5KW B14 Circle Flange #1250B

[634860] Washer spring lock DIN127 M5 A4 #924

[634868] Washer DIN125 M5 A4 #923

[635490] CLUTCH NUT X2 #956 CRO

[635678] Worm A2, M=1.75, #1308b

[636357] BASE SX2 #2021

[636358] STRIPPER SX2 #2022

[636359] GYPSY CAP SX2 #2023

[636360] DRUM SX2 #2024

[72038] MAINTENANCE KIT X2-PROJECT 1000

Main features:

Compact round base design
Marine AISI 316L stainless steel construction
With drum or low profile
Independent gypsy and drum operation
Manual chain release
Chain counter magnet pre-installed as standard
IP67 motor cover
Anodised marine aluminium gearbox
Chain pipe available as an option

Standard Equipment:

Dual direction solenoid pack
Handle
Gypsy for chain
CD / Instruction manual
Chain pipe also available as an option, code 636311

Get in touch

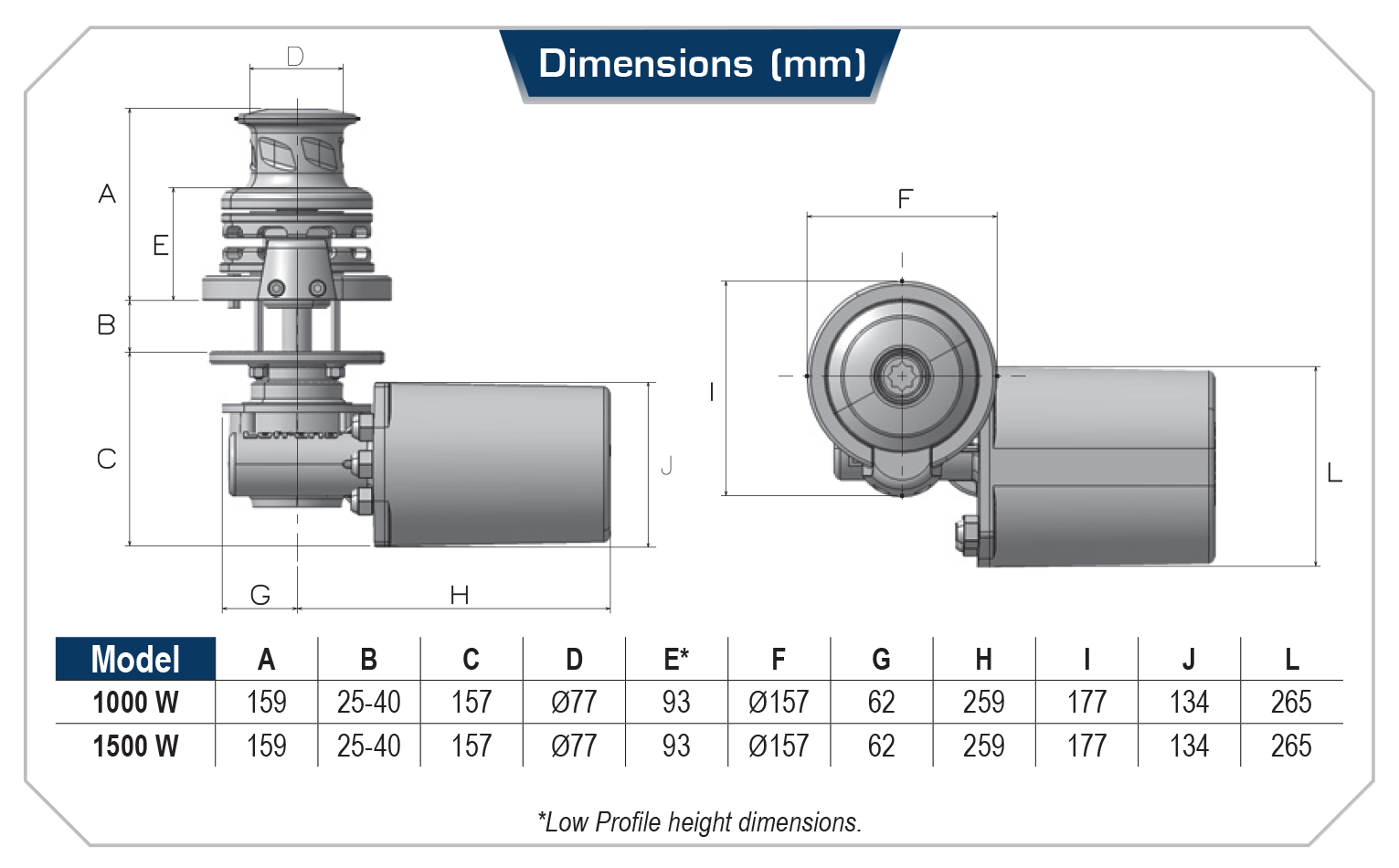

Code	Description	Motor size	Power Supply	Maximum Pull	Working load (kg)	Line Speed at W.L	Max Line Speed	Net Weight with Low Profile (kg)	Circuit Breaker	Type	Gypsy For Chain	Amps Work Load (A)	Net Weight with Drum (kg)

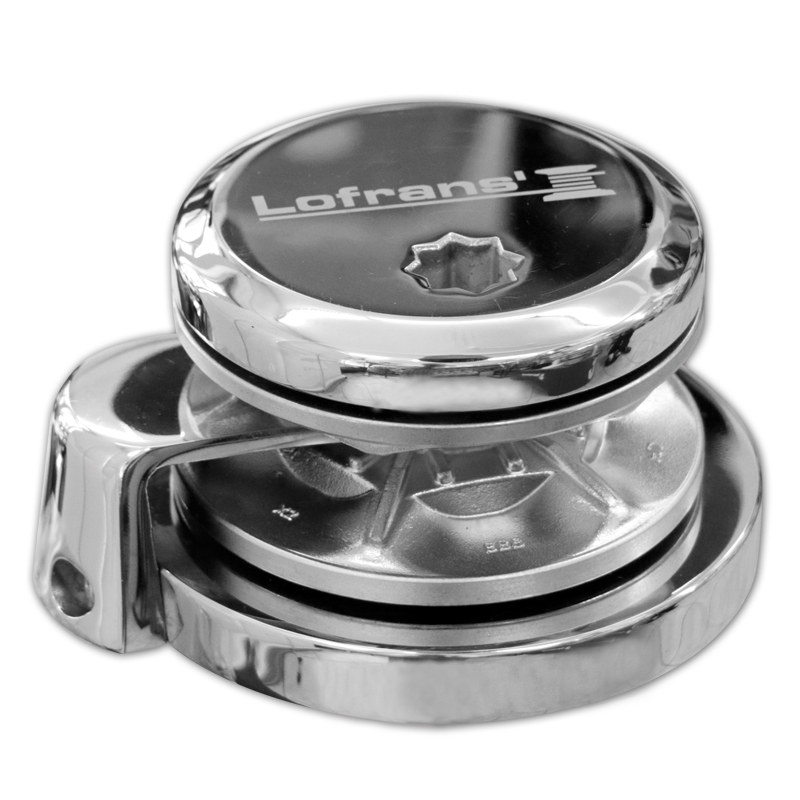

	WINDLASS V. SX2 INOX ROUND 1000W/12V 8-5/16"BBB-5/16"HT	1000 w	12	1000	150	20	40	19	636089	Low Profile	8 mm, ISO 4565/ DIN 766	135	20

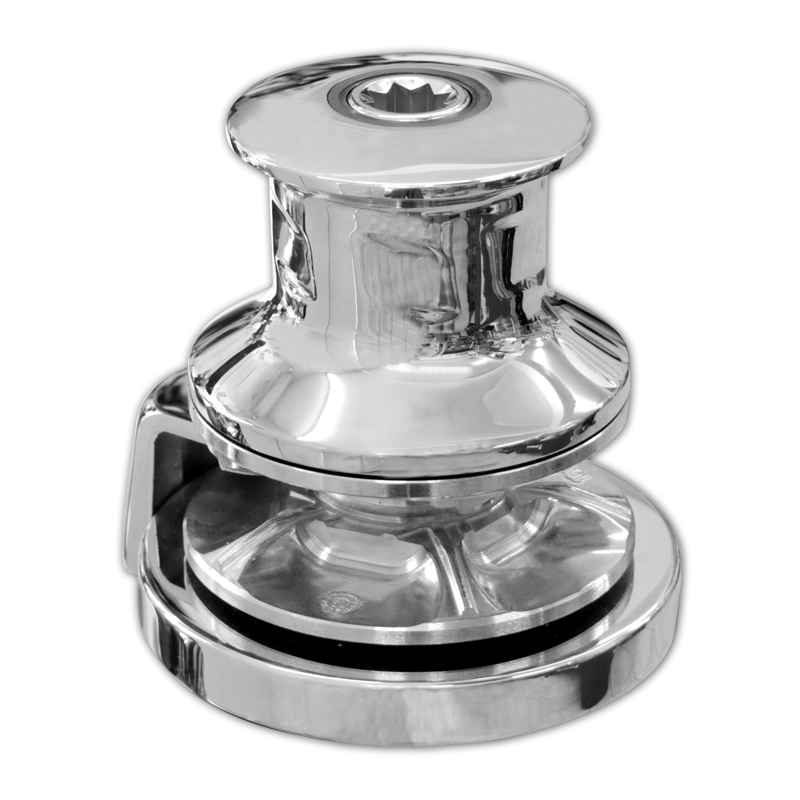

	WINDLASS V. SX2 INOX ROUND G+D 1000W/12V 8-5/16"BBB-5/16"HT	1000 w	12	1000	150	20	40	19	636089	With Drum	8 mm, ISO 4565/ DIN 766	135	20
	WINDLASS V. SX2 INOX ROUND 1500W/24V 8-5/16"BBB-5/16"HT	1500 w	24	1270	175	19	40	24	636088	Low Profile	8 mm, ISO 4565/ DIN 766	75	25
	WINDLASS V. SX2 INOX ROUND G+D 1500W/24V 8-5/16"BBB-5/16"HT	1500 w	24	1270	175	19	40	24	636088	With Drum	8 mm, ISO 4565/ DIN 766	75	25
	WINDLASS V. SX2 INOX ROUND G+D 1000W/12V 10 DIN766	1000 w	12	1000	150	20	40	19	636089	With Drum	10 DIN766	135	20
636682	WINDLASS V. SX2 INOX ROUND G+D 1000W/12V 10 3/8 HT	1000 w	12	1000	150	20	40	19	636089	With Drum	10mm ISO4565, 3/8 HT	135	20

The "SX" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model.

The standard features that you can meet in every SX series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Compact round base design constructed with Marine AISI 316L Stainless Steel

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.
