SX1 - Vertical Windlass

Place Order

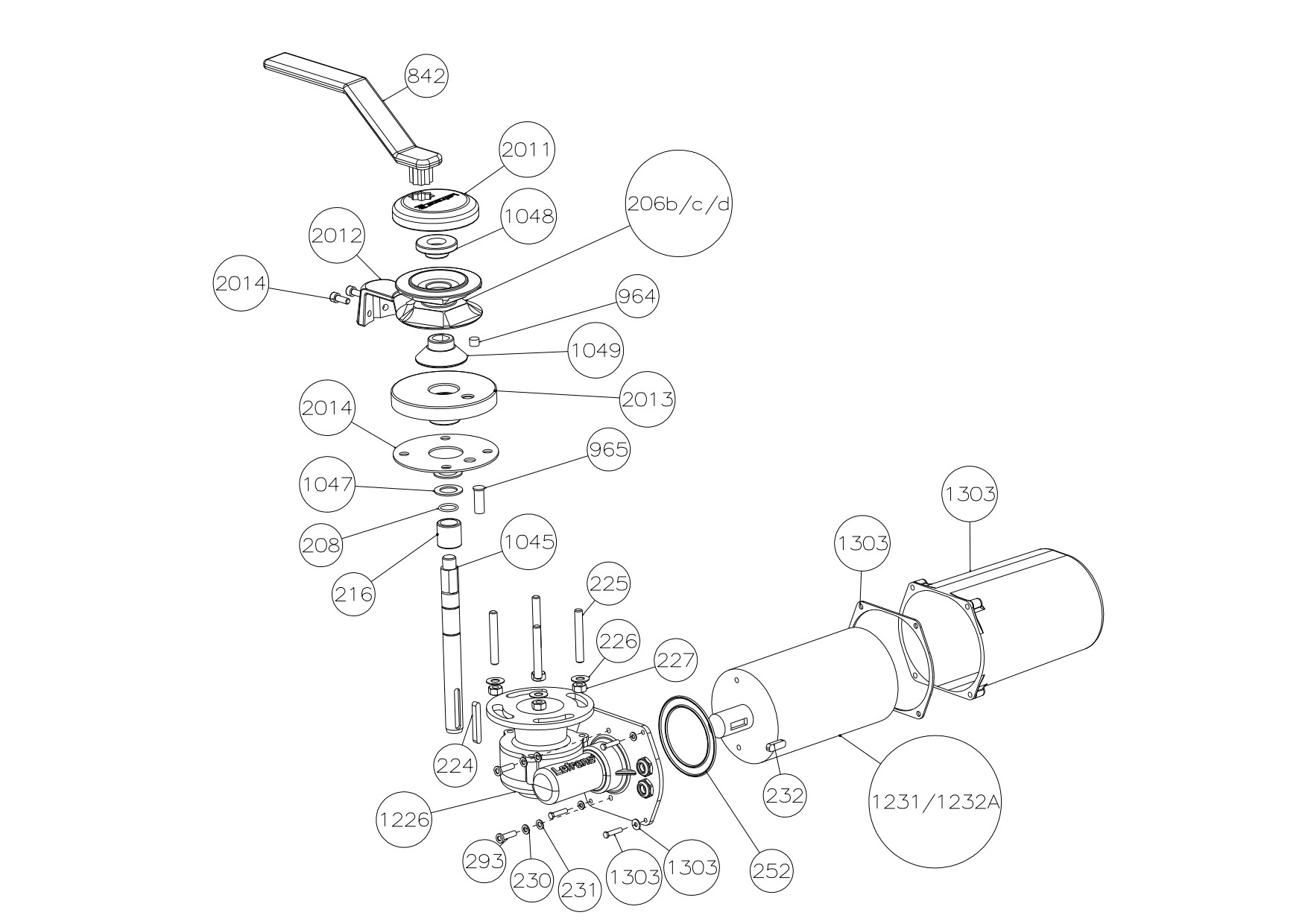

[11857] Lofrans' Winch Handle, Anodised Aluminium, with lock and speed handle, 20cm, Black

[72907] Lofrans' Floating Winch Handle, 25cm

[474053] KIT S SENSOR&MAGNET X1/X2/X3

[601330] KIT STUD M8X58 #225A

[630680] MAIN SHAFT X1 #1045A

[630839] Ring DIN 17224 #208, Material:X12CrNi177, d=16,5mm, width=2 mm

[630970] LOFRANS GYPSY X0/X1/X1ALU 6mmISO4565/DIN766 #206B

[630980] LOFRANS GYPSY X1/X1ALU 7mmISO-1/4" G40 #206C

[630999] LOFRANS GYPSY X1 8mmISO4565/DIN766 #206D

[636352] GYPSY CAP SX1 #2011

[630970] LOFRANS GYPSY X0/X1/X1ALU 6mmISO4565/DIN766 #206B

[630980] LOFRANS GYPSY X1/X1ALU 7mmISO-1/4" G40 #206C

[630999] LOFRANS GYPSY X1 8mmISO4565/DIN766 #206D

[631307] BUSH X1 #216

[631828] Cone Clutch X1 #1049

[631829] Cone Clutch X1 #1048

[631992] Gearbox A1 with flange for IP67 #1226

[633520] DC MOTOR X1 2011 #1231 12V 0,5KW B14

[636050] LOFRANS DC MOTOR X1-X2 2016 - 800W/12V B14 #1231B

[634830] Washer X1 #1047

[636353] STRIPPER SX1 #2012

[72037] MAINTENANCE KIT X1

Main features:

Compact round base design
Marine AISI 316L stainless steel construction
Independent gypsy operation
Manual chain release
Chain counter magnet pre-installed as standard
IP67 motor cover
Anodised marine aluminium gearbox
Chain pipe available as an option

Standard Equipment:

Dual direction solenoid pack
Handle
Gypsy for chain
CD / Instruction manual
Chain pipe also available as an option, code 636431

Get in touch

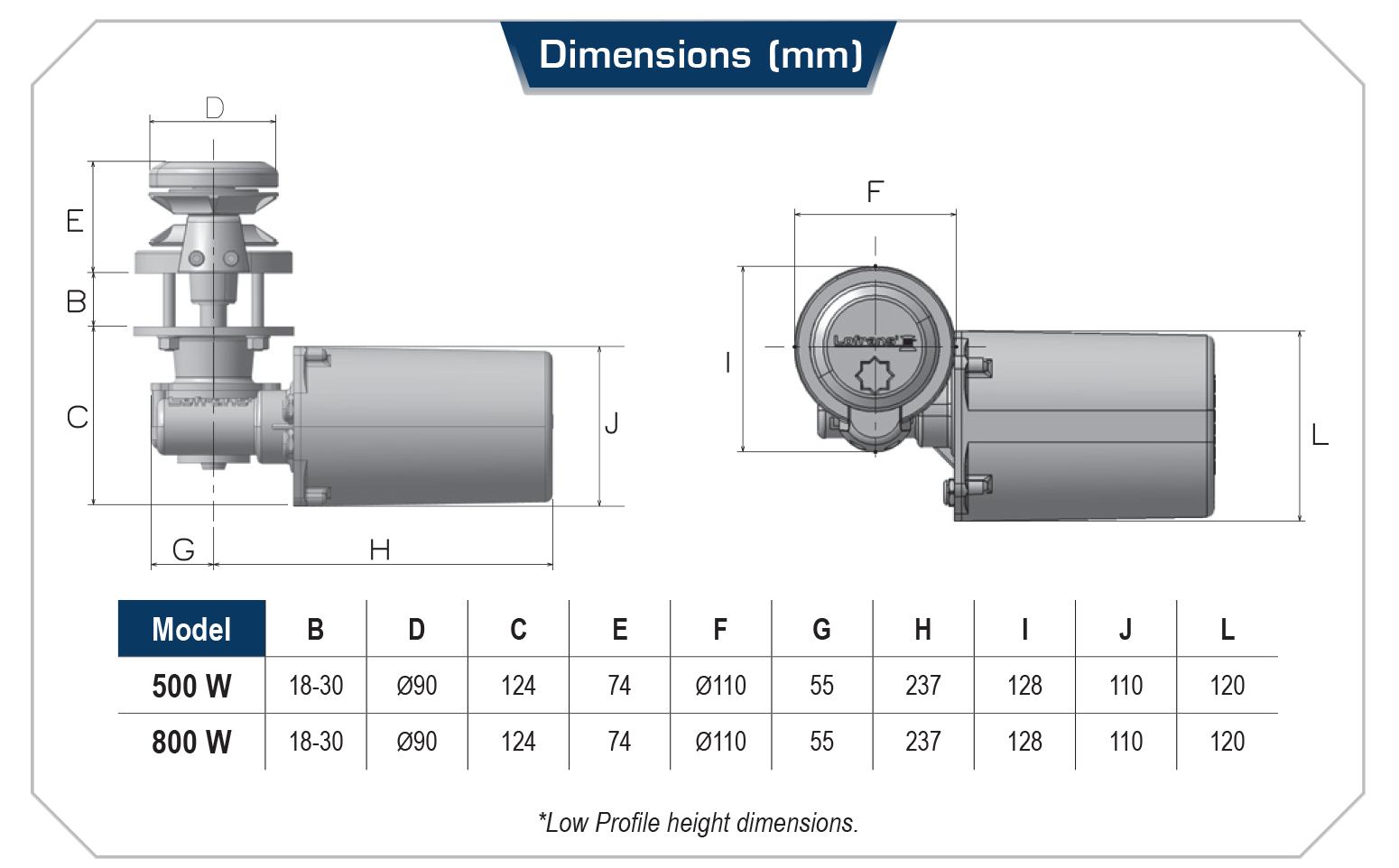

Description	Motor size	Power Supply	Maximum Pull	Amps at Working Load (A)	Line Speed at W.L	Max Line Speed	Net Weight with Low Profile (kg)	Circuit Breaker	Type	Gypsy For Chain	Amps Work Load (A)

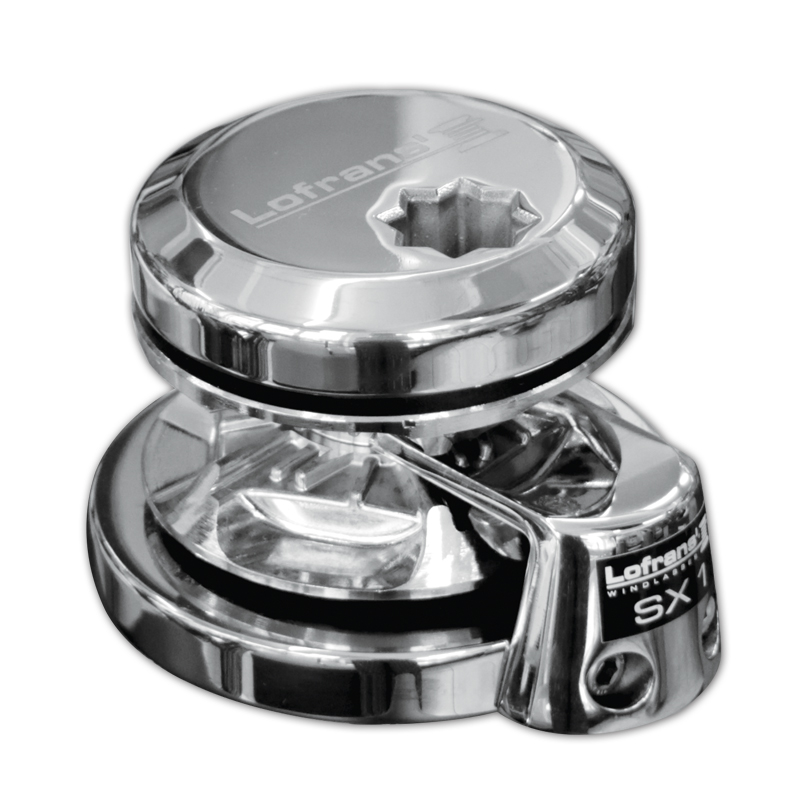

WINDLASS V. SX1 INOX ROUND 500W/12V 6-3/16"BBB	500W	12	630	95	23	26	11	636087	Low Profile	6 mm, ISO 4565/ DIN 766	75
WINDLASS V. SX1 INOX ROUND 800W/12V 8-5/16"BBB-5/16"HT	800W	12	700	100	25	28	13	636088	Low Profile	8 mm, ISO 4565/ DIN 766	80
WINDLASS V. SX1 INOX ROUND 800W/12V 6-3/16"BBB	800W	12	700	100	25	28	13	-	Low Profile	6 mm, ISO 4565/ DIN 766	80

The "SX" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model.

The standard features that you can meet in every SX series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Compact round base design constructed with Marine AISI 316L Stainless Steel

Windlass Models / Technical Information

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

Technical Information
