ROYAL - Horizontal Windlass
Main Features
- Marine aluminium anodised body
- Indepent Gypsy and drum operation
- Manual chain release
- Manual override
Box includes:
Windlass assembly
Dual direction solenoid pack
Handle or lever
QR code card for instruction manual
| Code | Description | Motor size | Maximum Pull | Working load (kg) | Net Weight | Type | Gypsy For Chain |
|---|---|---|---|---|---|---|---|

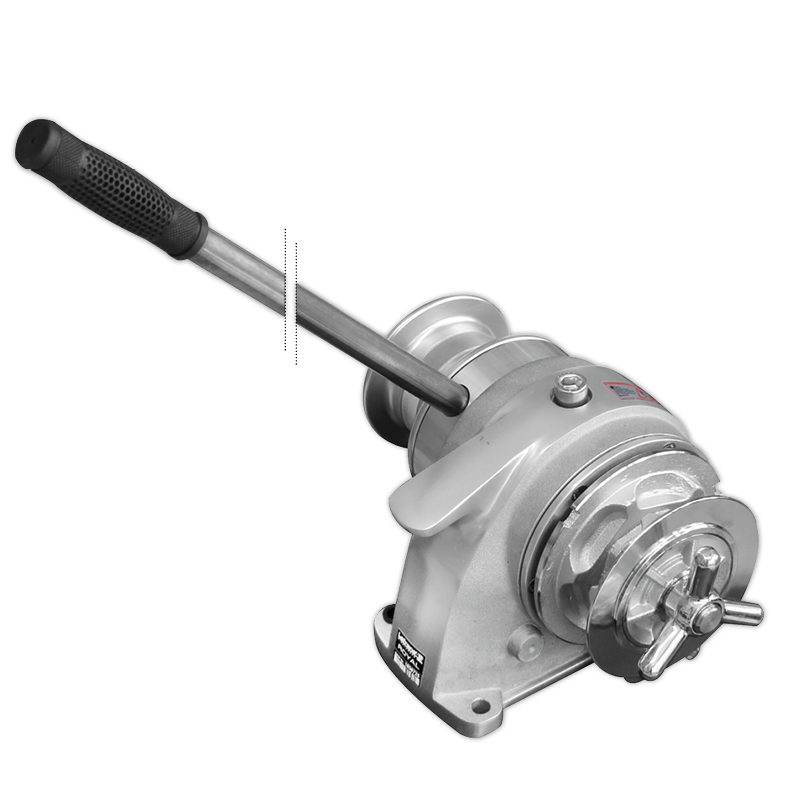

![[] WINDLASS H. ROYAL ALU G+D MANUAL/ 6mm image](https://www.lofrans.com/images/items/itm_ROYAL.jpg)
|
WINDLASS H. ROYAL ALU G+D MANUAL/ 6mm | MANUAL | 400 kg | 70 | 10 kg | With Drum | 6 mm, ISO 4565/ DIN 766 |
|
|
WINDLASS H. ROYAL ALU G+D MANUAL/ 10mm | MANUAL | 400 kg | 70 | 10 kg | With Drum | 10 mm, ISO 4565 |
|
|
WINDLASS H. ROYAL ALU G+D MANUAL/ 8mm | MANUAL | 400 kg | 70 | 10 kg | With Drum | 8 mm, ISO 4565/ DIN 766 |
|
|
WINDLASS H. ROYAL ALU G+D MANUAL/ 10DIN766 | MANUAL | 400 kg | 70 | 10 kg | With Drum | 10 mm, DIN 766 |
|
|
WINDLASS H. ROYAL ALU G+D MANUAL/ 7mm | MANUAL | 400 kg | 70 | 10 kg | With Drum | 7 mm, ISO 4565 |
To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.
3D Models
Deck Templates
