LION 1000 - Horizontal Windlass

Place Order

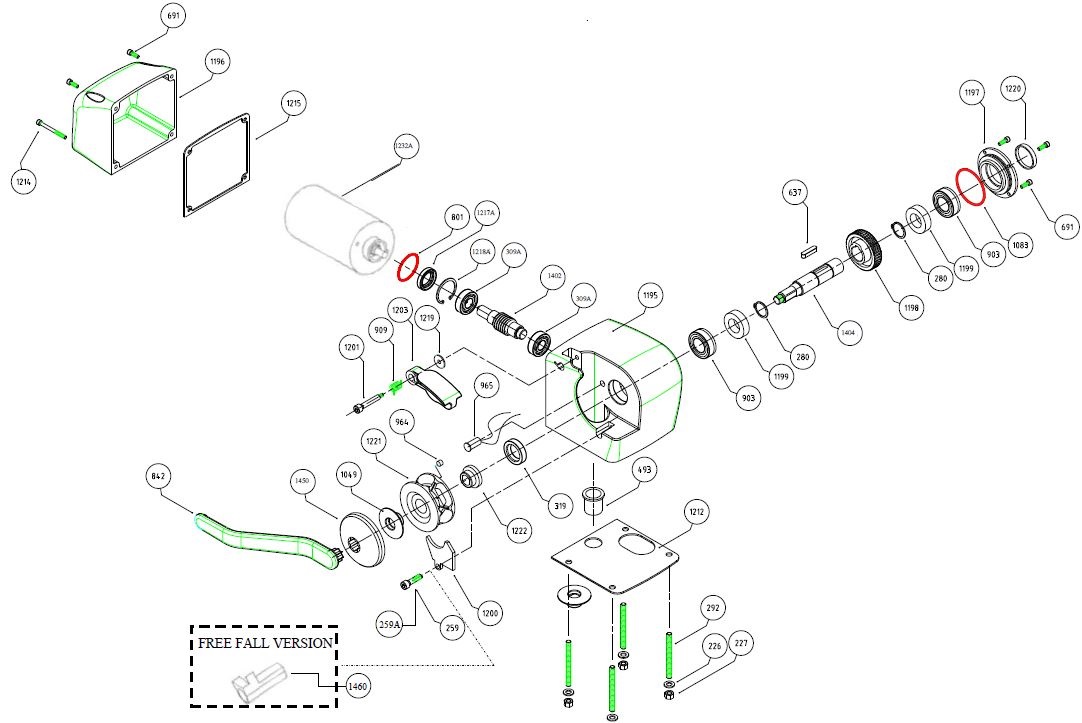

[630694] MAIN SHAFT LION #1404

[630935] BUSH ROYAL #493

[631005] LOFRANS GYPSY Lion 6mm ISO4565/DIN766 #1221A

[631007] LOFRANS GYPSY Lion 7mmISO4565 #1221B

[636643] LOFRANS GYPSY D.100 Lion 8mmISO4565/DIN766 #1221C

[631530] WORMWHEEL LION #1198

[631575] COVER LION #1197 ALU

[631625] Gearcase LION White

[631770] BEARING 6005 2RS #903 INOX

[631828] Cone Clutch X1 #1049

[631836] Inner Cone Clutch CAT. 6-7-8 #1222

[631908] Internal spacer #1199

[632116] FINGER LION #1203 ALU

[633249] SEAL LION 1000 #1215

[633250] SEAL LION 1000 #1212

[633521] DC MOTOR X1-X2 2011 #1232A 12V 0,7KW B14

[633529] SENSORE REED MEDER X1-X2-X3

[634654] Protector Motor LION White #1196

[634686] STUD M8X75

[635278] STRIPPER LION #1200

[636100] SPRING LION #909A

[636271] BEARING 61904 - 2RS

[636272] LION PAWL FREE FALL #1460

[636274] GYPSY CAP LION #1450 CRO

[636338] GYPSY CAP LION CRO (FF) #1450a

[636275] WORM LION #1402

[72045] MAINTENANCE KIT ATLAS/ LION 1000

[72743] Lofrans' Floating Handle, 25cm

Main Features:

Automatic free fall available (optional)*
White polyester coating
Manual chain release
Rope chain management by the spring load arm
Chain counter magnet pre-setting as standard
IP67 motor cover
Control Box included in package

* with automatic free fall installed

Get in touch

Code	Description	Construction	Motor size	Power Supply	Maximum Pull	Working load (kg)	Line Speed at W.L	Max Line Speed	Net Weight	Type	Dimension (mm)	Gypsy For Chain	Gypsy For Rope	Amps Work Load (A)	Automatic Free Fall
610001	WINDLASS H. LION 1000 ALU 700W/12V 6-3/16"BBB	Anodised Aluminium	700 W	12 V	575 kg	105	23 m/min	26 m/min	11 kg	Low Profile	-	6 mm, ISO 4565	10-12 mm, 3-strand	60	No
610002	WINDLASS H. LION 1000 ALU 700W/12V 8-5/16"BBB-5/16"HT	Anodised Aluminium	700 W	12 V	575 kg	105	23 m/min	26 m/min	11 kg	Low Profile	-	8 mm, ISO 4565 / DIN 766	12 mm, 3-strand	60	No
610003	WINDLASS H. LION 1000 ALU F. F 700W/12V 6-3/16"BBB	Anodised Aluminium	700 W	12 V	575 kg	105	23 m/min	26 m/min	11 kg	Low Profile	-	6 mm, ISO 4565	10-12 mm, 3-strand	60	Yes
610004	WINDLASS H. LION 1000 ALU F. F 700W/12V 8-5/16"BBB-5/16"HT	Anodised Aluminium	700 W	12V	575 kg	105	23 m/min	26 m/min	11 kg	Low Profile	-	8 mm, ISO 4565 / DIN 766	12 mm, 3-strand	60	Yes
	WINDLASS H. LION 1000 W.ALU 700W/12V 6-3/16 BBB	White Anodised Aluminium	700 W	12 V	575 kg	105	23 m/min	26 m/min	11 kg	Low Profile	-	6 mm, ISO 4565	10-12 mm, 3-strand	60	No
	WINDLASS H. LION 1000 W.ALU 700W/12V 8-5/16 BBB-5/16 HT	White Anodised Aluminium	700 W	12 V	575 kg	105	23 m/min	26 m/min	11 kg	Low Profile	-	8 mm, ISO 4565 / DIN 766	12 mm, 3-strand	60	No
	WINDLASS H. LION 1000 W.ALU F. F 700W/12V 6-3/16 BBB	White Anodised Aluminium	700 W	12 V	575 kg	105	23 m/min	26 m/min	11 kg	Low Profile	-	6 mm, ISO 4565	10-12 mm, 3-strand	60	Yes
	WINDLASS H. LION 1000 W.ALU F. F 700W/12V 8-5/16 BBB-5/16 HT	White Anodised Aluminium	700 W	12 V	575 kg	105	23 m/min	26 m/min	11 kg	Low Profile	-	8 mm, ISO 4565 / DIN 766	12 mm, 3-strand	60	Yes

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

Technical Information

Lofrans' Oil Capacities

Deck Templates

Deck Template ~ LION 1000

3D Models

3D CAD Model ~ LION 1000

Manuals

Installation And User's Manual _ LION 1000 - Tigres - Cayman - Falkon
