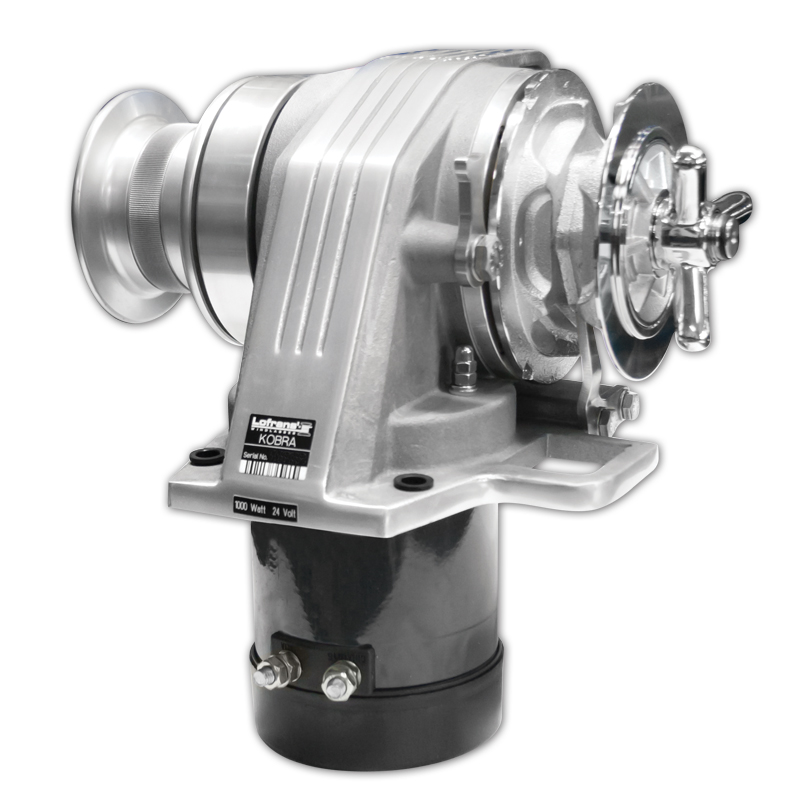

KOBRA - Horizontal Windlass

Place Order

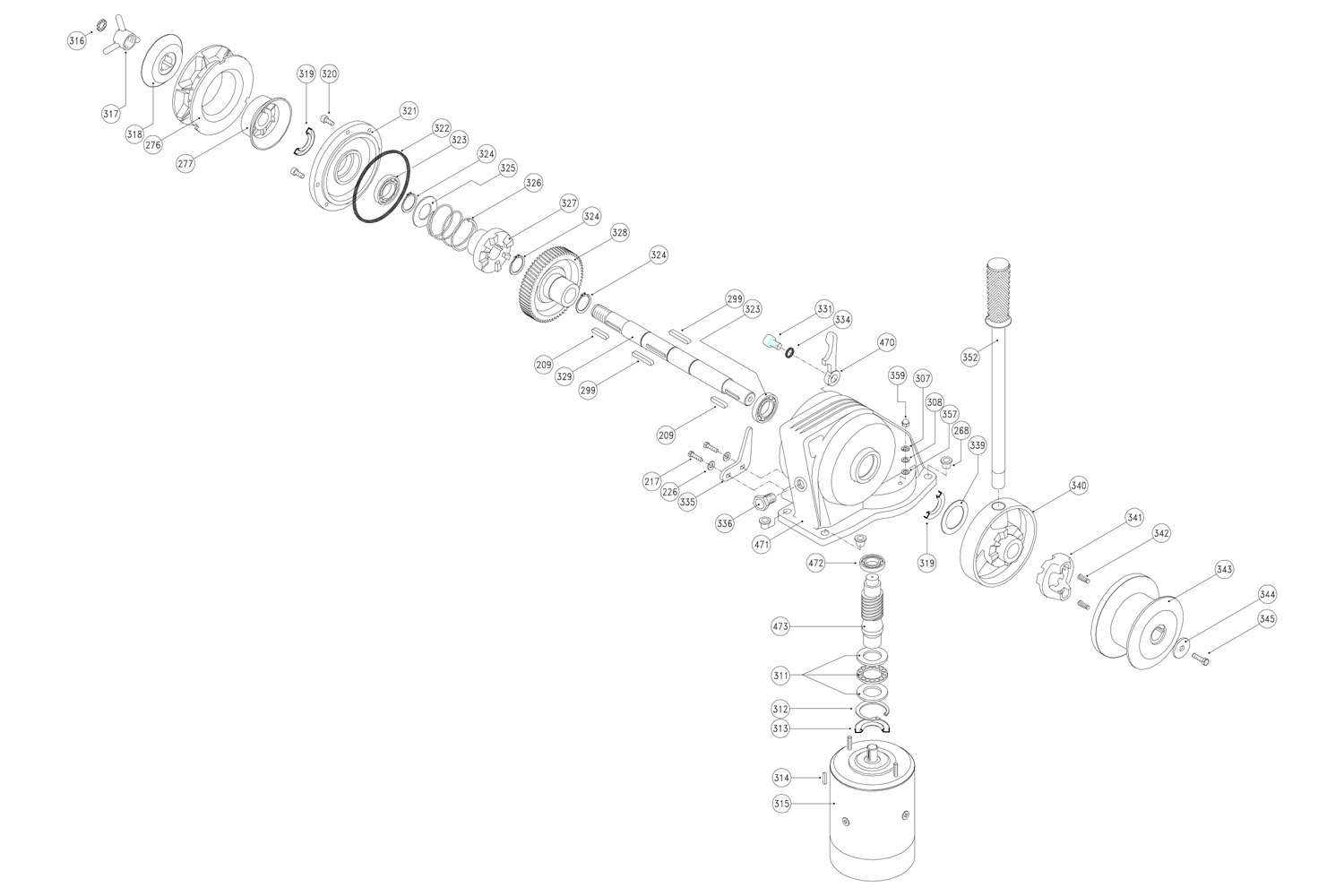

[418422] KIT A SEALS T1500

[601433] KIT BUSH TIGRES #268

[601527] BEARING 6005 #323

[630737] MAIN SHAFT CAYMAN88 #329

[630968] LOFRANS GYPSY KOBRA/CAYMAN/TIGRES/ROYAL 6mmISO4565/DIN766 #276A

[630978] LOFRANS GYPSY KOBRA/CAYMAN/TIGRES/ROYAL 7mmISO-1/4" G40 #276B

[630994] GYPSY KOBRA/CAYMAN/TIGRES/ROYAL 8mmISO4565/DIN766 #276C

[631011] GYPSY KOBRA/CAYMAN/TIGRES/ROYAL 10mmISO-3/8 HT #276E

[631077] LOFRANS GYPSY KOBRA/CAYMAN/TIGRES/ROYAL Ø5/16 HT#276D

[631118] LOFRANS GYPSY KOBRA/CAYMAN/TIGRES/ROYAL 10mmDIN766 #276F

[631120] LOFRANS GYPSY KOBRA/CAYMAN/TIGRES/ROYAL 3/8 BBB #276G

[631122] LOFRANS GYPSY KOBRA/CAYMAN/TIGRES/ROYAL 3/8 PC #276H

[631460] DRUM TIGRES #343 ALU

[631546] Wormwheel Kobra #328

[631596] COVER KOBRA #321 ALU

[631672] GEARCASE KOBRA #471A ALU

[631762] BEARING 16100 #472

[631764] BEARING 51105 #311

[631770] BEARING 6005 2RS #903 INOX

[631798] DOG CLUTCH TIGRES #341

[631800] DOG CLUTCH CAYMAN88 #327

[631842] CONE CLUTCH TIGRES #318A

[631846] CONE CLUTCH TIGRES #318B

[631855] CONE CLUTCH TIGRES #277

[633314] HANDLE TIGRES #352

[633512] Lofrans Motor X2(<2010)/Kobra 1000W/12V 2T #961A

[633513] Lofrans Motor X2(<2010)/Kobra 1000W/24V 2T #961A

[633530] SPRING TIGRES #342

[634845] Washer Tigres #344

[634851] Washer TIGRES #325

[634852] Washer Kobra #339

[635271] STRIPPER TIGRES #335

[635272] STRIPPER TIGRES #335A

[635339] PAWL LEOPARD #470A

[635444] OIL PLUG TC0 3/8

[635510] WINGNUT TIGRES #317 CRO

[635548] EMERGENCY WHEEL TIGRES ALU #340

[635686] Worm Kobra #473

[635918] Spring for TIGRES- KOBRA-CAYMAN #1326

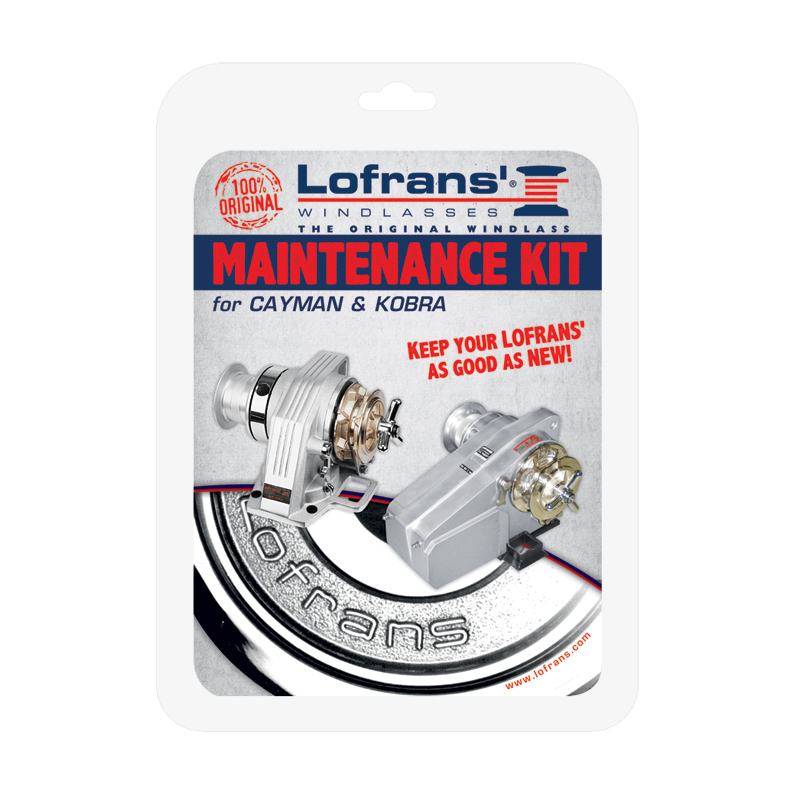

[72048] MAINTENANCE KIT CAYMAN AND KOBRA

Main Features

Box includes:

Windlass assembly filled with oil
Dual direction solenoid pack
Handle or lever
CD instruction manual

Get in touch

Code	Description	Motor size	Power Supply	Maximum Pull	Working load (kg)	Amps at Working Load (A)	Line Speed at W.L	Max Line Speed	Net Weight	Circuit Breaker	Type	Gypsy For Chain
	WINDLASS H. KOBRA ALU G+D 1000W/12V 8-5/16"BBB	1000 W	12 V	1250 kg	170	150	16 m/min	32 m/min	21 kg	-	With Drum	8 mm, ISO 4565 / DIN 766
	WINDLASS H. KOBRA ALU G+D 1000W/24V 10 3/8 HT	1000 W	24 V	1325 kg	170	80	17 m/min	33 m/min	21 kg	187332	With Drum	10 mm, ISO 4565
	WINDLASS H. KOBRA ALU G+D 1000W/12V 10 3/8 HT	1000 W	12 V	1250 kg	170	150	16 m/min	32 m/min	21 kg	187333	With Drum	10 mm, ISO 4565
	WINDLASS H. KOBRA ALU G+D 1000W/24V 10DIN766	1000 W	24 V	1325 kg	170	80	17 m/min	33 m/min	21 kg	187332	With Drum	10 mm, DIN 766
	WINDLASS H. KOBRA ALU G+D 1000W/12V 6mm	1000 W	12 V	1250 kg	170	150	16 m/min	32 m/min	21 kg	-	With Drum	6 mm, ISO 4565 / DIN 766
	WINDLASS H. KOBRA ALU G+D 1000W/12V 10DIN766	1000 W	12 V	1250 kg	170	150	16 m/min	32 m/min	21 kg	187333	With Drum	10 mm, DIN 766
	WINDLASS H. KOBRA ALU G+D 1000W/24V 6mm	1000 W	24 V	1325 kg	170	80	17 m/min	33 m/min	21 kg	-	With Drum	6 mm, ISO 4565 / DIN 766
	WINDLASS H. KOBRA ALU G+D 1000W/24V 8-5/16"BBB	1000 W	24 V	1325 kg	170	80	17 m/min	33 m/min	21 kg	-	With Drum	8 mm, ISO 4565 / DIN 766
610008	WINDLASS H. KOBRA ALU G+D 1000W/24V 7mmISO-1/4" G40	1000 W	24 V	1325 kg	170	80	17 m/min	33 m/min	21 kg	187332	With Drum	7 mm, ISO 4565 / DIN 766

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

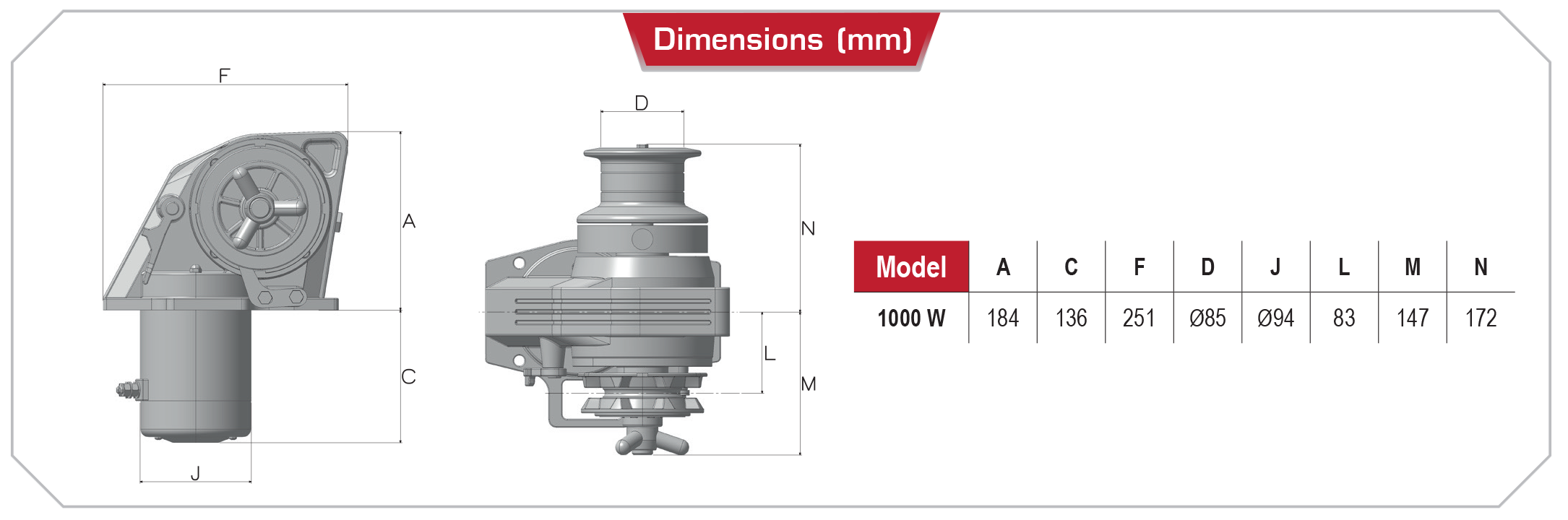

Technical Information
