GECKO Stern Windlass ALU 12V only Rope
It features horizontal configuration for easy installation in the stern of the boat inside the anchor locker compartment, keeping the boat's appearance unaffected.
Its installation needs very limited space, as the motor/gearbox can rotate up to 180°at 60° increments.
Available in two different configurations, for installation in the port or starboard side of the transom. Each unit is equipped with a handle, rope guide, pressure finger and control box.
Available in 2 motor versions, 12V 600W and 900W.
An ideal anchoring system for vessels from 20 to 45 feet.
Main features:
- IP67 motor cover
- Anodised marine aluminium gearbox
- Automatic free fall operation with the push of a button
- Automatic stop function for carefree anchoring
- For use with 12/14/16 mm 3-strand or leaded rope
- Compact design
- Easy installation
- Italian design
| Code | Description | Power Supply | Maximum Pull | Working load (kg) | Line Speed at W.L | Max Line Speed | Circuit Breaker | Control Box | Amps Work Load (A) | Watt |
|---|---|---|---|---|---|---|---|---|---|---|

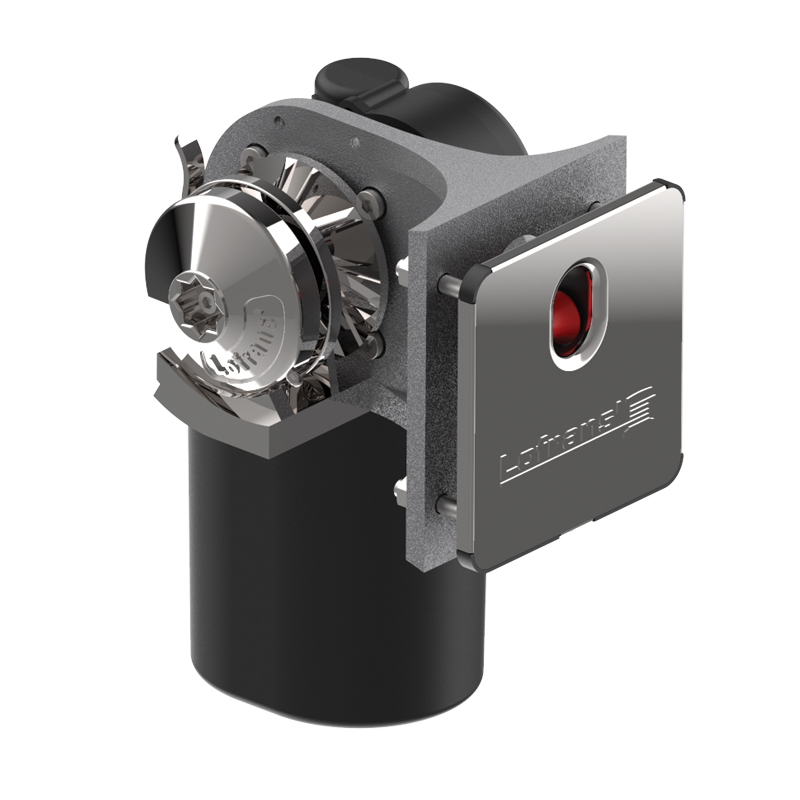

![[] WINDLASS STERN GECKO ALU 900W/12V ONLY ROPE image](https://www.lofrans.com/images/items/itm_636633_636645.jpg)
|
WINDLASS STERN GECKO ALU 900W/12V ONLY ROPE | 12V | 700 | 125 | 20 | 25 | 187332 | Included in the package | 80 | 900 |
|
|
WINDLASS STERN GECKO ALU 600W/12V ONLY ROPE | 12V | 630 | 95 | 18 | 24 | 187331 | Included in the package | 65 | 600 |
