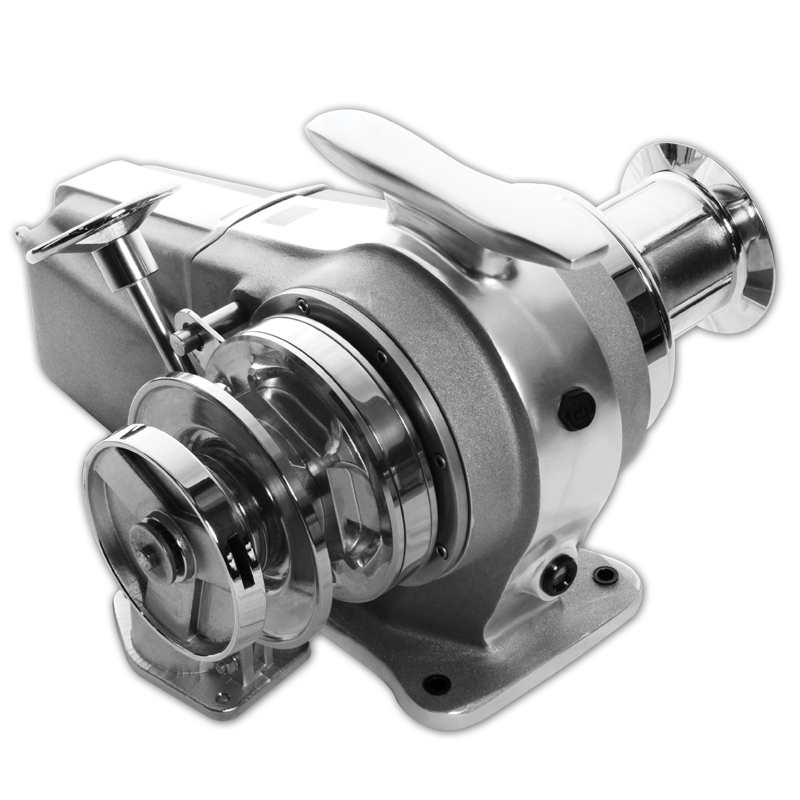

FALKON - Horizontal Windlass

Place Order

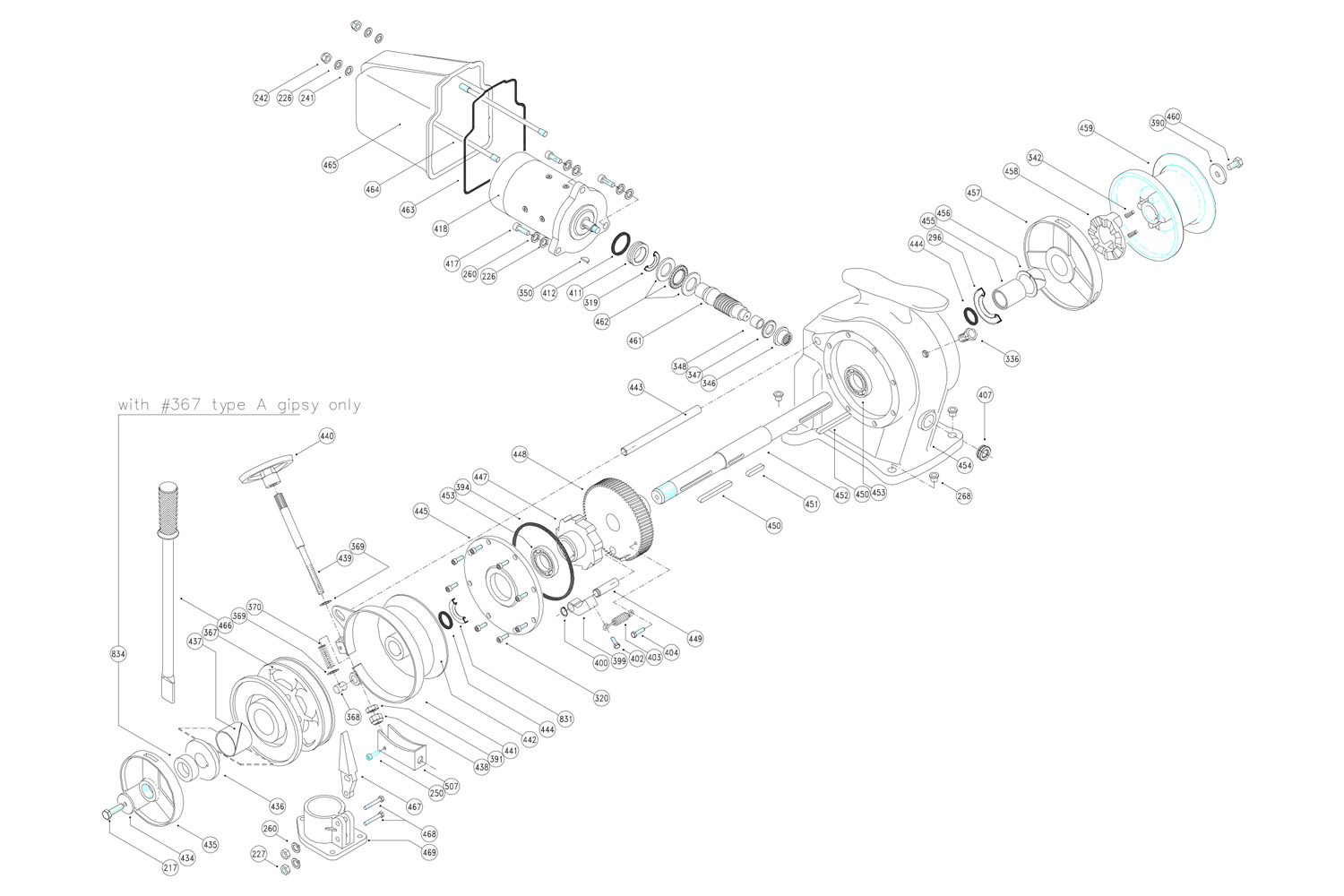

[601383] KIT STUD M8X285 #464

[601433] KIT BUSH TIGRES #268

[601900] MOTOR COVER TIGRES #465B WHI

[634655] MOTOR COVER TIGRES #465A ALU

[630781] MAIN SHAFT FALKON #452

[630912] CHAIN PIPE FALKON #469 BRA

[630937] BUSH FALKON #456

[630938] BUSH FALKON #437A

[630940] BUSH FALKON #437C

[630996] LOFRANS GYPSY Falkon/Titan/PRJ2000/X4/SX3.5 8mmISO4565/DIN766 #367A

[631033] LOFRANS GYPSY Falkon/Titan/PRJ2000/X4/SX3.5 1/2" BBB #367F

[631036] LOFRANS GYPSY Falkon/Titan/PRJ2000/X4/SX3.5 1/2" G40 #367E

[631059] LOFRANS GYPSY Falkon/Titan/PRJ2000/X4 14mm#367G

[631124] LOFRANS GYPSY Falkon/Titan 3/8" G40 #367I

[631132] Lofrans' GYPSY FALKON/TITAN/PRJ2000/X4/SX3.5 10-3/8DIN766-BBB #367C INOX

[636570] Lofrans' GYPSY FALKON/TITAN/PRJ2000/X4 10mmISO-3/8 HT #367B INOX

[636572] Lofrans' GYPSY FALCON/TITAN/PRJ2000/X4 12-13DIN766 #367D INOX

[631381] DRUM FALKON UPPER PART #839A

[631475] DRUM FALKON LOWER PART #840

[634823] Washer Ercole H. #1004

[631403] BRAKE COVER FALKON #507A CRO

[631516] BRACKET FALKON #447

[631548] Wormwheel Falkon #448

[631573] BEARING RING CP32035 #347

[631586] BODY FLANGE FALKON #445 ALU

[631706] GEARCASE FALKON #454A ALU

[631753] BEARING 6206 2Z #453

[631765] BEARING 51106 #462

[631802] DOG CLUTCH FALKON #458 STB

[631851] CONE CLUTCH FALKON #436

[631870] Cone Clutch FALKON #442

[631916] SPACER FALKON #834

[631935] SPACER FALKON #455

[631940] SPACER FALKON #411

[633252] SEAL TIGRES #463

[633260] BEARING RING IM 15 2016 4 #348

[633317] HANDLE FALKON #466

[633426] SIGHTGLASS TIGRES #407

[633530] SPRING TIGRES #342

[633540] SPRING FALKON #370

[633545] SPRING FALKON #403

[634371] Lofrans Motor Falkon 1700W/12V #418G

[634372] Lofrans Motor Falkon 1700W/24V #418H

[634613] Brake pivot Falkon #439 inox

[634615] Brake pivot Falkon #443 inox

[634616] Pivot Falkon #449

[634625] Pivot Falkon #368

[634814] BEARING RAX 720 #346

[635291] STRIPPER FALKON #467

[635323] PAWL FALKON #1108

[635444] OIL PLUG TC0 3/8

[635483] Brake Hand wheel Falkon #440 CRO

[635518] EMERGENCY WHEEL FALKON #457 CRO POR

[635524] CLUTCH NUT FALKON #435 CRO

[635693] WORM FALKON #461

[636569] Lofrans' Brake FALKON with Brake lining #441

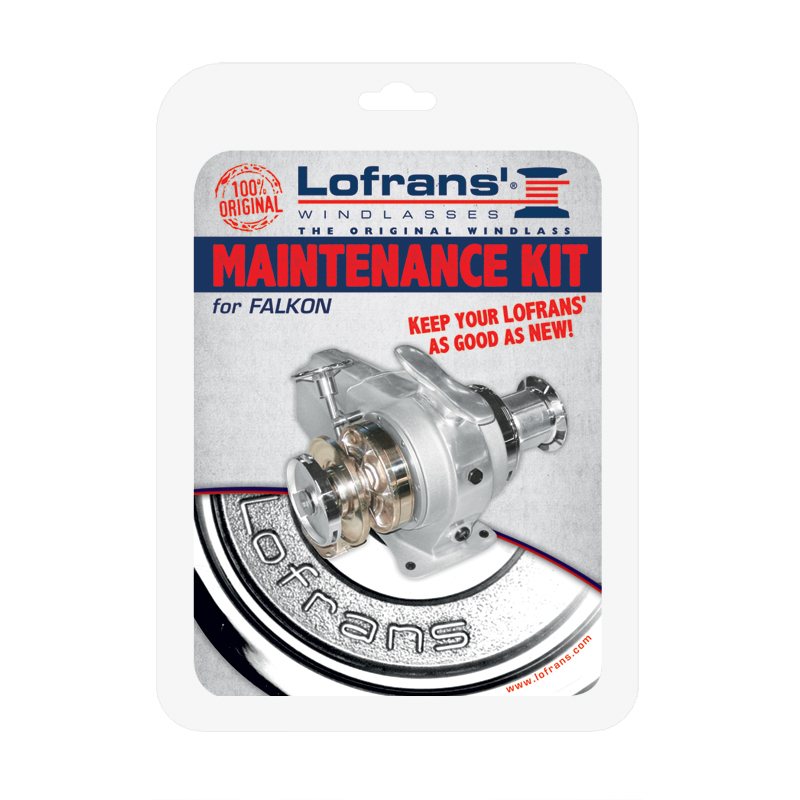

[72051] MAINTENANCE KIT FALKON

Main Features:

Get in touch

Code	Description	Motor size	Power Supply	Maximum Pull	Working load (kg)	Amps at Working Load (A)	Line Speed at W.L	Max Line Speed	Net Weight	Circuit Breaker	Type	Gypsy For Chain
	WINDLASS H. FALKON ALU G+D 1700W/12V 10 3/8 HT	1700 W	12 V	1700 kg	215	210	14 m/min	33 m/min	55 kg	187334	Gypsy & Drum	10 mm, ISO 4565
	WINDLASS H. FALKON ALU G+D 1700W/12V 12-13DIN766	1700 W	12 V	1700 kg	215	210	14 m/min	33 m/min	55 kg	187334	Gypsy & Drum	12 mm, ISO 4565 / 13 mm, DIN 766
	WINDLASS H. FALKON ALU G+D 1700W/24V 12-13DIN766	1700 W	24 V	1800 kg	215	100	15 m/min	33 m/min	55 kg	187332	Gypsy & Drum	12 mm, ISO 4565 / 13 mm, DIN 766
	WINDLASS H. FALKON ALU G+D 1700W/24V 10 3/8 HT	1700 W	24 V	1800 kg	225	100	15 m/min	33 m/min	55 kg	187332	Gypsy & Drum	10 mm, ISO 4565
	WINDLASS H. FALKON ALU G+D 1700W/12V 10DIN766	1700 W	12 V	1700 kg	215	210	14 m/min	33 m/min	55 kg	187334	Gypsy & Drum	10 mm, DIN 766
	WINDLASS H. FALKON ALU G+D 1700W/24V 10DIN766	1700 W	24 V	1800 kg	225	100	15 m/min	33 m/min	55 kg	187332	Gypsy & Drum	10 mm, DIN 766
	WINDLASS H. FALKON ALU G+D 1700W/12V 1/2 HT	1700 W	12 V	1700 kg	215	210	14 m/min	33 m/min	55 kg	187334	Gypsy & Drum	1/2 HT
	WINDLASS H. FALKON ALU 2G 1700W/24V 10 3/8 HT	1700 W	24 V	1800 kg	225	100	15 m/min	33 m/min	65 kg	187332	Gypsy & Gypsy	10 mm, ISO 4565
	WINDLASS H. FALKON ALU G+D 1700W/24V 1/2 HT	1700 W	24 V	1800 kg	225	100	15 m/min	33 m/min	55 kg	187332	Gypsy & Drum	1/2 HT
610009	WINDLASS H. FALKON ALU 2G 1700W/12V 1/2" G40	1700 W	12 V	1700 kg	215	210	14 m/min	33 m/min	55 kg	187334	Gypsy & Gypsy	1/2 HT
610010	WINDLASS H. FALKON ALU 2G 1700W/24V 1/2" G40	1700 W	24 V	1800 kg	225	100	15 m/min	33 m/min	55 kg	187332	Gypsy & Gypsy	1/2 HT
610018	WINDLASS H. FALKON ALU G+D 2200W/48V 12-13DIN766	2200 W	48 V	2700 kg	360	60	12 m/min	33 m/min	55 kg	187332	Gypsy & Drum	12 mm, ISO 4565 / 13 mm, DIN 766
	WINDLASS H. FALKON ALU G+D 2000W/24V 12-13DIN766	2000 W	24 V	2640 kg	330	110	19 m/min	33 m/min	57 kg	187333	With Drum	12 mm, ISO 4565 / 13 mm, DIN 766
	WINDLASS H. FALKON ALU G+D 2000W/24V 10 3/8 HT	2000 W	24 V	2640 kg	330	110	19 m/min	33 m/min	57 kg	187333	Gypsy & Drum	10mm, ISO 4565 / 3/8
	WINDLASS H. FALKON ALU G+D 2000W/24V 7/16"HT	2000 W	24 V	2640 kg	330	110	19 m/min	33 m/min	57 kg	187333	Gypsy & Drum	7/16
	WINDLASS H. FALKON ALU G+D 2000W/24V 1/2 HT	2000 W	24 V	2640 kg	330	110	19 m/min	33 m/min	57 kg	187333	Gypsy & Drum	1/2
	WINDLASS H. FALKON ALU 2G 2000W/24V 10 3/8 HT	2000 W	24 V	2640 kg	330	110	19 m/min	33 m/min	57 kg	187333	Gypsy & Gypsy	10mm, ISO 4565 / 3/8
636835	WINDLASS H. FALKON ALU G+D 2200W/48V 10 3/8 HT	2200 W	48 V	2700 kg	360	60	12 m/min	33 m/min	55 kg	187332	Gypsy & Drum	10mm, ISO 4565 / 3/8
636836	WINDLASS H. FALKON ALU G+D 2000W/24V 10DIN766	2000 W	24 V	2640 kg	330	110	19 m/min	33 m/min	57 kg	187333	Gypsy & Drum	10 mm, DIN 766

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.
