Ercole Verticale - Vertical Windlass

Main Features:

  • Under-deck compact dimensions
  • Construction in mirror polished AISI 3 16L stainless steel
  • High torque latest generation electric motor able to provide the power needed in all marine conditions
  • Band brake to assist in chain control, thanks to an easy-to-manage large handwheel
  • Special high-grip drum with independent rotation from the Gypsy, for warping function
  • Indepent Gypsy and drum operation
  • Manual chain release
  • Manual override to recover the chain and anchor in case of electrical failure
  • Internal ratchet to prevent chain jams into the chain cocker which could damage the deck
  • Chain counter support integrated by the sensor inserted in the base and the magnet in the Gypsy
  • Available also in counter clockwise rotation
  • High efficiency Lofrans planetary-worm screw gearbox made in anodised black aluminium with gears made in high mechanical strength material
  • Heavy duty electric motor
  • Power: DC, AC and hydraulic
  • Available in custom versions

Standard Equipment:

  • Dual direction solenoid pack (only for 24V version)
  • Handle
  • Gypsy for chain
  • CD / Instruction manual

Please contact us for additional detailed documentation.

Get in touch
Code Description Amps at Working Load (A) Control Box Gypsy For Chain Hydraulic Flow Hydraulic Pressure Line Speed at W.L Max Line Speed Maximum Pull Motor size Net Weight Power Supply Type Pull Type Working load (kg)

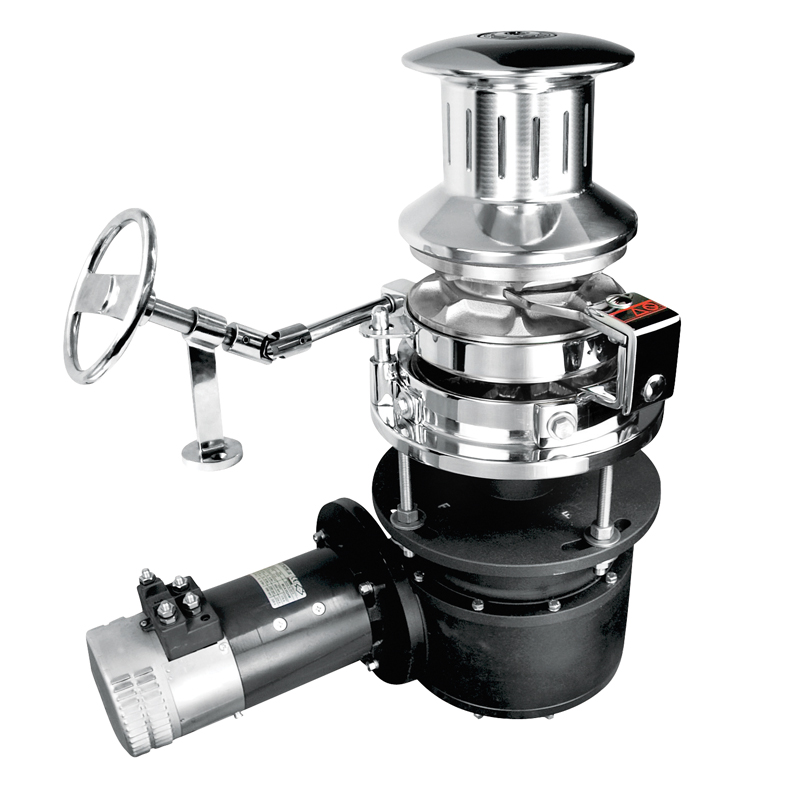

[] WINDLASS V. ERC. S/S G+D CW 3500W/24V 14mm image
WINDLASS V. ERC. S/S G+D CW 3500W/24V 14mm 120 Included in package 14 mm - - 8 m/min 15 m/min 4500 kg 3500 W 180 kg 24 V With Drum CW 1075
[] WINDLASS V. ERC. S/S G+D CCW 3500W/24V 14mm image
WINDLASS V. ERC. S/S G+D CCW 3500W/24V 14mm 120 Included in package 14 mm - - 8 m/min 15 m/min 4500 kg 3500 W 180 kg 24 V With Drum CCW 1075
[] WINDLASS V. ERC. S/S G+D CW 4000W/400V 14mm image
WINDLASS V. ERC. S/S G+D CW 4000W/400V 14mm 9 - 14 Switchboard available separately 14 mm - - 12 m/min 12 m/min 5500 kg 4000 W 180 kg 400 V With Drum CW 1310
[] WINDLASS V. ERC. S/S G+D CCW 4000W/400V 14mm image
WINDLASS V. ERC. S/S G+D CCW 4000W/400V 14mm 9 - 14 Switchboard available separately 14 mm - - 12 m/min 12 m/min 5500 kg 4000 W 180 kg 400 V With Drum CCW 1310
[] WINDLASS V. ERC. S/S G+D CCW 3500W/24V 16mm image
WINDLASS V. ERC. S/S G+D CCW 3500W/24V 16mm 120 Included in package 16 mm ISO 4565 - - 8 m/min 15 m/min 4500 kg 3500W 180 kg 24 V With Drum CCW 1075
[] WINDLASS V. ERC. S/S G+D CW 3500W/24V 16mm image
WINDLASS V. ERC. S/S G+D CW 3500W/24V 16mm 120 Included in package 16 mm ISO 4565 - - 8 m/min 15 m/min 4500 kg 3500W 180 kg 24 V With Drum CW 1075
[] WINDLASS V. ERC. S/S G+D CCW 4000W/400V 16mm image
WINDLASS V. ERC. S/S G+D CCW 4000W/400V 16mm 9 - 14 Switchboard available separately 16 mm ISO 4565 - - 12 m/min 12 m/min 5500 kg 4000 W 180 kg 400 V With Drum CCW 1310
[] WINDLASS V. ERC. S/S G+D CW 4000W/400V 16mm image
WINDLASS V. ERC. S/S G+D CW 4000W/400V 16mm 9 - 14 Switchboard available separately 16 mm ISO 4565 - - 12 m/min 12 m/min 5500 kg 4000 W 180 kg 400 V With Drum CW 1310
600407 WINDLASS V. ERC. S/S G+D CW 5500W/400V 14mm 9 - 14 Switchboard available separately 14 mm - - 12 m/min 12 m/min 6500 kg 5500 W 200 kg 400 V With Drum CW 1550
[] WINDLASS V. ERC. S/S R. G+D 5500W/400V 16mm image
WINDLASS V. ERC. S/S R. G+D 5500W/400V 16mm 9 - 14 Switchboard available separately 16 mm ISO 4565 - - 12 m/min 12 m/min 6500 kg 5500 W 200 kg 400 V With Drum CCW 1550
[] WINDLASS V. ERC. S/S G+D CW 5500W/400V 16mm image
WINDLASS V. ERC. S/S G+D CW 5500W/400V 16mm 9 - 14 Switchboard available separately 16 mm ISO 4565 - - 12 m/min 12 m/min 6500 kg 5500 W 200 kg 400 V With Drum CW 1550
[] WINDLASS V. ERC. S/S G+D HYD/ 14mm image
WINDLASS V. ERC. S/S G+D HYD/ 14mm - - 14 mm 40 lt/min 200 bar 12 m/min 12 m/min 6500 kg Hydraulic-11cc 165 kg - With Drum CW 1550
[] WINDLASS V. ERC. S/S R. G+D HYD/ 14mm image
WINDLASS V. ERC. S/S R. G+D HYD/ 14mm - - 14 mm 40 lt/min 200 bar 12 m/min 12 m/min 6500 kg Hydraulic-11cc 165 kg - With Drum CCW 1550
[] WINDLASS V. ERC. S/S G+D HYD/ 16mm image
WINDLASS V. ERC. S/S G+D HYD/ 16mm - - 16 mm ISO 4565 40 lt/min 200 bar 12 m/min 12 m/min 6500 kg Hydraulic-11cc 165 kg - With Drum CW 1550
[] WINDLASS V. ERC. S/S R. G+D HYD/ 16mm image
WINDLASS V. ERC. S/S R. G+D HYD/ 16mm - - 16 mm ISO 4565 40 lt/min 200 bar 12 m/min 12 m/min 6500 kg Hydraulic-11cc 165 kg - With Drum CCW 1550
[] WINDLASS V.ERC. S/S G+D 7500W EB 3PH 50HZ 400V 17,5STUDL SHORT ROLL. W/ JOINT-BRAKE 25° D.THICK.100 image
WINDLASS V.ERC. S/S G+D 7500W EB 3PH 50HZ 400V 17,5STUDL SHORT ROLL. W/ JOINT-BRAKE 25° D.THICK.100 20 - 25 Switchboard available separately 17,5mm STUDL - - 12 m/min 12 m/min 7500 kg 7500 W 225 kg 400 V With Drum CW 2000
[] WINDLASS V.ERC. S/S R.G+D 7500W EB 3PH 50HZ 400V 17,5STUDL SHORT ROLL. W/ JOINT-BRAKE 25°D.THICK.100 image
WINDLASS V.ERC. S/S R.G+D 7500W EB 3PH 50HZ 400V 17,5STUDL SHORT ROLL. W/ JOINT-BRAKE 25°D.THICK.100 20 - 25 Switchboard available separately 17,5mm STUDL - - 12 m/min 12 m/min 7500 kg 7500 W 225 kg 400 V With Drum CCW 2000

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

Manuals
Technical Information
Deck Templates
3D Models

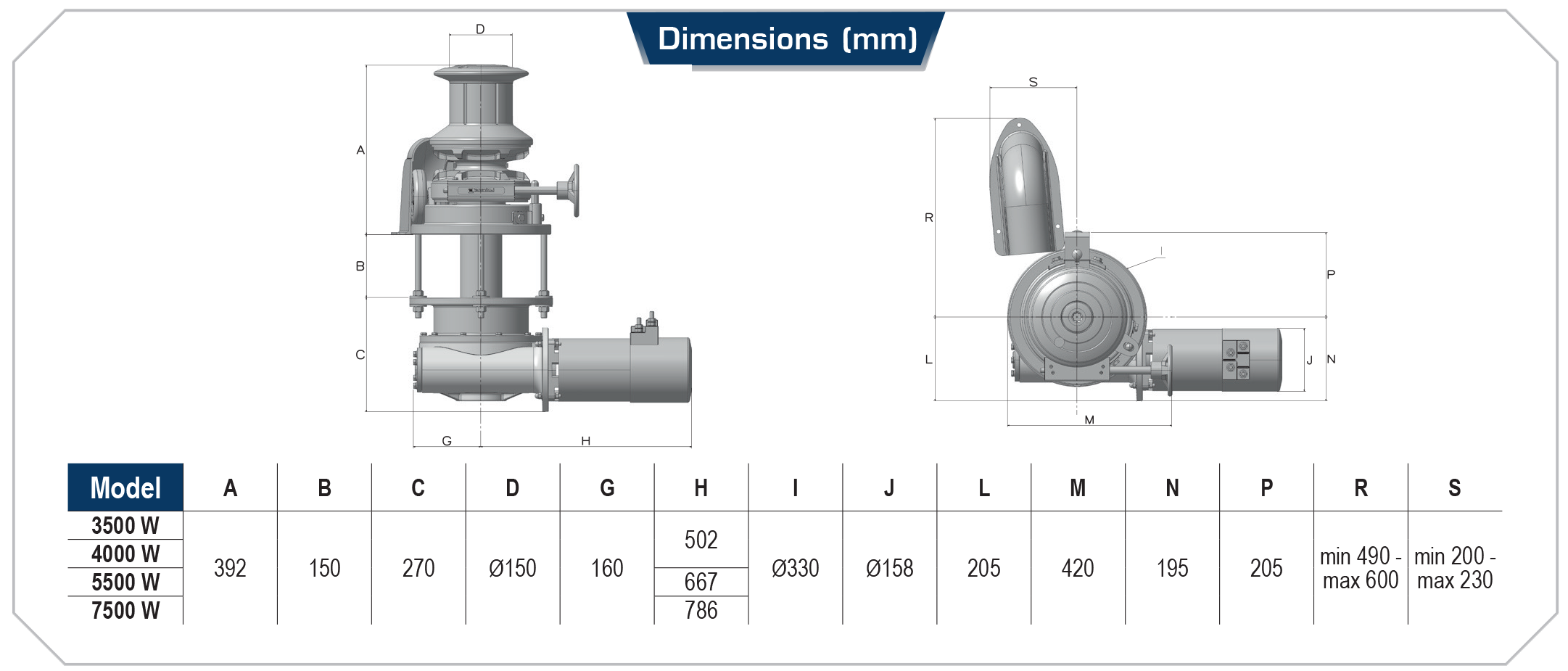

Ercole vertical updated dimensions
