DRUM WINCH - Multifunctional Winch
Main Features
- Fast and easy rope & chain anchoring for boats up to 40 feet / 12 metres
- Marine AISI 316 Stainless Steel drum, base & backing plate
- Anodised aluminium gear case
- Heavy-duty electric motor and gearbox
- IP67 motor cover
- Gearbox with 8 adjustable positions
Standard Equipment:
- Drum winch assembly
- Dual direction solenoid pack
- Rocker switch
- Circuit breaker
- Backing plate
- Fixing hardware
- 70 metres of rope (Ø12mm 3-strand)
- 8 metres of chain (Ø6mm)
| Code | Description | Motor size | Power Supply | Amps at Working Load (A) | Net Weight | Max. Pull-Empty Drum | Max. Pull-Full Drum | Max. Retrieval Rate | Max. Fall Rate | Rope/chain Capacity |
|---|---|---|---|---|---|---|---|---|---|---|

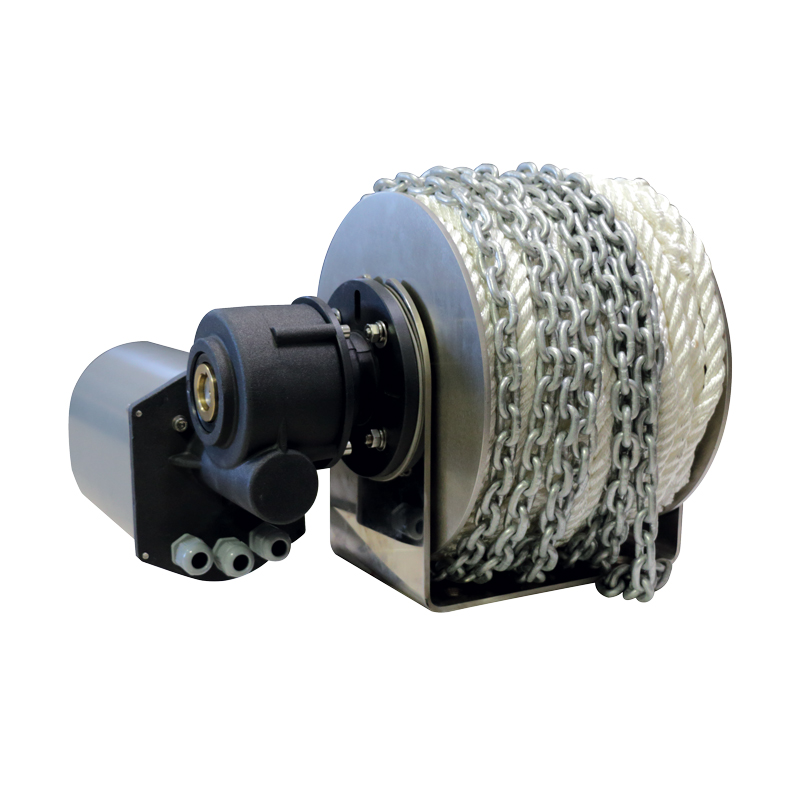

![[] Lofrans' DRUM WINCH 800W/12V WITH ROPE & CHAIN image](https://www.lofrans.com/images/items/itm_Drum-Winch.jpg)
|
Lofrans' DRUM WINCH 800W/12V WITH ROPE & CHAIN | 800 W | 12 V | 110 | 17kg | 700kg | 170kg | 36 (m/min) | 50 (m/min) | 12mm nylon 3-strand rope / 6mm chain |

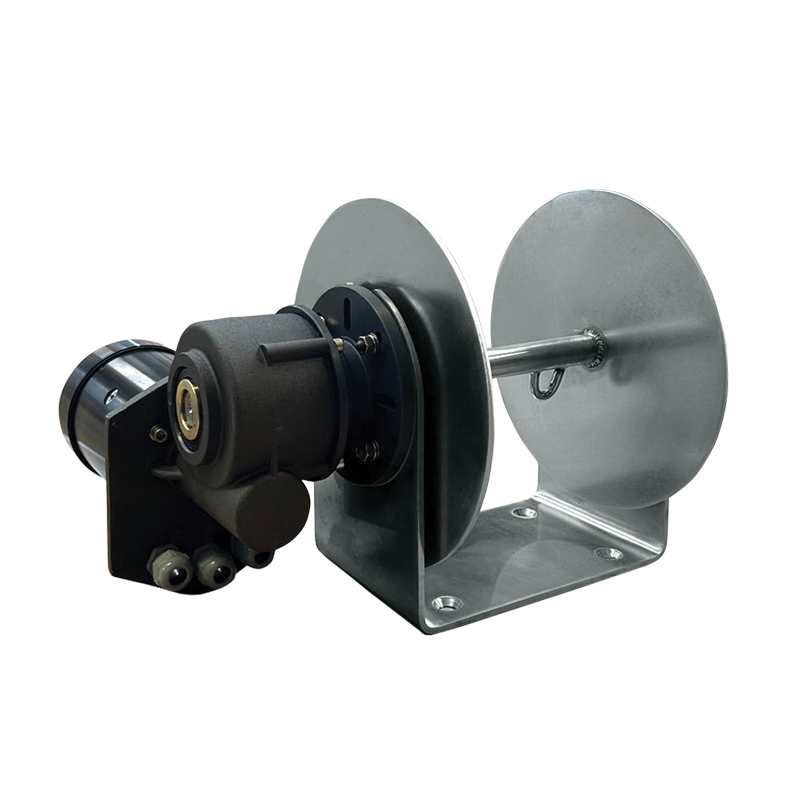

![[] Lofrans' DRUM WINCH 800W/12V image](https://www.lofrans.com/images/items/itm_636759.jpg)
|
Lofrans' DRUM WINCH 800W/12V | 800 W | 12 V | 110 | 17kg | 700kg | 170kg | 36 (m/min) | 50 (m/min) | - |
|
|
Lofrans' DRUM WINCH 1000W/12V WITH ROPE & CHAIN | 1000 W | 12 V | 135 | 19kg | 900kg | 220kg | 45 (m/min) | 50 (m/min) | 12mm nylon 3-strand rope / 6mm chain |
|
|
Lofrans' DRUM WINCH 1000W/12V | 1000 W | 12 V | 135 | 19kg | 900kg | 220kg | 45 (m/min) | 50 (m/min) | - |
| 636788 | Lofrans' DRUM WINCH 1000W/24V | 1000 W | 24 V | 70 | 19kg | 950kg | 240kg | 47 (m/min) | 50 (m/min) | - |
| 636789 | Lofrans' DRUM WINCH 1000W/24V WITH ROPE & CHAIN | 1000 W | 24 V | 70 | 19kg | 950kg | 240kg | 47 (m/min) | 50 (m/min) | 12mm nylon 3-strand rope / 6mm chain |
