DORADO - Horizontal Windlass
Main Features:
- Marine aluminium anodised body
- Manual chain release
- Rope chain management by the spring load arm
- Heavy duty rated IP66 electric motor
- Automatic free fall available as option
- Control Box included in package
| Code | Description | Motor size | Power Supply | Maximum Pull | Working load (kg) | Amps at Working Load (A) | Line Speed at W.L | Max Line Speed | Net Weight | Circuit Breaker | Type | Gypsy For Chain | Gypsy For Rope | Model type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

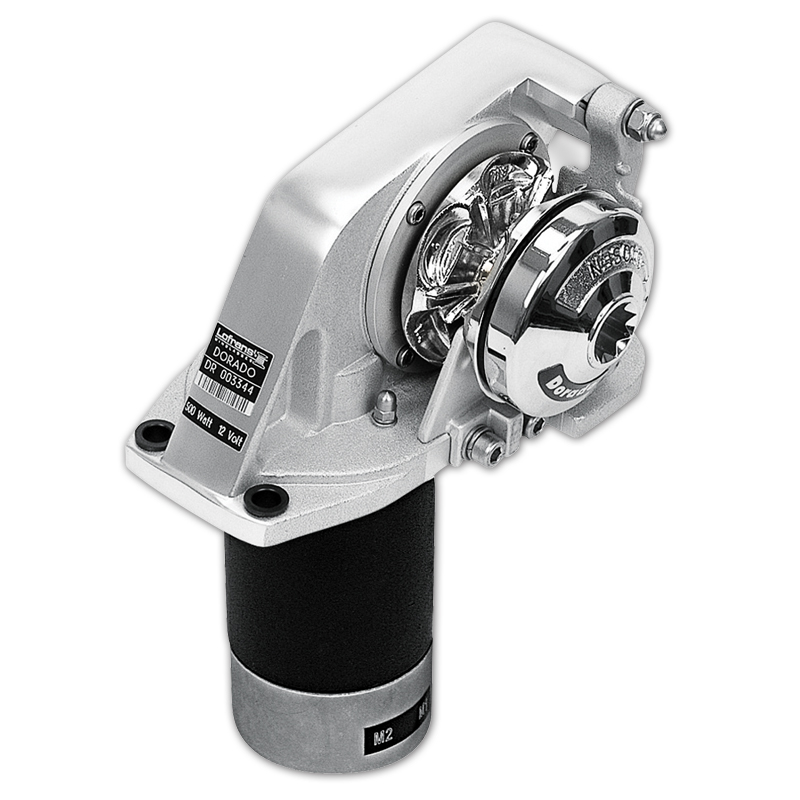

![[] WINDLASS H. DOR. ALU R. 500W/12V 6-3/16"BBB image](https://www.lofrans.com/images/items/itm_DORADO.jpg)
|
WINDLASS H. DOR. ALU R. 500W/12V 6-3/16"BBB | 500 W | 12 V | 600 kg | 70 | 65 | 18 m/min | 24 m/min | 10 kg | - | Low Profile | 6 mm, ISO 4565 | 10-12 mm 3-strand <br> 14mm 3-strand rope | port |
|
|
WINDLASS H. DOR. ALU R. 800W/12V 8-5/16"BBB-5/16"HT | 800 W | 12 V | 650 kg | 80 | 80 | 20 m/min | 25 m/min | 11 kg | - | Low Profile | 8 mm, ISO 4565 / DIN 766 | 12 mm 3-strand<br> 14mm 3-strand rope | port |
|
|
WINDLASS H. DOR. ALU R. 800W/12V 6-3/16"BBB | 800 W | 12 V | 650 kg | 80 | 80 | 20 m/min | 25 m/min | 11 kg | - | Low Profile | 6 mm, ISO 4565 | 10-12 mm 3-strand<br>14mm 3-strand rope | port |
To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.
Technical Information
Deck Templates
