CAYMAN - Horizontal Windlass

Place Order

[601368] KIT STUD M8X75 #292A

[601440] KIT STUD M6X180 #354

[601706] MOTOR COVER CAYMAN88 #356B WHI

[634673] MOTOR COVER CAYMAN88 #356A ALU

[630737] MAIN SHAFT CAYMAN88 #329

[630968] LOFRANS GYPSY KOBRA/CAYMAN/TIGRES/ROYAL 6mmISO4565/DIN766 #276A

[630978] LOFRANS GYPSY KOBRA/CAYMAN/TIGRES/ROYAL 7mmISO-1/4" G40 #276B

[630994] GYPSY KOBRA/CAYMAN/TIGRES/ROYAL 8mmISO4565/DIN766 #276C

[631011] GYPSY KOBRA/CAYMAN/TIGRES/ROYAL 10mmISO-3/8 HT #276E

[631077] LOFRANS GYPSY KOBRA/CAYMAN/TIGRES/ROYAL Ø5/16 HT#276D

[631118] LOFRANS GYPSY KOBRA/CAYMAN/TIGRES/ROYAL 10mmDIN766 #276F

[631120] LOFRANS GYPSY KOBRA/CAYMAN/TIGRES/ROYAL 3/8 BBB #276G

[631122] LOFRANS GYPSY KOBRA/CAYMAN/TIGRES/ROYAL 3/8 PC #276H

[631267] SEAL CAYMAN88 #338

[631460] DRUM TIGRES #343 ALU

[631545] Wormwheel Cayman #835

[631573] BEARING RING CP32035 #347

[631596] COVER KOBRA #321 ALU

[631668] GEARCASE CAYMAN88 #337A ALU

[631764] BEARING 51105 #311

[631770] BEARING 6005 2RS #903 INOX

[631798] DOG CLUTCH TIGRES #341

[631800] DOG CLUTCH CAYMAN88 #327

[631842] CONE CLUTCH TIGRES #318A

[631846] CONE CLUTCH TIGRES #318B

[631855] CONE CLUTCH TIGRES #277

[631919] SPACER TIGRES #333

[633243] SEAL CAYMAN88 #355

[633260] BEARING RING IM 15 2016 4 #348

[633314] HANDLE TIGRES #352

[633530] SPRING TIGRES #342

[634365] Lofrans Motor Cayman 700W/12V #353A

[634366] DC MOTOR CAYMAN88 #353B 24V 0,7KW

[634367] Lofrans Motor Cayman 1000W/12V #353C

[634368] DC MOTOR CAYMAN88 #353D 24V 1,0KW

[634814] BEARING RAX 720 #346

[634845] Washer Tigres #344

[634851] Washer TIGRES #325

[634852] Washer Kobra #339

[635271] STRIPPER TIGRES #335

[635342] PAWL TIGRES #332

[635444] OIL PLUG TC0 3/8

[635510] WINGNUT TIGRES #317 CRO

[635548] EMERGENCY WHEEL TIGRES ALU #340

[635685] Worm Cayman #349

[635918] Spring for TIGRES- KOBRA-CAYMAN #1326

[72048] MAINTENANCE KIT CAYMAN AND KOBRA

Main Features:

Get in touch

Code	Description	Motor size	Power Supply	Maximum Pull	Working load (kg)	Amps at Working Load (A)	Line Speed at W.L	Max Line Speed	Net Weight	Circuit Breaker	Type	Gypsy For Chain

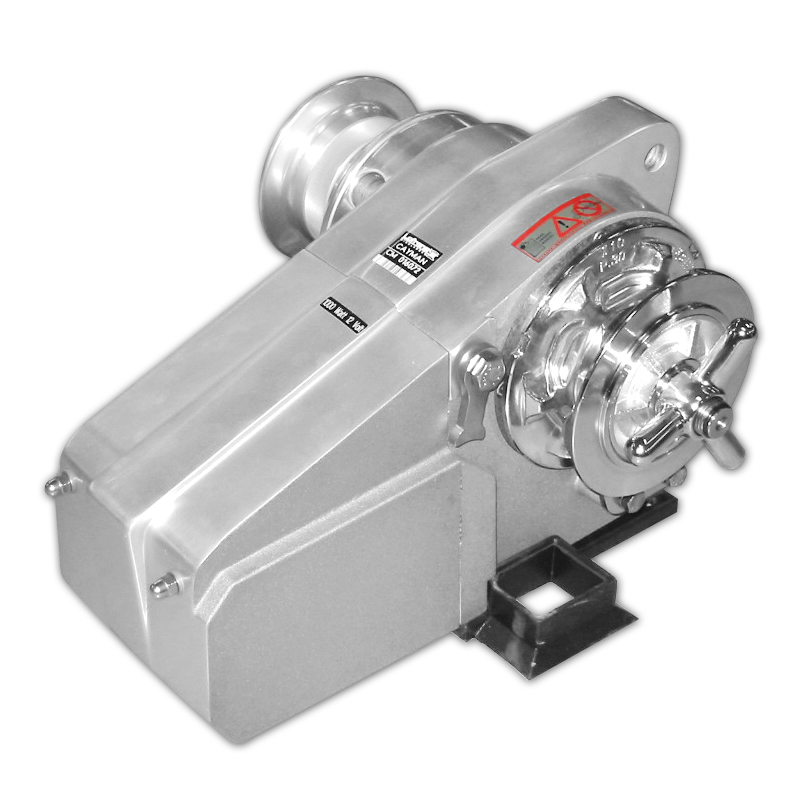

	WINDLASS H. CAYMAN ALU G+D 700W/12V 8-5/16"BBB	700 W	12 V	1000 kg	100	110	21 m/min	32 m/min	24 kg	187332	With Drum	8 mm, ISO 4565<br>DIN 766
	"WINDLASS H. CAYMAN ALU G+D 1000W/12V 8-5/16" BBB"	1000 W	12 V	1250 kg	170	150	16 m/min	32 m/min	25 kg	187333	With Drum	8 mm, ISO 4565<br>DIN 766
	WINDLASS H. CAYMAN ALU G+D 1000W/12V 10 3/8 HT	1000 W	12 V	1250 kg	170	150	16 m/min	32 m/min	25 kg	187333	With Drum	10 mm, ISO 4565
	WINDLASS H. CAYMAN ALU G+D 700W/12V 6mm	700 W	12 V	1000 kg	100	110	21 m/min	32 m/min	24 kg	187332	With Drum	6 mm, ISO 4565<br>DIN 766
	WINDLASS H. CAYMAN ALU G+D 1000W/12V 10DIN766	1000 W	12 V	1250 kg	170	150	16 m/min	32 m/min	25 kg	187333	With Drum	10 mm, DIN 766
	WINDLASS H. CAYMAN ALU G+D 1000W/24V 10DIN766	1000 W	24 V	1325 kg	170	80	17 m/min	33 m/min	25 kg	187332	With Drum	10 mm, DIN 766
610007	WINDLASS H. CAYMAN ALU G+D 1000W/24V 3/8" PC	1000 W	24 V	1325 kg	170	80	17 m/min	33 m/min	25 kg	187332	With Drum	3/8" PC
610017	WINDLASS H. CAYMAN ALU G+D 1300W/48V 10 3/8 HT	1300 W	48 V	1340 kg	170	35	16 m/min	22 m/min	25 kg	187331	With Drum	10 mm, ISO 4565

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.
