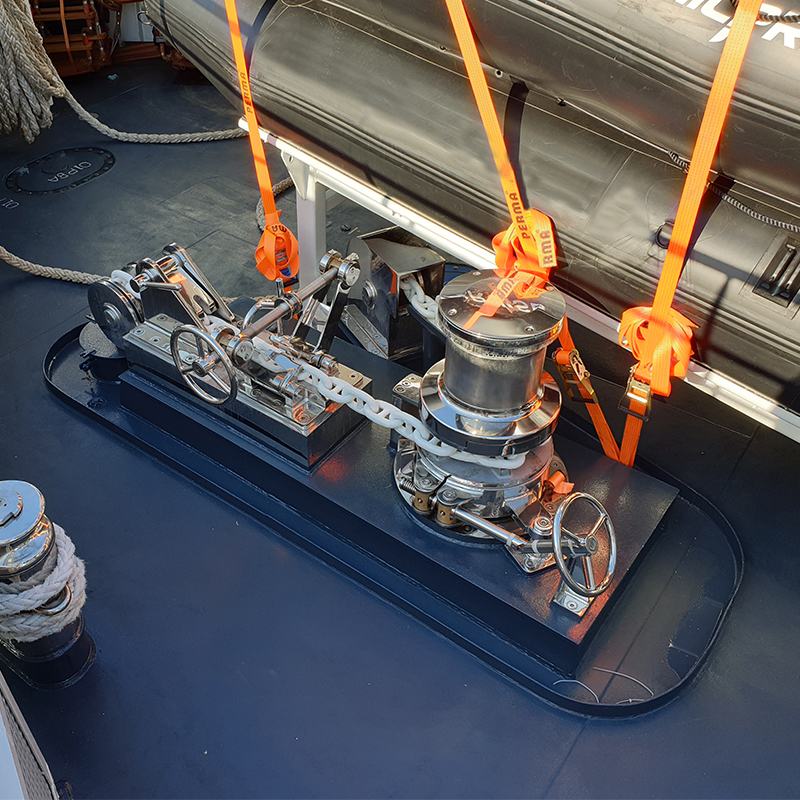

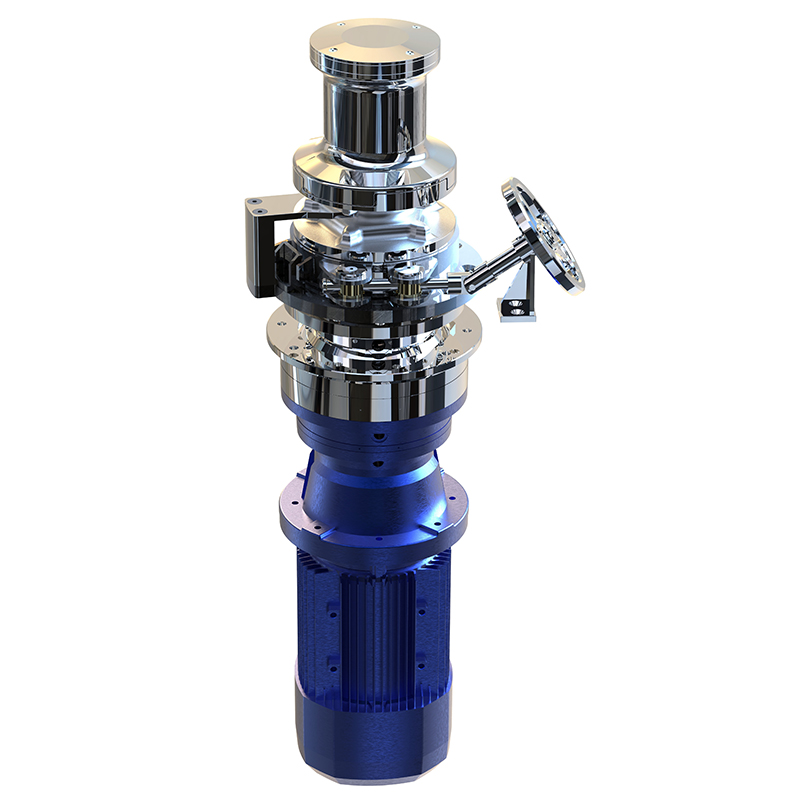

ZEUS - Vertical Windlass

The ULTIMATE ANCHORING SOLUTION for MEGA YACHTS

Main Features:

- Fully customised for all parts to fit your needs
- Independent operation of gypsy and capstan
- High torque planetary gearbox
- 42mm stud-link chain 12.000kgs max. pull
- AC or HYD high torque latest generation motors for all marine conditions

ZEUS - Vertical Windlass_photo-0 ZEUS - Vertical Windlass_photo-1 ZEUS - Vertical Windlass_photo-2 ZEUS - Vertical Windlass_photo-3 ZEUS - Vertical Windlass_photo-4 ZEUS - Vertical Windlass_photo-5 ZEUS - Vertical Windlass_photo-6 ZEUS - Vertical Windlass_photo-7

Notes:

* All ZEUS windlasses are subject to customized solution

** Mention that ZEUS range goes customized to 42mm STDL chain



Printer Friendly Version

Code Model type Gipsy For Chain Control Box Line Speed at W.L Max Line Speed Maximum Pull Working load (kg) Motor size Power Supply Net Weight
636127 ZEUS 12000 HYD 34mm Switchboard available separately / included in optional HPU 11 m/min 19 m/min 12600 kg 10700 - - 1790 kg
636148 ZEUS 12000 AC 34mm Switchboard available separately 11 m/min 19 m/min 12600 kg 10200 22 kW 400V 1940 kg
636149 ZEUS 12000 AC 32mm Switchboard available separately 11 m/min 19 m/min 12600 kg 10200 22 kW 400V 1900 kg
636150 ZEUS 9500 AC 32mm Switchboard available separately 11 m/min 19 m/min 10500 kg 9000 18,2 kW 400V 1100 kg
636151 ZEUS 9500 AC 30mm Switchboard available separately 11 m/min 19 m/min 9200 kg 7000 15 kW 400V 1000 kg
636152 ZEUS 9500 AC 28mm Switchboard available separately 11 m/min 19 m/min 9200 kg 7000 15 kW 400V 960 kg
636153 ZEUS 7500 AC 28mm Switchboard available separately 11 m/min 19 m/min 8500 kg 7000 15 kW 400V 700 kg
636154 ZEUS 7500 AC 26mm Switchboard available separately 11 m/min 19 m/min 8000 kg 6500 11 kW 400V 680 kg
636155 ZEUS 7500 AC 24mm Switchboard available separately 11 m/min 19 m/min 7700 kg 6500 11 kW 400V 650 kg
636156 ZEUS 5500 AC 24mm Switchboard available separately 11 m/min 19 m/min 6000 kg 3600 9 kW 400V 390 kg
636157 ZEUS 5500 AC 22mm Switchboard available separately 11 m/min 19 m/min 5400 kg 3000 7,5 kW 400V 360 kg
636158 ZEUS 5500 AC 20mm Switchboard available separately 11 m/min 19 m/min 5000 kg 2100 5,5 kW 400V 320 kg
636159 ZEUS 12000 HYD 32mm Switchboard available separately / included in optional HPU 11 m/min 19 m/min 12600 kg 10700 - - 1750 kg
636160 ZEUS 9500 HYD 32mm Switchboard available separately / included in optional HPU 11 m/min 19 m/min 10500 kg 9200 - - 1020 kg
636161 ZEUS 9500 HYD 30mm Switchboard available separately / included in optional HPU 11 m/min 19 m/min 9100 kg 7500 - - 980 kg
636162 ZEUS 9500 HYD 28mm Switchboard available separately / included in optional HPU 11 m/min 19 m/min 9100 kg 7500 - - 940 kg
636163 ZEUS 7500 HYD 28mm Switchboard available separately / included in optional HPU 11 m/min 19 m/min 8000 kg 7000 - - 650 kg
636164 ZEUS 7500 HYD 26mm Switchboard available separately / included in optional HPU 11 m/min 19 m/min 7950 kg 7000 - - 610 kg
636165 ZEUS 7500 HYD 24mm Switchboard available separately / included in optional HPU 11 m/min 19 m/min 7600 kg 7000 - - 590 kg
636166 ZEUS 5500 HYD 24mm Switchboard available separately / included in optional HPU 11 m/min 19 m/min 5900 kg 3800 - - 360 kg
636167 ZEUS 5500 HYD 22mm Switchboard available separately / included in optional HPU 11 m/min 19 m/min 5400 kg 3300 - - 340 kg
636168 ZEUS 5500 HYD 20mm Switchboard available separately / included in optional HPU 11 m/min 19 m/min 5000 kg 2500 - - 290 kg
