Recovery Capstan TENDER WINCH

Recovery Capstan TENDER WINCH

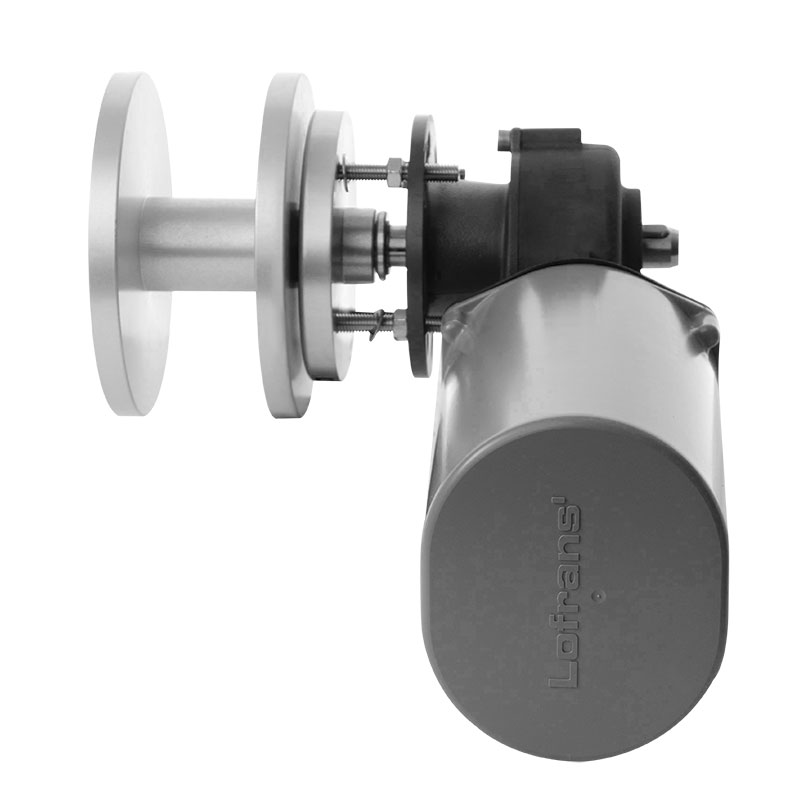

The Tender Winch models are units designed to recover a small tender or a jet ski. They are assembled using a heavy duty electric motor and gearbox, with the motor contained in an IP67 rated cover to be protected from humidity and sea water, and by strong aluminum drum able to contain the necessary belt.

They are available at a power rating of 700 W at 12 V or 24 V.

The drum is driven by use of a high torque worm gear box with the gear case made in black anodised marine aluminum. The gears are made of special bronze and steel in order to withstand the high stress during operation.

The top part is made by a simple construction of an anodised marine aluminum for the base and drum, and a stanless steel AISI 4 3 1 shaft.

Code Construction Motor size Power Supply Maximum Pull Working load (kg) Working Load (A) Line Speed at W.L Max Line Speed Net Weight Circuit Breaker Control Box
030054 Marine Anodised Aluminum 500 W 12 V 425 kg 85 75 15 m/min 20 m/min 9 kg Included in package
602122 Marine Anodised Aluminum 700 W 12 V 625 kg 125 80 15 m/min 20 m/min 9 kg Included in package
602123 Marine Anodised Aluminum 700 W 24 V 550 kg 110 45 15 m/min 20 m/min 9 kg Included in package

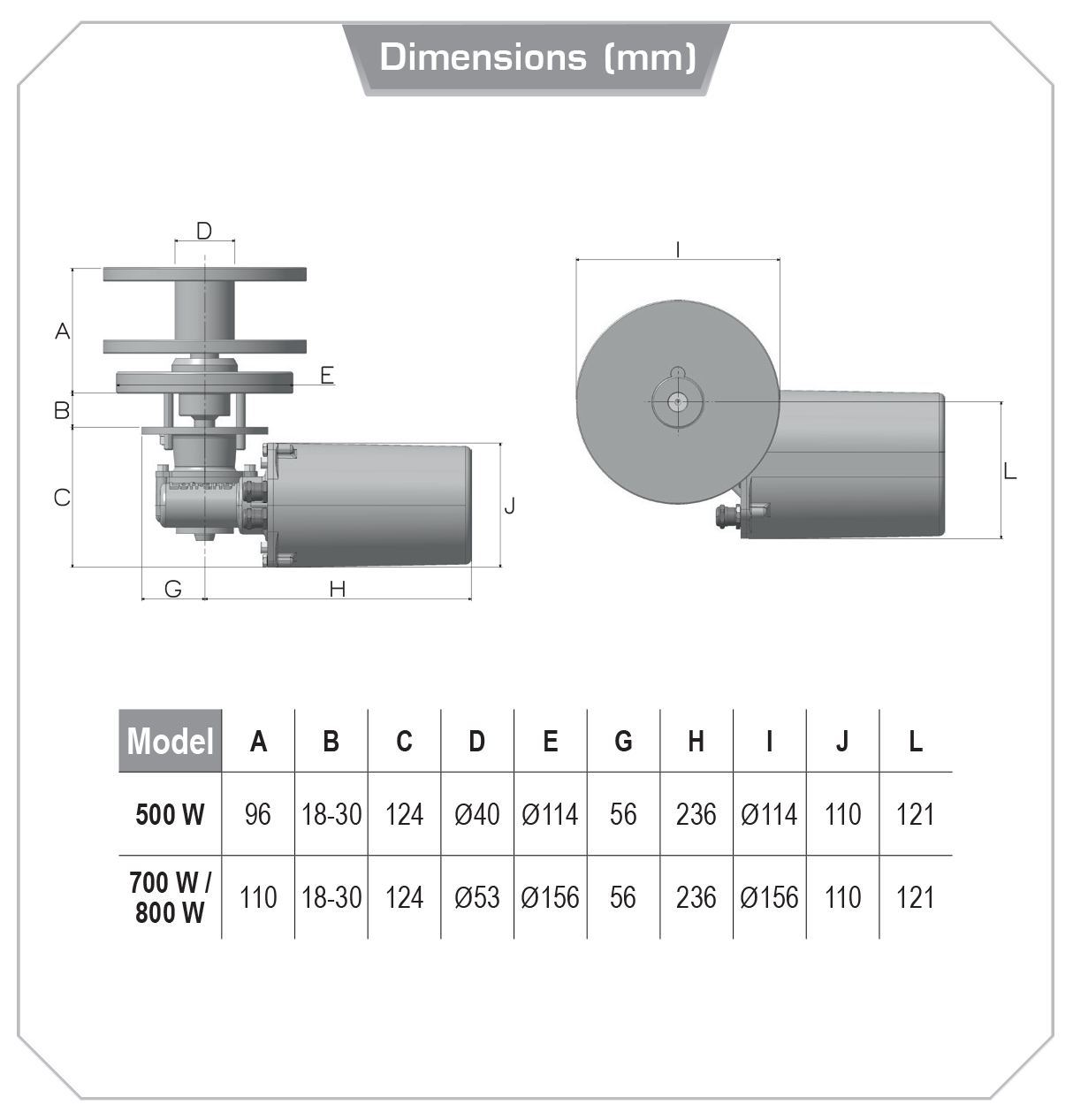

Model A B C D E G H I J L
500W 96 18-30 124 Ø40 Ø114 56 236 Ø145 110 121
700W 110 18-30 124 Ø53 Ø156 56 236 Ø180 110 121
