TENDER CAPSTAN ALU 1000W/24V

TENDER CAPSTAN ALU 1000W/24V



• Designed to recover a small tender or a jet ski

• Marine anodised aluminium construction

• Heavy-duty electric motor and gearbox

• IP67-rated motor cover with high protection from humidity & sea water

• Strong aluminium drum able to contain the necessary belt

• The drum is driven by using a high torque worm gear box with the gear case made in black marine anodised aluminium

• The gears are made of bronze and steel in order to withstand the high stress during the intensive use

• Wall-mounted installation

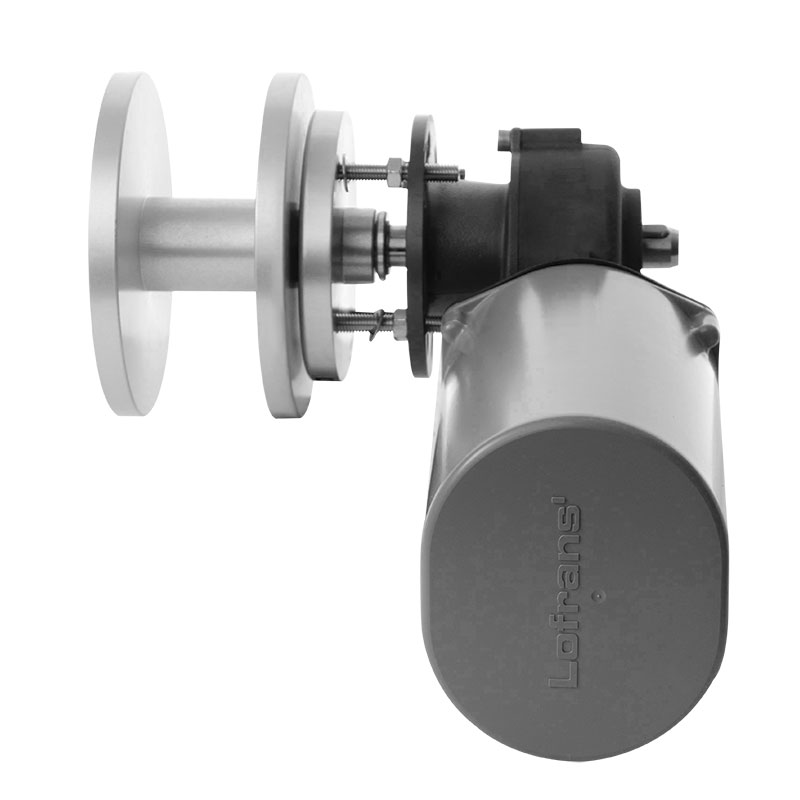

TENDER CAPSTAN ALU 1000W/24V_photo-0

Code Motor size Power Supply Maximum Pull Working load (kg) Amps at Working Load (A) Line Speed at W.L Max Line Speed Net Weight with Drum (kg)
601004 1000 W 12 V | 24 V 1060 kg 200 kg 135 | 70 23 m/min 40 m/min 9-10 kg
