Capstan ST4000

Main Features

  • Luxury stainless steel base and drum
  • Heavy duty electric motor
  • Anodised marine aluminium gearbox
Capstan ST4000_photo-0




Printer Friendly Version

Code Working Load (A) Control Box Hydraulic Flow Hydraulic Pressure Line Speed at W.L Max Line Speed Maximum Pull Motor size Net Weight Power Supply Working load (kg)
423284 - Switchboard available separately 11 m/min 11 m/min 5000 kg 5000 W 105 kg 400 V 1200
600077 215 Included in package - - 10 m/min 15 m/min 4500 kg 3500 W 120 kg 24 V 850
600771 - Switchboard available separately - - 10 m/min 10 m/min 5000 kg 4000 W 120 230-400 850
636110
File
Installation And User's Manual ~ Capstans - T500, T700, T1000, T1500, T1700, T2000, T2500, ST1000, ST1500, ST1700, ST2000, ST2500, ST3000, ST4000 Download
Capstans ST Series Brochure Download
3D CAD Model ~ T4000 Download
Deck Template ~ T4000 (dwg) Download
Deck Template ~ T4000 (pdf) Download

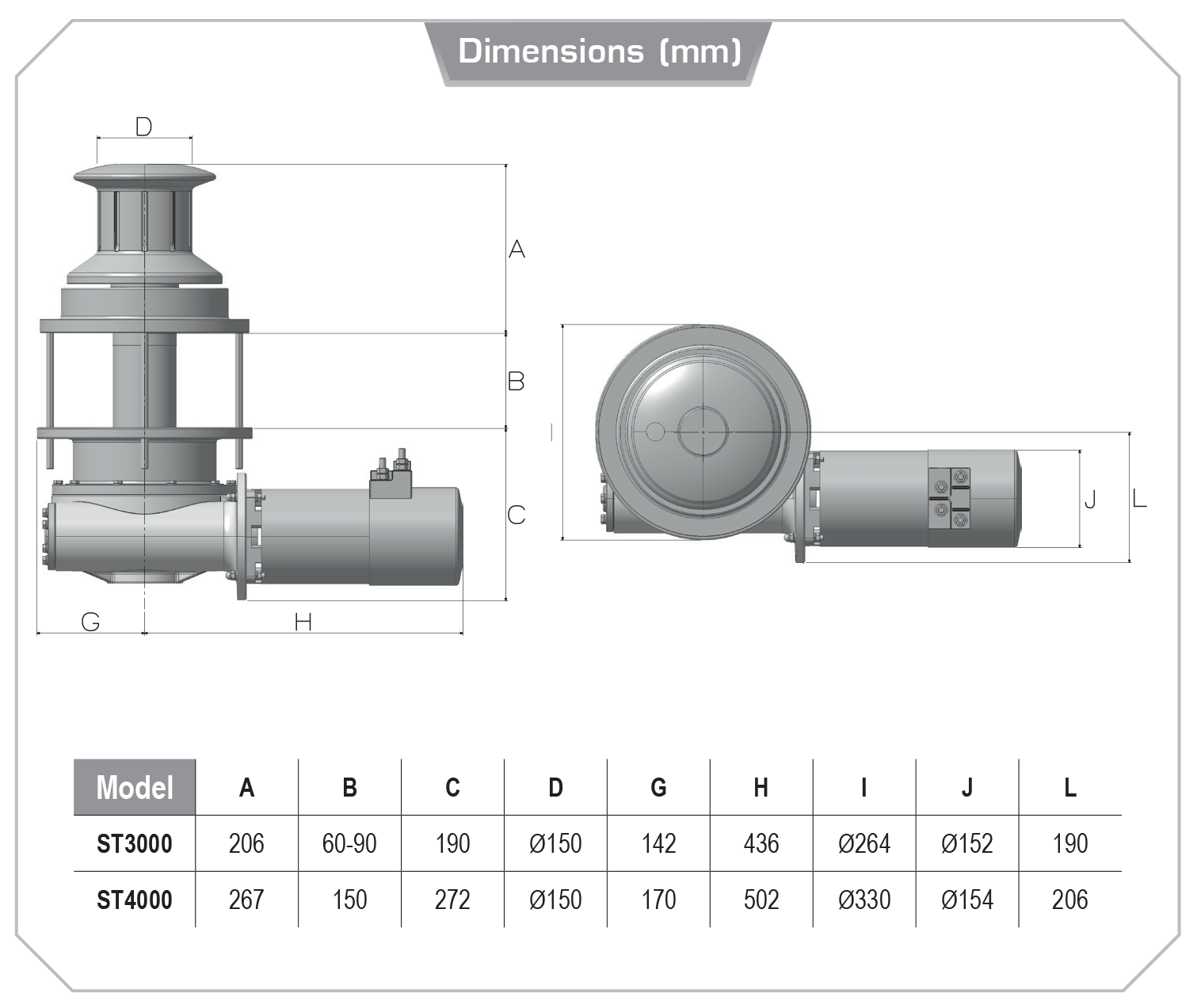

Model A B C D G H I J L
T4000 267 150 272 Ø150 170 502 Ø340 Ø154 206

Accessories

Foot Switch
Foot Switch
Learn more...
Control Switch
Control Switch
Learn more...
Radio Remote Control
Radio Remote Control
Learn more...
