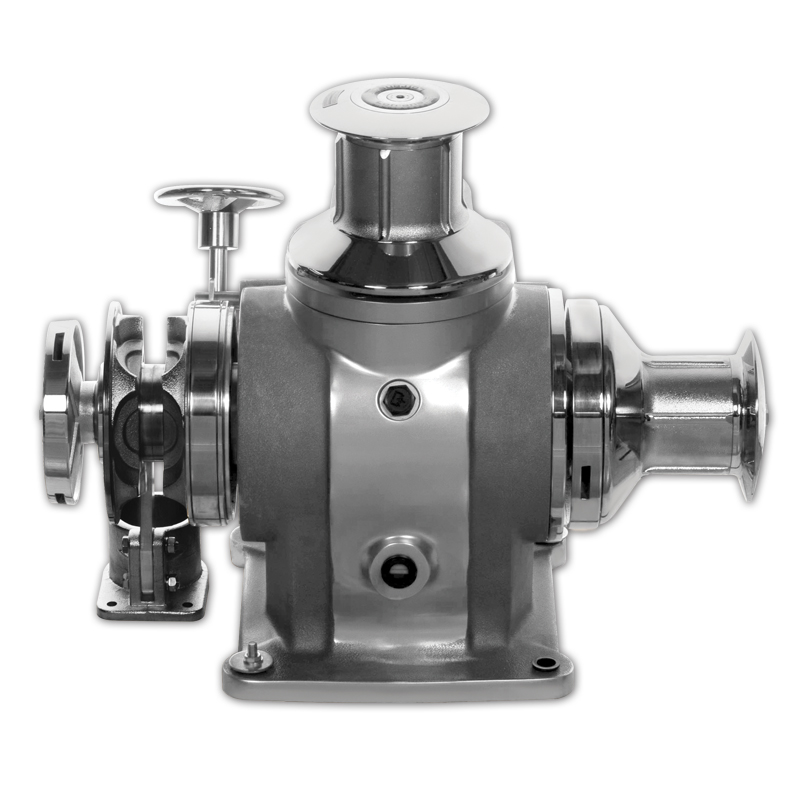

TITAN - Horizontal Windlass

TITAN - Horizontal Windlass

Main Features:

  • Marine aluminium anodised body

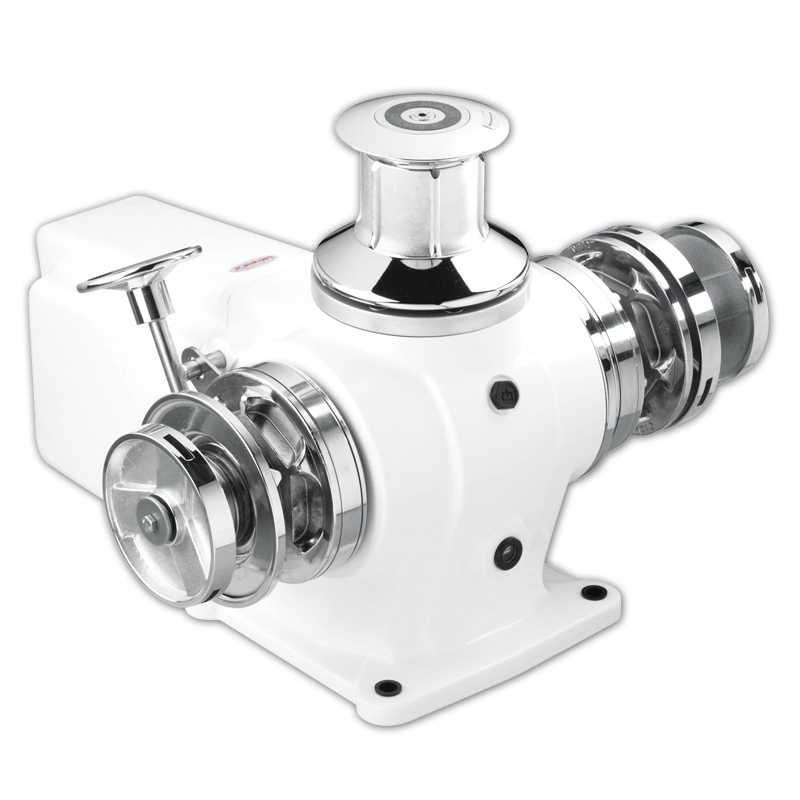

  • Available in white polyester coating
  • Indepent Gypsy and drum operation
  • Manual chain release
  • Manual override
  • Heavy duty rated IP66 electric motor




To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.


Code Circuit Breaker Construction Control Box Gypsy For Chain Hydraulic Flow Hydraulic Pressure Line Speed at W.L Max Line Speed Maximum Pull Model type Motor size Net Weight Power Supply Type Amps at Working Load (A) Working load (kg)
404724 Anodised Aluminium Included in package 12 mm, ISO 4565
13 mm, DIN 766
- - 10 m/min 18 m/min 2800 kg Type A 2300 W 115 kg 24 V With Drum 140 430
426415 Anodised Aluminium Included in package 14 mm, DIN 766 - - 10 m/min 18 m/min 2800 kg Type B 2300 W 115 kg 24 V With Drum 140 430
428938 Anodised Aluminium Included in package 12 mm, ISO 4565
13 mm, DIN 766
- - 10 m/min 18 m/min 2800 kg Type B 2300 W 115 kg 24 V With Drum 140 430
600072 Anodised Aluminium Included in package 14 mm, DIN 766 - - 10 m/min 18 m/min 2800 kg Type A 2300 W 115 kg 24 V With Drum 140 430
600839
600845
600846 White Aluminium Switchboard available separately 12 mm, ISO 4565
13 mm, DIN 766
- - 11 m/min 11 m/min 2800 kg Type A 3600 W 115 kg 230-400 V With Drum - 540
600847 Anodised Aluminium Switchboard available separately 14 mm, DIN 766 - - 11 m/min 11 m/min 2800 kg Type A 3600 W 115 kg 230-400 V With Drum - 540
600865
600866
600870
600880
600881
600882
602415
602423 Anodised Aluminium - 12 mm, ISO 4565
13 mm, DIN 766
32 lt/min 200 bar 11 m/min 11 m/min 3400 kg Type A Hydraulic-9cc 95 kg - With Drum - 540
602424 Anodised Aluminium - 14 mm, DIN 766 32 lt/min 200 bar 11 m/min 11 m/min 3400 kg Type A Hydraulic-9cc 95 kg - With Drum - 540
602444
602468 Anodised Aluminium - 12 mm, ISO 4565
13 mm, DIN 766
32 lt/min 200 bar 11 m/min 11 m/min 3400 kg Type B Hydraulic-9cc 95 kg - With Drum - 540
602469 Anodised Aluminium - 14 mm, DIN 766 32 lt/min 200 bar 11 m/min 11 m/min 3400 kg Type B Hydraulic-9cc 95 kg - With Drum - 540
File
Installation And User's Manual _ Titan Horizontal Download
3D CAD Model ~ Titan A Download
3D CAD Model ~ Titan B Download
Deck Template ~ Titan A (dwg) Download
Deck Template ~ Titan A (pdf) Download
Deck Template ~ Titan B (dwg) Download
Deck Template ~ Titan B (pdf) Download
