ROYAL - Horizontal Windlass

ROYAL - Horizontal Windlass

Main Features

  • Marine aluminium anodised body
  • Indepent Gypsy and drum operation
  • Manual chain release
  • Manual override


Box includes:

Windlass assembly filled with oil
Dual direction solenoid pack

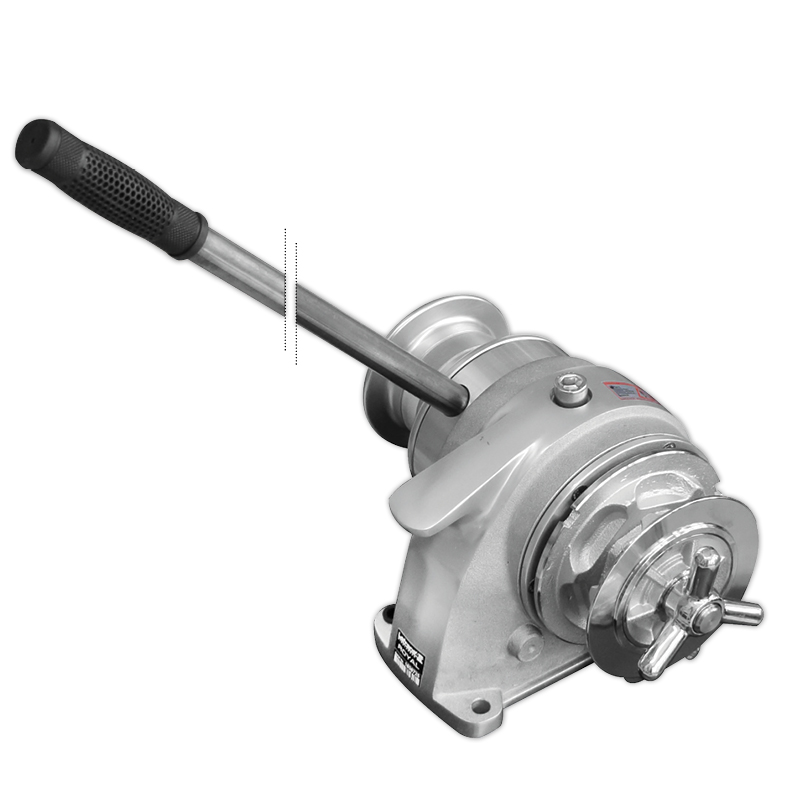

Handle or lever
CD instruction manual


ROYAL - Horizontal Windlass_photo-0

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.


Code Gipsy For Chain Maximum Pull Motor size Net Weight Type Working load (kg)
187323 6 mm, ISO 4565
DIN 766
400 kg MANUAL 10 kg With Drum 70
220002 10 mm, ISO 4565 400 kg MANUAL 10 kg With Drum 70
404725 8 mm, ISO 4565
DIN 766
400 kg MANUAL 10 kg With Drum 70
600079 10 mm, DIN 766 400 kg MANUAL 10 kg With Drum 70
600625 7 mm, ISO 4565 400 kg MANUAL 10 kg With Drum 70
File
Installation And User's Manual _ Royal Download
3D CAD Model ~ Royal Download
Deck Template ~ Royal (dwg) Download
Deck Template ~ Royal (pdf) Download
