KOBRA - Horizontal Windlass

KOBRA - Horizontal Windlass

Main Features

  • Marine aluminium anodised body
  • Indepent Gypsy and drum operation
  • Manual chain release
  • Manual override
  • Heavy duty rated IP56 electric motor
  • Automatic free fall available as option


Box includes:

Windlass assembly filled with oil
Dual direction solenoid pack
Handle or lever
CD instruction manual

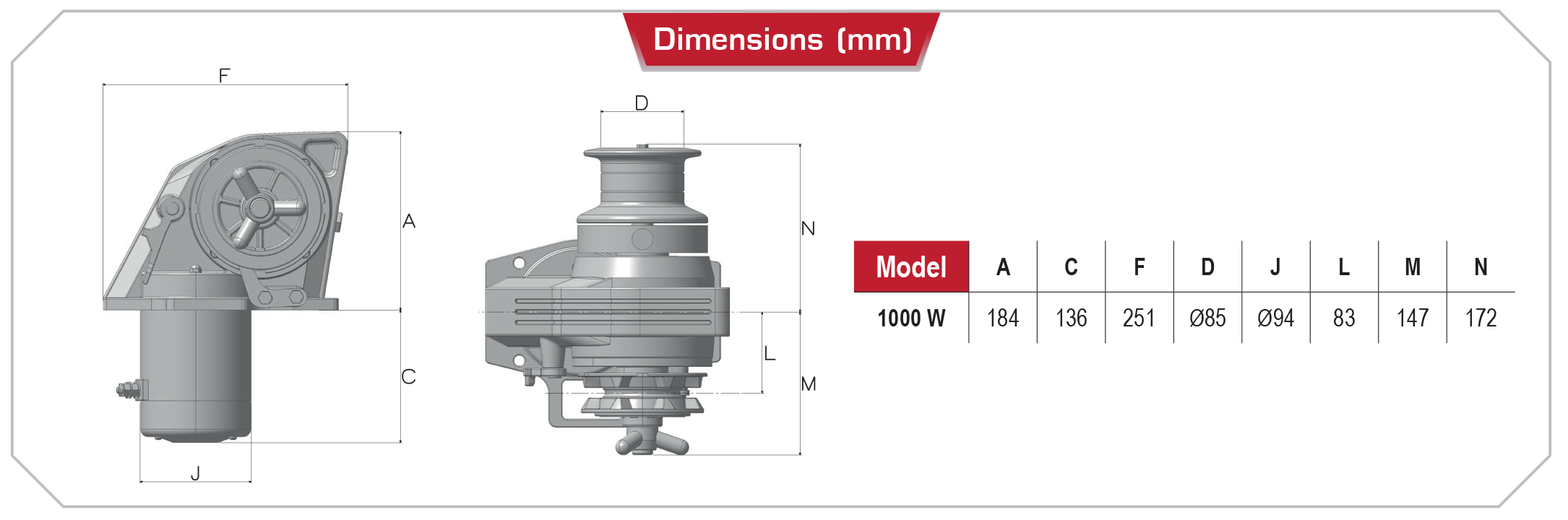

KOBRA - Horizontal Windlass_photo-0

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.


Code Amps at Working Load (A) Circuit Breaker Gypsy For Chain Line Speed at W.L Max Line Speed Maximum Pull Motor size Net Weight Power Supply Type Working load (kg)
220260 150 187333 8 mm, ISO 4565
DIN 766
16 m/min 32 m/min 1250 kg 1000 W 21 kg 12 V With Drum 170
220420 80 187332 10 mm, ISO 4565 17 m/min 33 m/min 1325 kg 1000 W 21 kg 24 V With Drum 170
428747 150 187333 10 mm, ISO 4565 16 m/min 32 m/min 1250 kg 1000 W 21 kg 12 V With Drum 170
471734 80 187332 10 mm, DIN 766 17 m/min 33 m/min 1325 kg 1000 W 21 kg 24 V With Drum 170
600051 150 187333 6 mm, ISO 4565
DIN 766
16 m/min 32 m/min 1250 kg 1000 W 21 kg 12 V With Drum 170
600052 150 187333 10 mm, DIN 766 16 m/min 32 m/min 1250 kg 1000 W 21 kg 12 V With Drum 170
600513 80 187332 6 mm, ISO 4565
DIN 766
17 m/min 33 m/min 1325 kg 1000 W 21 kg 24 V With Drum 170
600514 80 187332 8 mm, ISO 4565
DIN 766
17 m/min 33 m/min 1325 kg 1000 W 21 kg 24 V With Drum 170
File
Installation And User's Manual _ Dorado - Kobra - Razza Download
Lofrans' Oil Capacities Download
3D CAD Model ~ Kobra Download
Deck Template ~ Kobra (dwg) Download
Deck Template ~ Kobra (pdf) Download
