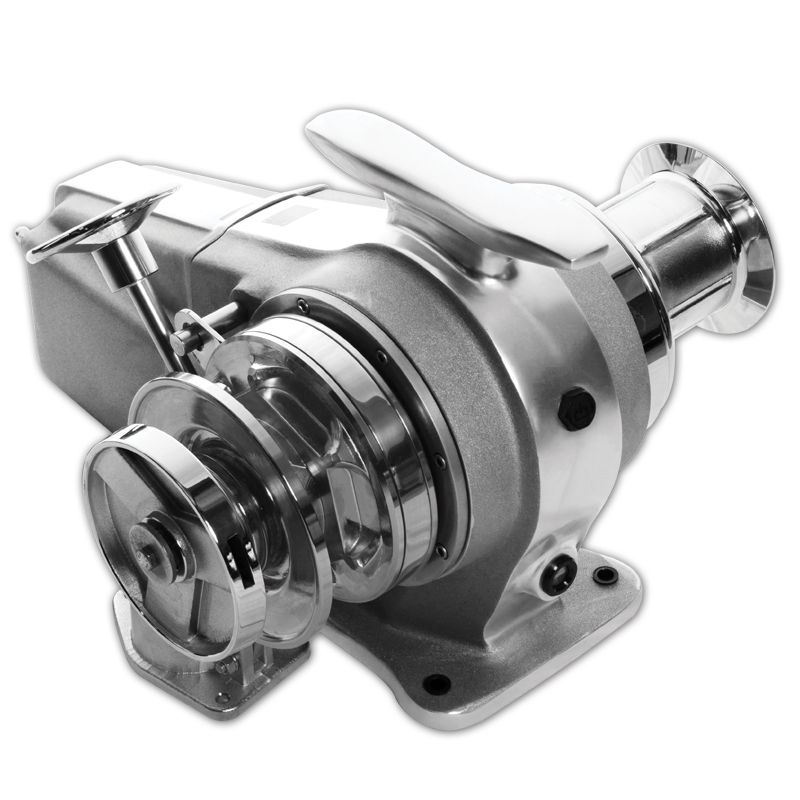

FALKON - Horizontal Windlass

Place Order

[601383] KIT STUD M8X285 #464

[601433] KIT BUSH TIGRES #268

[601900] MOTOR COVER TIGRES #465B WHI

[634655] MOTOR COVER TIGRES #465A ALU

[630781] MAIN SHAFT FALKON #452

[630912] CHAIN PIPE FALKON #469 BRA

[630937] BUSH FALKON #456

[630938] BUSH FALKON #437A

[630940] BUSH FALKON #437C

[630996] LOFRANS GYPSY Falkon/Titan/PRJ2000/X4/SX3.5 8mmISO4565/DIN766 #367A

[631033] LOFRANS GYPSY Falkon/Titan/PRJ2000/X4/SX3.5 1/2" BBB #367F

[631036] LOFRANS GYPSY Falkon/Titan/PRJ2000/X4/SX3.5 1/2" G40 #367E

[631059] LOFRANS GYPSY Falkon/Titan/PRJ2000/X4 14mm#367G

[631124] LOFRANS GYPSY Falkon/Titan 3/8" G40 #367I

[631132] Lofrans' GYPSY FALKON/TITAN/PRJ2000/X4/SX3.5 10-3/8DIN766-BBB #367C INOX

[636570] Lofrans' GYPSY FALKON/TITAN/PRJ2000/X4 10mmISO-3/8 HT #367B INOX

[636572] Lofrans' GYPSY FALCON/TITAN/PRJ2000/X4 12-13DIN766 #367D INOX

[631381] DRUM FALKON UPPER PART #839A

[631475] DRUM FALKON LOWER PART #840

[634823] Washer Ercole H. #1004

[631403] BRAKE COVER FALKON #507A CRO

[631516] BRACKET FALKON #447

[631548] Wormwheel Falkon #448

[631573] BEARING RING CP32035 #347

[631586] BODY FLANGE FALKON #445 ALU

[631706] GEARCASE FALKON #454A ALU

[631753] BEARING 6206 2Z #453

[631765] BEARING 51106 #462

[631802] DOG CLUTCH FALKON #458 STB

[631851] CONE CLUTCH FALKON #436

[631870] Cone Clutch FALKON #442

[631916] SPACER FALKON #834

[631935] SPACER FALKON #455

[631940] SPACER FALKON #411

[633252] SEAL TIGRES #463

[633260] BEARING RING IM 15 2016 4 #348

[633317] HANDLE FALKON #466

[633426] SIGHTGLASS TIGRES #407

[633530] SPRING TIGRES #342

[633540] SPRING FALKON #370

[633545] SPRING FALKON #403

[634371] Lofrans Motor Falkon 1700W/12V #418G

[634372] Lofrans Motor Falkon 1700W/24V #418H

[634613] Brake pivot Falkon #439 inox

[634615] Brake pivot Falkon #443 inox

[634616] Pivot Falkon #449

[634625] Pivot Falkon #368

[634814] BEARING RAX 720 #346

[635291] STRIPPER FALKON #467

[635323] PAWL FALKON #1108

[635444] OIL PLUG TC0 3/8

[635483] Brake Hand wheel Falkon #440 CRO

[635518] EMERGENCY WHEEL FALKON #457 CRO POR

[635524] CLUTCH NUT FALKON #435 CRO

[635693] WORM FALKON #461

[636569] Lofrans' Brake FALKON with Brake lining #441

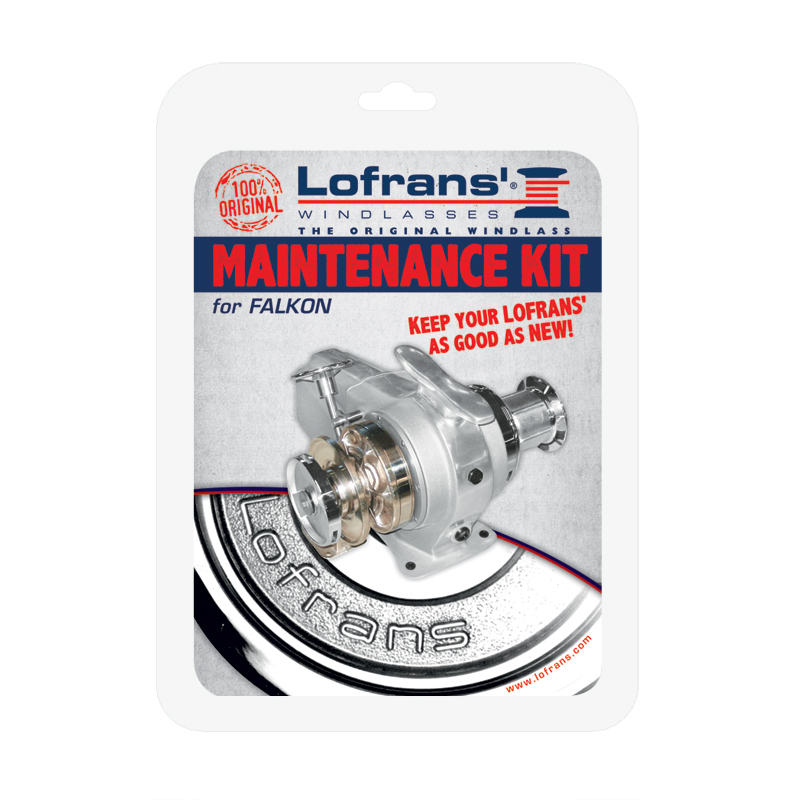

[72051] MAINTENANCE KIT FALKON

Main Features:

Get in touch

Code	Description	Amps at Working Load (A)	Circuit Breaker	Gypsy For Chain	Line Speed at W.L	Max Line Speed	Maximum Pull	Motor size	Net Weight	Power Supply	Type	Working load (kg)
	WINDLASS H. FALKON ALU G+D 1700W/12V 10 3/8 HT	210	187334	10 mm, ISO 4565	14 m/min	33 m/min	1700 kg	1700 W	55 kg	12 V	Gypsy & Drum	215
	WINDLASS H. FALKON ALU G+D 1700W/12V 12-13DIN766	210	187334	12 mm, ISO 4565 / 13 mm, DIN 766	14 m/min	33 m/min	1700 kg	1700 W	55 kg	12 V	Gypsy & Drum	215
	WINDLASS H. FALKON ALU G+D 1700W/24V 12-13DIN766	100	187332	12 mm, ISO 4565 / 13 mm, DIN 766	15 m/min	33 m/min	1800 kg	1700 W	55 kg	24 V	Gypsy & Drum	215
	WINDLASS H. FALKON ALU G+D 1700W/24V 10 3/8 HT	100	187332	10 mm, ISO 4565	15 m/min	33 m/min	1800 kg	1700 W	55 kg	24 V	Gypsy & Drum	225
	WINDLASS H. FALKON ALU G+D 1700W/12V 10DIN766	210	187334	10 mm, DIN 766	14 m/min	33 m/min	1700 kg	1700 W	55 kg	12 V	Gypsy & Drum	215
	WINDLASS H. FALKON ALU G+D 1700W/24V 10DIN766	100	187332	10 mm, DIN 766	15 m/min	33 m/min	1800 kg	1700 W	55 kg	24 V	Gypsy & Drum	225
	WINDLASS H. FALKON ALU G+D 1700W/12V 1/2 HT	210	187334	1/2 HT	14 m/min	33 m/min	1700 kg	1700 W	55 kg	12 V	Gypsy & Drum	215
	WINDLASS H. FALKON ALU 2G 1700W/24V 10 3/8 HT	100	187332	10 mm, ISO 4565	15 m/min	33 m/min	1800 kg	1700 W	65 kg	24 V	Gypsy & Gypsy	225
	WINDLASS H. FALKON ALU G+D 1700W/24V 1/2 HT	100	187332	1/2 HT	15 m/min	33 m/min	1800 kg	1700 W	55 kg	24 V	Gypsy & Drum	225
610009	WINDLASS H. FALKON ALU 2G 1700W/12V 1/2" G40	210	187334	1/2 HT	14 m/min	33 m/min	1700 kg	1700 W	55 kg	12 V	Gypsy & Gypsy	215
610010	WINDLASS H. FALKON ALU 2G 1700W/24V 1/2" G40	100	187332	1/2 HT	15 m/min	33 m/min	1800 kg	1700 W	55 kg	24 V	Gypsy & Gypsy	225
610018	WINDLASS H. FALKON ALU G+D 2200W/48V 12-13DIN766	60	187332	12 mm, ISO 4565 / 13 mm, DIN 766	12 m/min	33 m/min	2700 kg	2200 W	55 kg	48 V	Gypsy & Drum	360
	WINDLASS H. FALKON ALU G+D 2000W/24V 12-13DIN766	110	187333	12 mm, ISO 4565 / 13 mm, DIN 766	19 m/min	33 m/min	2640 kg	2000 W	57 kg	24 V	With Drum	330
	WINDLASS H. FALKON ALU G+D 2000W/24V 10 3/8 HT	110	187333	10mm, ISO 4565 / 3/8	19 m/min	33 m/min	2640 kg	2000 W	57 kg	24 V	Gypsy & Drum	330
	WINDLASS H. FALKON ALU G+D 2000W/24V 7/16"HT	110	187333	7/16	19 m/min	33 m/min	2640 kg	2000 W	57 kg	24 V	Gypsy & Drum	330
	WINDLASS H. FALKON ALU G+D 2000W/24V 1/2 HT	110	187333	1/2	19 m/min	33 m/min	2640 kg	2000 W	57 kg	24 V	Gypsy & Drum	330
	WINDLASS H. FALKON ALU 2G 2000W/24V 10 3/8 HT	110	187333	10mm, ISO 4565 / 3/8	19 m/min	33 m/min	2640 kg	2000 W	57 kg	24 V	Gypsy & Gypsy	330
636835	WINDLASS H. FALKON ALU G+D 2200W/48V 10 3/8 HT	60	187332	10mm, ISO 4565 / 3/8	12 m/min	33 m/min	2700 kg	2200 W	55 kg	48 V	Gypsy & Drum	360
636836	WINDLASS H. FALKON ALU G+D 2000W/24V 10DIN766	110	187333	10 mm, DIN 766	19 m/min	33 m/min	2640 kg	2000 W	57 kg	24 V	Gypsy & Drum	330

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

Technical Information
