DORADO - Horizontal Windlass

DORADO - Horizontal Windlass

Main Features:

  • Marine aluminium anodised body
  • Manual chain release
  • Rope chain management by the spring load arm
  • Heavy duty rated IP66 electric motor
  • Automatic free fall available as option
  • Control Box included in package

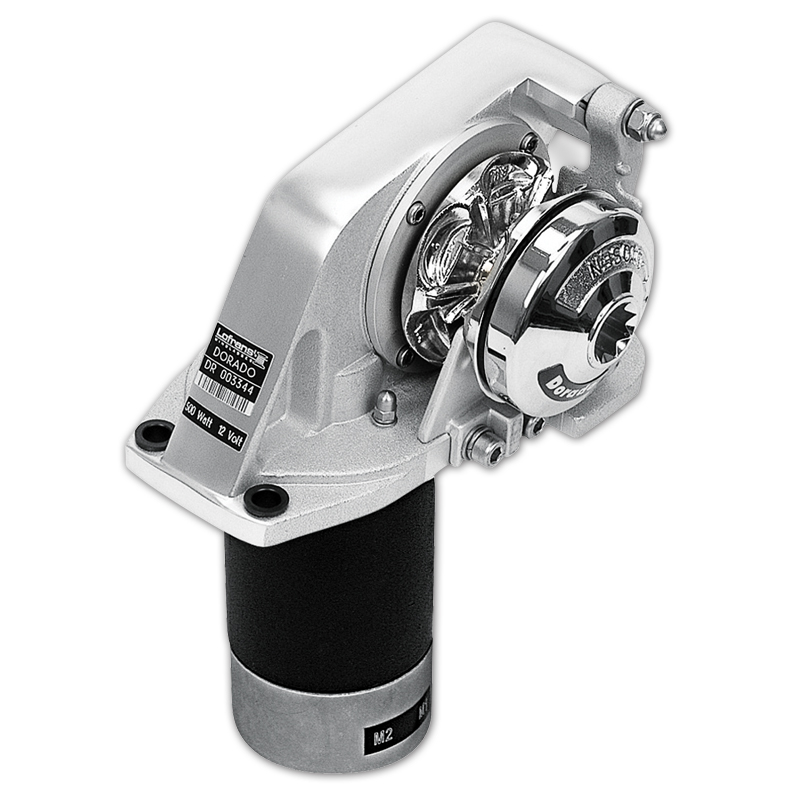

DORADO - Horizontal Windlass_photo-0

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.


Code Circuit Breaker Gypsy For Chain Gypsy For Rope Line Speed at W.L Max Line Speed Maximum Pull Model type Motor size Net Weight Power Supply Type Amps at Working Load (A) Working load (kg)
409568 6 mm, ISO 4565 10-12 mm 3-strand
14mm 3-strand rope
18 m/min 24 m/min 600 kg port 500 W 10 kg 12 V Low Profile 65 70
409569 8 mm, ISO 4565
DIN 766
12 mm 3-strand
14mm 3-strand rope
20 m/min 25 m/min 650 kg port 800 W 11 kg 12 V Low Profile 80 80
600048 6 mm, ISO 4565 10-12 mm 3-strand
14mm 3-strand rope
20 m/min 25 m/min 650 kg port 800 W 11 kg 12 V Low Profile 80 80
File
Installation And User's Manual _ Dorado - Kobra - Razza Download
Lofrans' Oil Capacities Download
3D CAD Model ~ Dorado 500W Download
3D CAD Model ~ Dorado 800W Download
Deck Template ~ Dorado (dwg) Download
Deck Template ~ Dorado (pdf) Download
