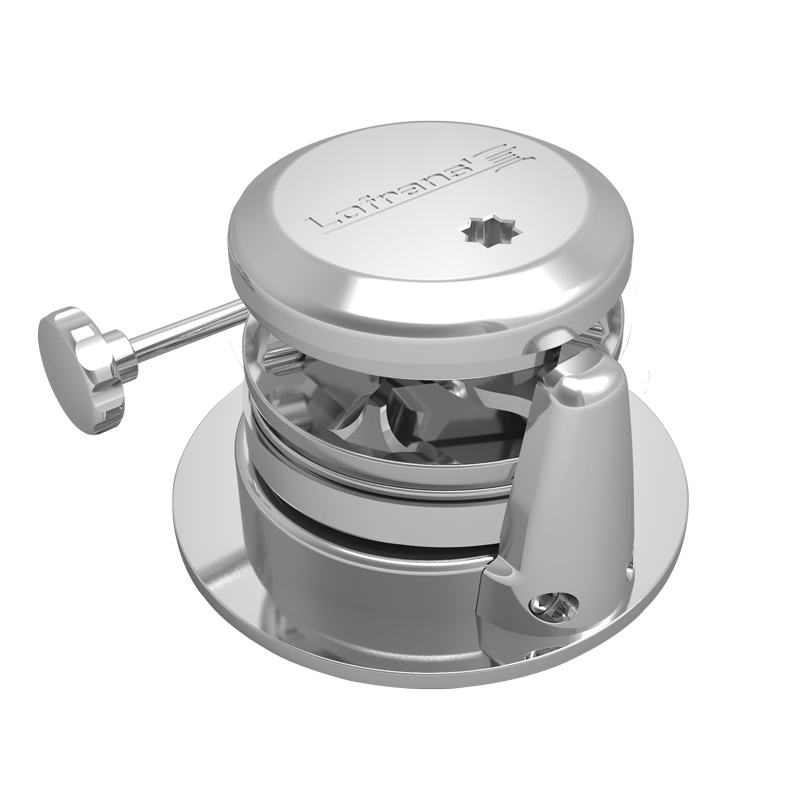

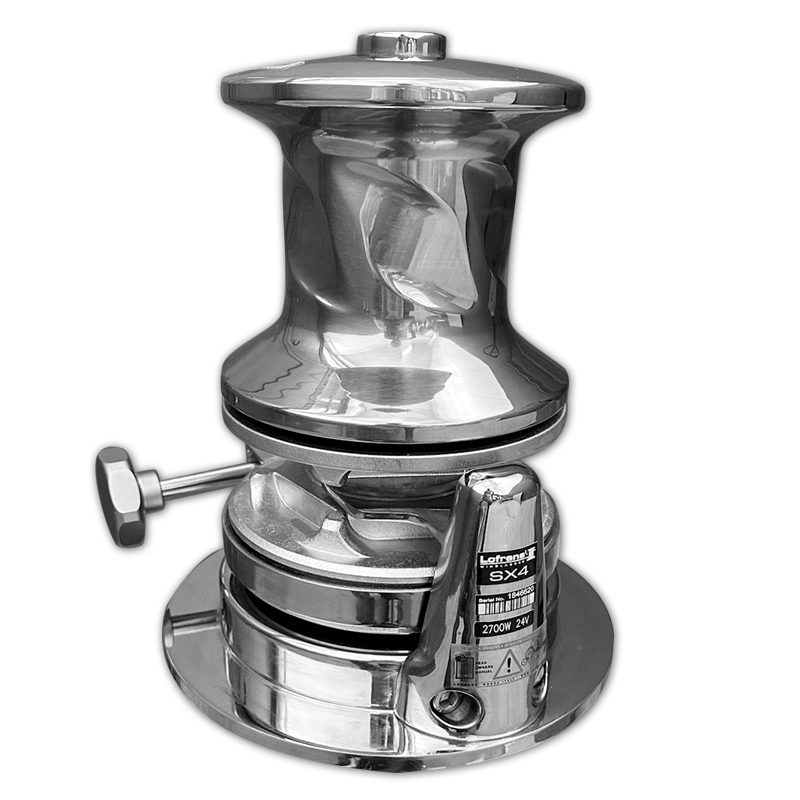

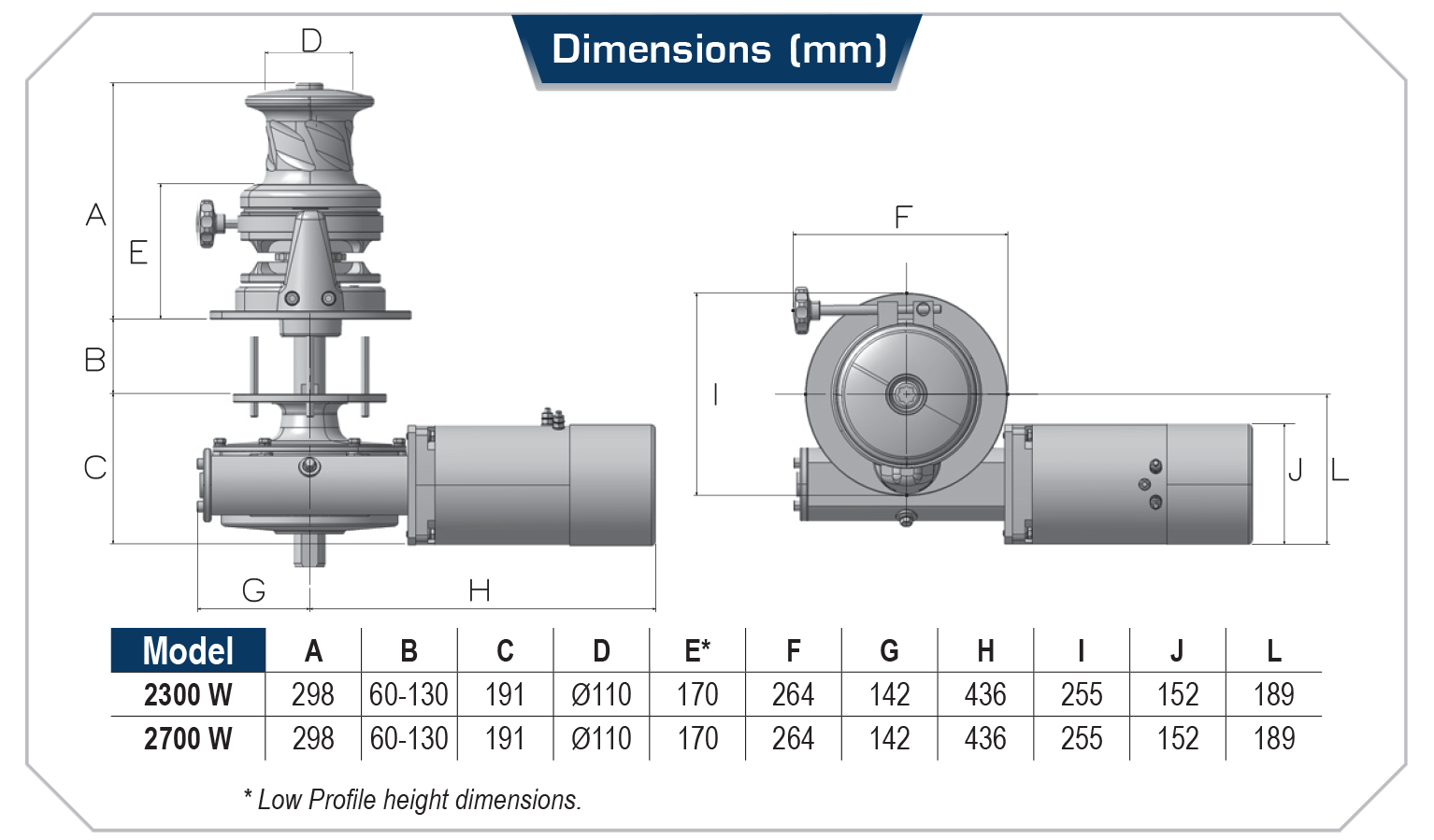

Name: SX4 - Vertical Windlass
Brand: Lofrans

The standard features that you can meet in every SX series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Compact round base design constructed with Marine AISI 316L Stainless Steel

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

Printer Friendly Version

Code	Motor size	Power Supply	Maximum Pull	Working load (kg)	Line Speed at W.L	Max Line Speed	Net Weight with Low Profile (kg)	Circuit Breaker	Hydraulic Pressure	Hydraulic Flow	Type	Gypsy For Chain	Amps Work Load (A)	Net Weight with Drum (kg)	Pull Type

636290	2300 w	24	2100	500	13	25	72		-	-	With Drum	12 mm, ISO 4565/ 13 mm, DIN 766	160	82	CW
636291	2700 w	24	2500	530	13	28	75		-	-	With Drum	12 mm, ISO 4565/ 13 mm, DIN 766	170	85	CW
636292	2300 w	24	2100	500	13	25	72	636090	-	-	Low Profile	12 mm, ISO 4565/ 13 mm, DIN 766	160	82
636293	2700 w	24	2500	530	13	28	75	636091	-	-	Low Profile	12 mm, ISO 4565/ 13 mm, DIN 766	170	85
636294	Hydraulic - 8cc	-	2500	650	16	16	55	-	200	32	Low Profile	12 mm, ISO 4565/ 13 mm, DIN 766	-	60
636295	Hydraulic - 8 cc	-	2500	650	16	16	55	-	200	32	With Drum	12 mm, ISO 4565/ 13 mm, DIN 766	-	60
636655	2700 W	24 V	2500 kg	530	13 m/min	28 m/min	75		-	-	With Drum	14 mm	170	85
639293	2700 W	24	2500	530	13	28	75	636091	-	-	Low Profile	12 mm, ISO 4565/ 13 mm, DIN 766	170	75
639294	Hydraulic - 8 cc	-	2500	650	16	16	55	-	200	32	Low Profile	12 mm, ISO 4565/ 13 mm, DIN 766	-	55
