SX3 - Vertical Windlass

SX3 - Vertical Windlass

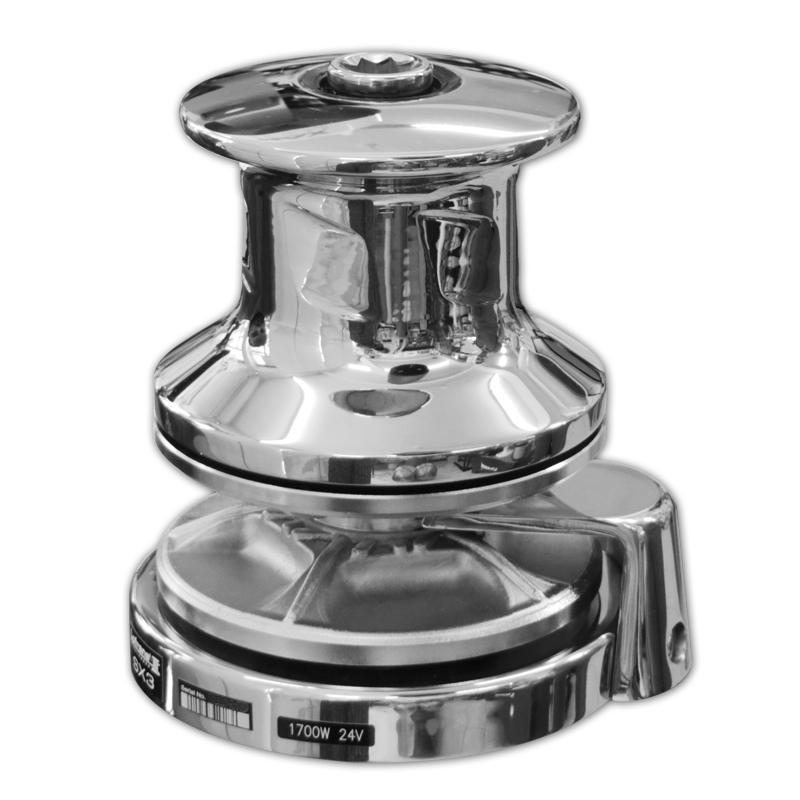

Main features:

  • Compact round base design
  • Marine AISI 316L stainless steel construction

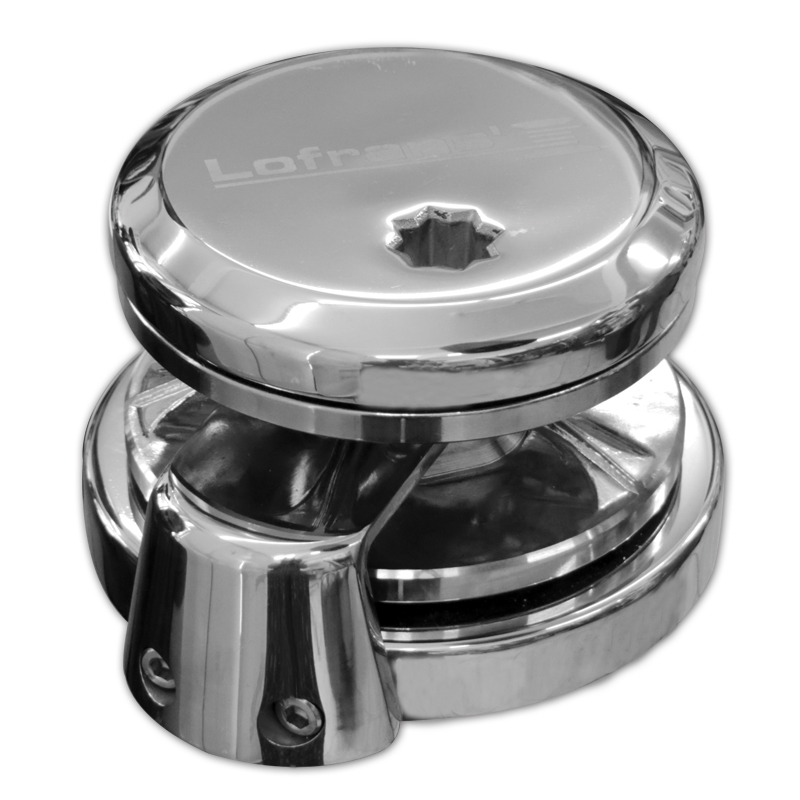

  • With drum or low profile
  • Independent gypsy and drum operation
  • Manual chain release
  • Chain counter magnet pre-installed as standard
  • IP66 rated heavy-duty electric motor
  • Anodised marine aluminium gearbox
  • Chain pipe available as an option

Standard Equipment:

  • Dual direction solenoid pack
  • Handle
  • Gypsy for chain
  • CD / Instruction manual
  • Chain pipe also available as an option, code 636311

The "SX" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model.

The standard features that you can meet in every SX series windlass are:


To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

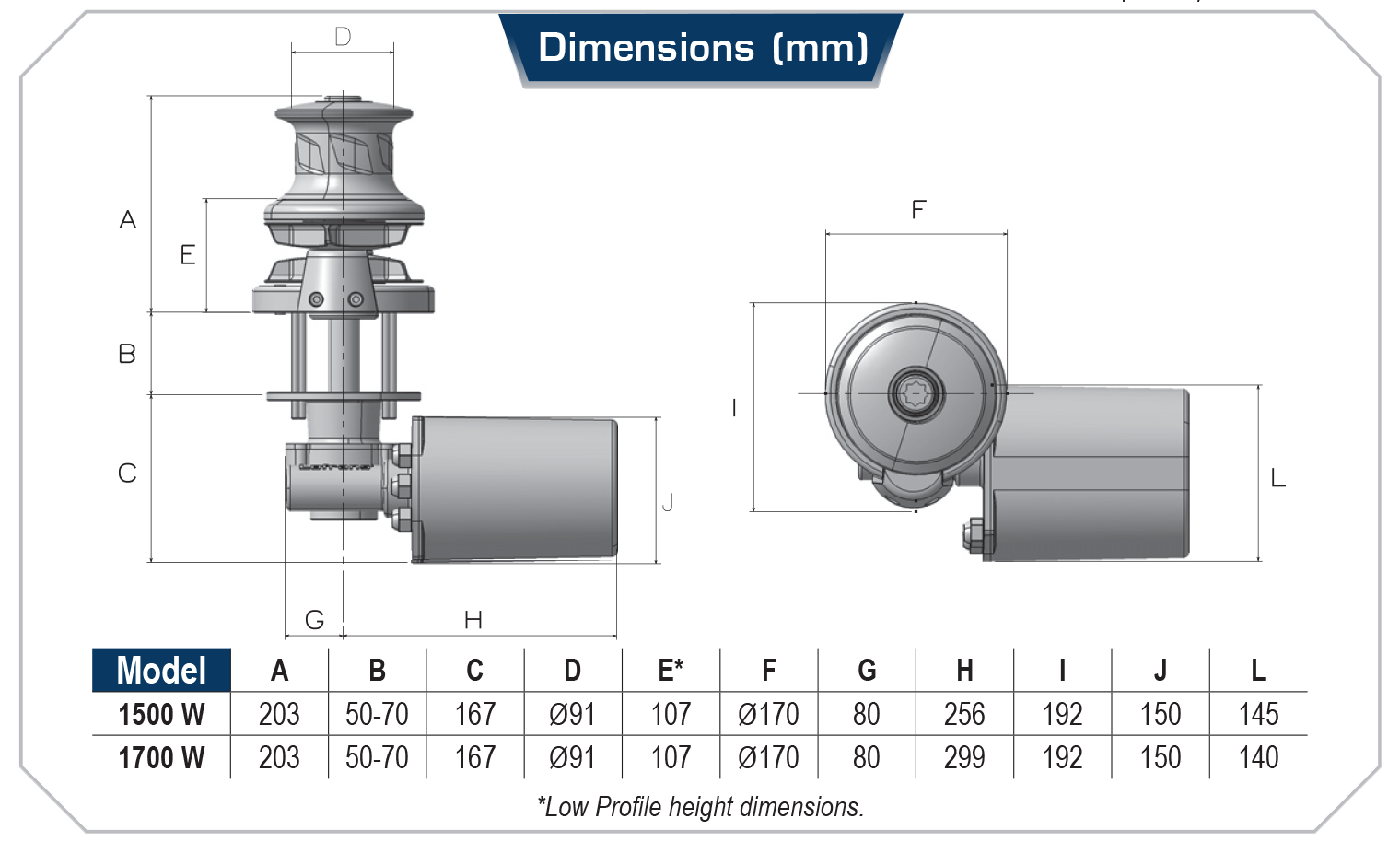

Code Motor size Power Supply Maximum Pull Working load (kg) Line Speed at W.L Max Line Speed Net Weight with Low Profile (kg) Circuit Breaker Type Gypsy For Chain Amps Work Load (A) Net Weight with Drum (kg)
636286 1700 w 24 1695 215 15 32 35 636088 Low Profile 12 mm, ISO 4565/ 13mm, DIN 766 90 38
636287 1700 w 24 1695 215 15 32 35 636088 With Drum 12 mm, ISO 4565/ 13 mm, DIN 766 90 38
636288 1700 w 24 1695 215 15 32 35 636088 With Drum 10 mm, DIN 766 90 38
636289 1500 w 12 1200 165 17 40 32 636089 Low Profile 10 mm , ISO 4565 150 35
636451 1700 w 12 1600 200 14 32 35 636091 Low Profile 10 mm, ISO 4565 180 38
636652 1500 w 12 1200 165 17 40 32 636089 With Drum 10 DIN766 150 35
636658 1500 w 24 1200 165 17 40 32 636088 With Drum 10 ISO 4565 / 3/8 HT 65 35
File
SX3 MANUAL Download
Vertical Windlasses_SX_Series_Brochure Download
Lofrans' Oil Capacities Download
3D CAD Model ~ SX3 1700W With Drum Download
3D CAD Model ~ SX3_1500W_Low_Profile Download
3D CAD Model ~ SX3_1500W_With_Drum Download
3D CAD Model ~ SX3_1700W_Low_Profile Download
Deck Template_Chain pipe SX2 & SX3 (dwg) Download
Deck Template_Chain pipe SX2 & SX3 (pdf) Download
SX3 DRILLING TEMPLATE Download
