SX2 - Vertical Windlass

SX2 - Vertical Windlass

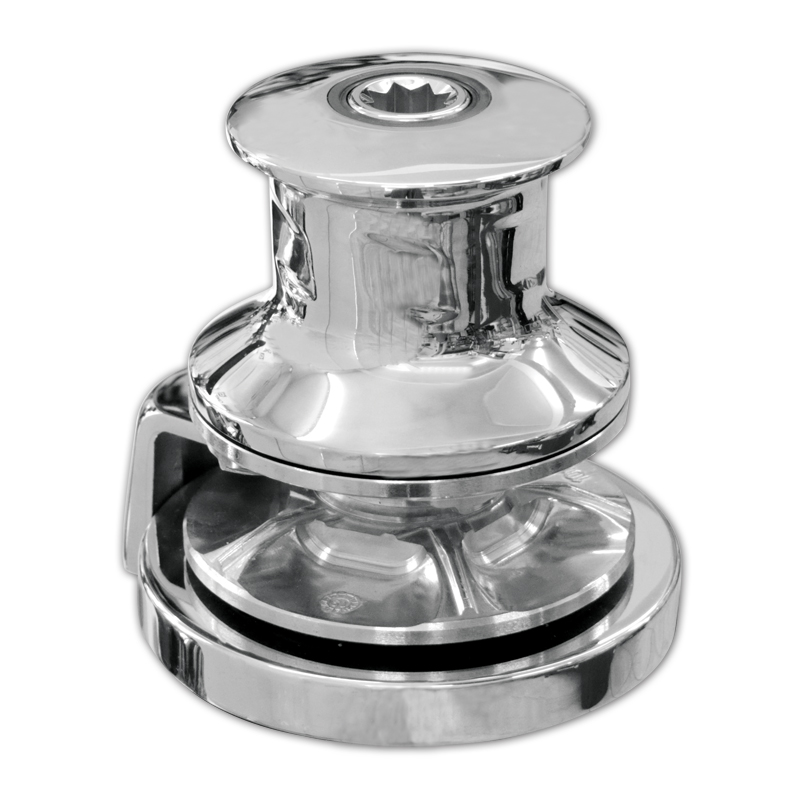

Main features:

  • Compact round base design
  • Marine AISI 316L stainless steel construction
  • With drum or low profile
  • Independent gypsy and drum operation
  • Manual chain release
  • Chain counter magnet pre-installed as standard
  • IP67 rated heavy-duty electric motor
  • Anodised marine aluminium gearbox
  • Chain pipe available as an option

Standard Equipment:

  • Dual direction solenoid pack
  • Handle
  • Gypsy for chain
  • CD / Instruction manual
  • Chain pipe also available as an option, code 636311




The "SX" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model.

The standard features that you can meet in every SX series windlass are:


To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.


Code Gipsy For Chain Amps Work Load (A) Net Weight with Drum (kg) Motor size Power Supply Maximum Pull Working load (kg) Line Speed at W.L Max Line Speed Net Weight with Low Profile (kg) Circuit Breaker Type
636282 8 mm, ISO 4565/ DIN 766 135 20 1000 w 12 1000 150 20 40 19 636089 Low Profile
636283 8 mm, ISO 4565/ DIN 766 135 20 1000 w 12 1000 150 20 40 19 636089 With Drum
636284 8 mm, ISO 4565/ DIN 766 75 25 1500 w 24 1270 175 19 40 24 636088 Low Profile
636285 8 mm, ISO 4565/ DIN 766 75 25 1500 w 24 1270 175 19 40 24 636088 With Drum
File
SX2 MANUAL Download
Vertical Windlasses_SX_Series_Brochure Download
Deck Template_Chain pipe SX2 & SX3 (dwg) Download
Deck Template_Chain pipe SX2 & SX3 (pdf) Download
SX2 DRILLING TEMPLATE Download

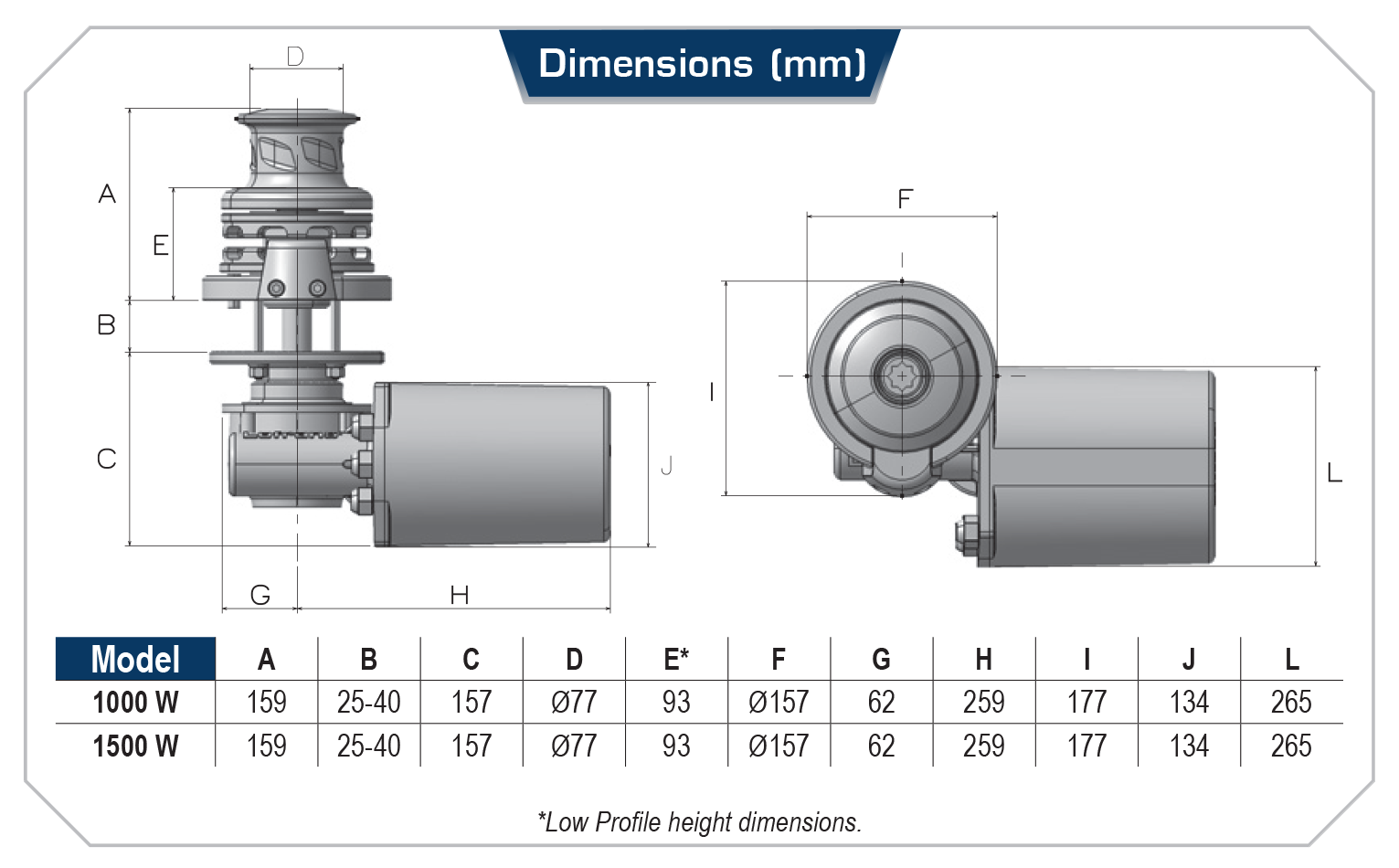

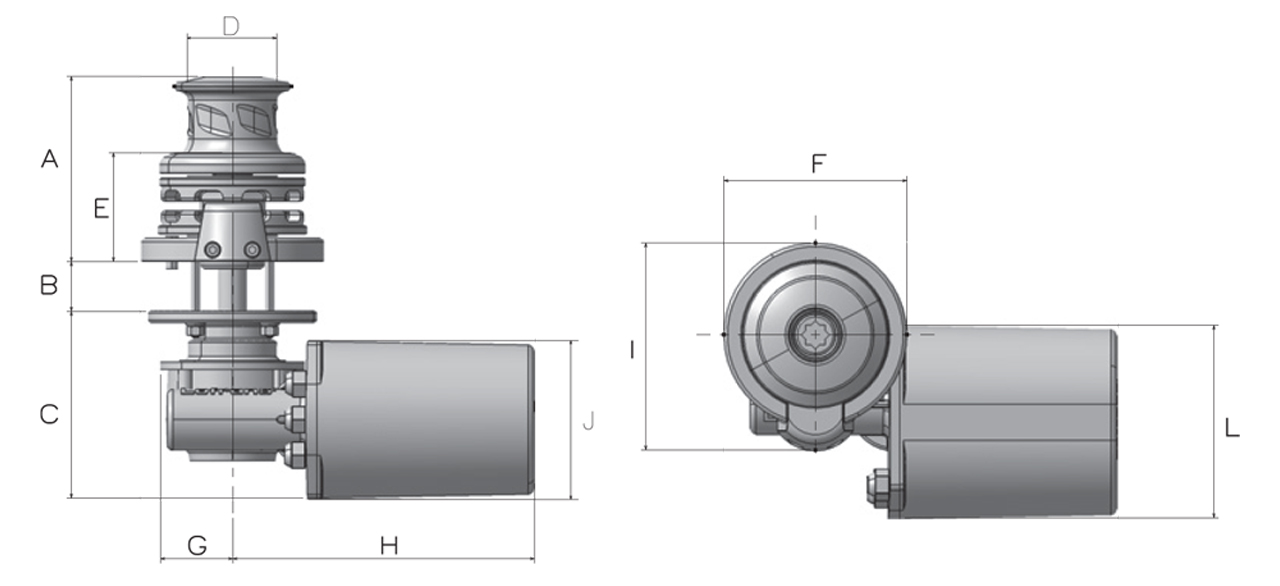

Model  A  B  C  D  E*  F  G  H  I  J  L
1000W 159 25-40 155 77 93 177 73 260 157 134 165
1500W 159 25-40 155 77 93 177 73 260 157 134 165



*Low Profile height dimensions.
