SX1 - Vertical Windlass

SX1 - Vertical Windlass

Main features:

  • Compact round base design
  • Marine AISI 316L stainless steel construction
  • Independent gypsy and drum operation
  • Manual chain release
  • Chain counter magnet pre-installed as standard
  • IP67 rated heavy-duty electric motor
  • Anodised marine aluminium gearbox
  • Chain pipe available as an option

Standard Equipment:

  • Dual direction solenoid pack
  • Handle
  • Gypsy for chain
  • CD / Instruction manual
  • Chain pipe also available as an option, code 636431

SX1 - Vertical Windlass_photo-0

The "SX" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model.

The standard features that you can meet in every SX series windlass are:


Windlass Models / Technical Information

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.




Code Motor size Maximum Pull Working Load (A) Line Speed at W.L Max Line Speed Net Weight with Low Profile (kg) Net Weight with Drum (kg) Circuit Breaker Amps Work Load (A) Power Supply Type Gipsy For Chain
636279 500W 630 95 23 26 11 12 636087 75 12 Low Profile 6 mm, ISO 4565/ DIN 766
636280 800W 700 100 25 28 13 14 636088 80 12 Low Profile 8 mm, ISO 4565/ DIN 766
636281 800 W 700 100 25 28 13 14 636088 80 12 Low Profile 6 mm, ISO 4565/ DIN 766
File
SX1 MANUAL Download
Vertical Windlasses_SX_Series_Brochure Download
Lofrans' Oil Capacities Download
3D CAD Model _ SX1 Low Profile 500-800W Download
Deck Template_Chain pipe SX1 (dwg) Download
Deck Template_Chain pipe SX1 (pdf) Download
SX1 drilling template Download

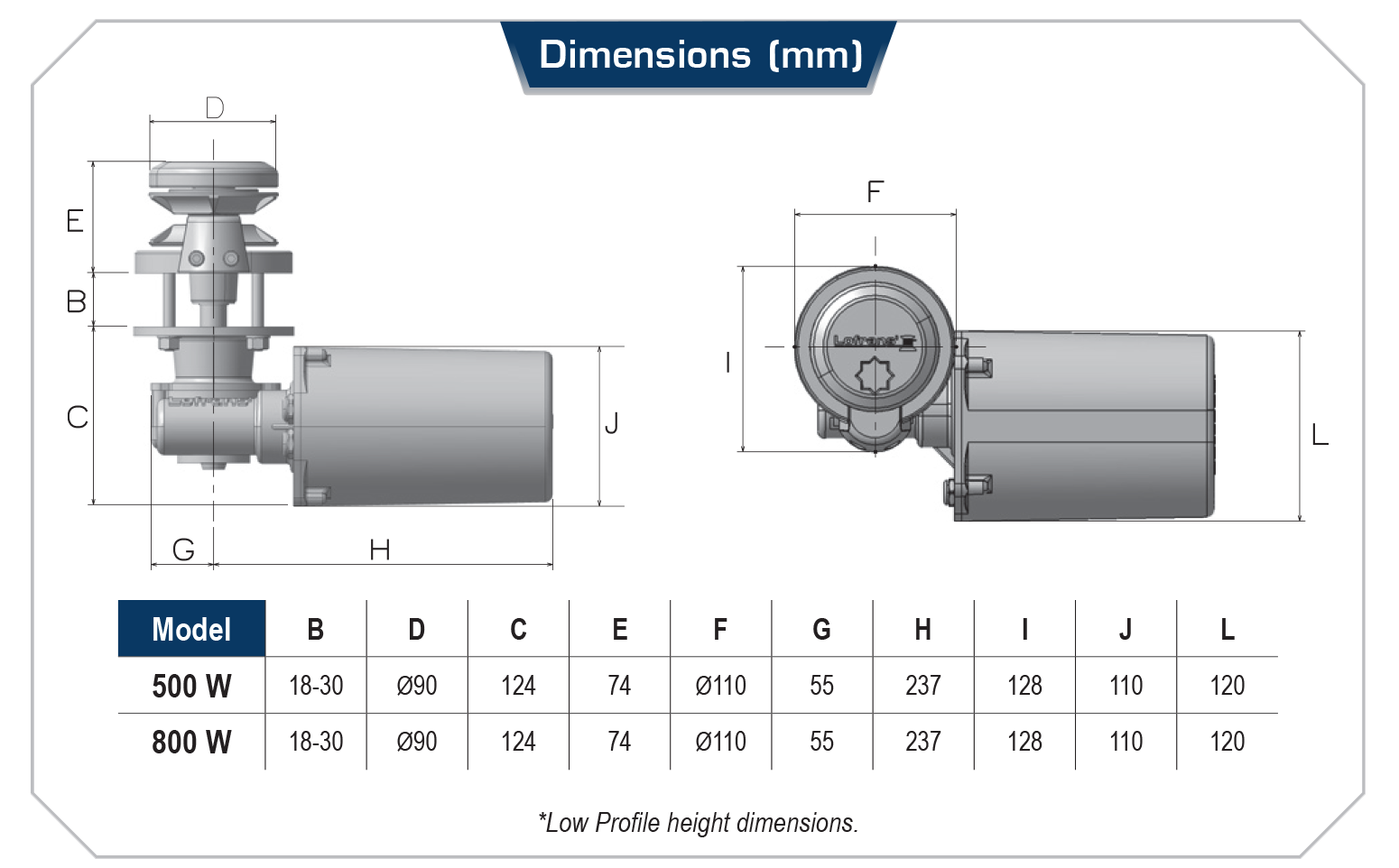

Model B  C  E  F  G  H  I  J  L
500W 10-30 111 77 128 56 236 110 105 132
800W 10-30 150 77 128 62 236 110 134 1
