XP800 - Vertical Windlass

Main features:

  • Features a vertical planetary gearmotor for easy installation on deck, even by a single person
  • ​The simple footprint utilises standardised hole saw drills for faster installation on board
  • ​Water-protected planetary gearmotor IP67
  • Easy installation, even by one person
  • Marine stainless steel construction
  • Manual chain release
  • Pre-installed chain counter sensor
  • With electric break for anchor lock when not in use



Standard Equipment:

  • Handle
  • Pressure finger
  • Control box
  • Thermal circuit breaker
  • Lofrans’ rocker switch

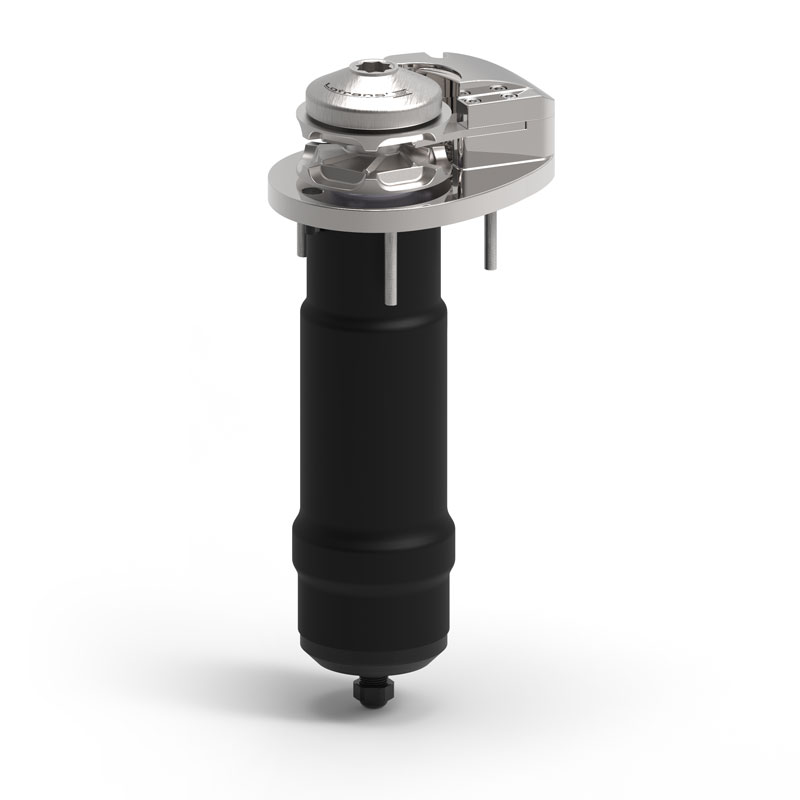

XP800 - Vertical Windlass_photo-0
Printer Friendly Version

Code Line Speed at W.L Max Line Speed Circuit Breaker Control Box Power Supply Maximum Pull Working load (kg) Amps at Working Load (A) Gypsy For Chain Gypsy For Rope
636790 17m/min 21m/min 25A Included in the package 12V 160kg 95kg 35A 6mm 10-12mm 3-strand
636791 17m/min 21m/min 25A Included in the package 12V 160kg 95kg 35A 7mm 10-12mm 3-strand
636792 17m/min 21m/min 25A Included in the package 12V 160kg 95kg 35A 8mm 12-14mm 3-strand
File
Installation And User's Manual XP800 Download
XP800 Vertical Windlass_Product Announcement Download
3D CAD Model ~ XP800 W Download
3D CAD Model ~ XP800 W_O Download
DECK TEMPLATE~XP800 Download
