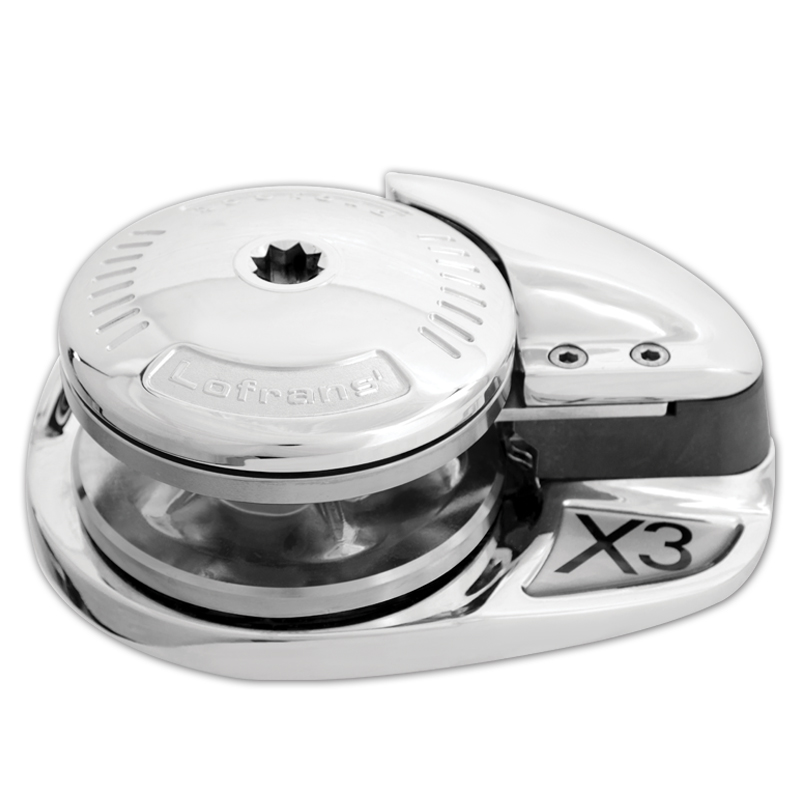

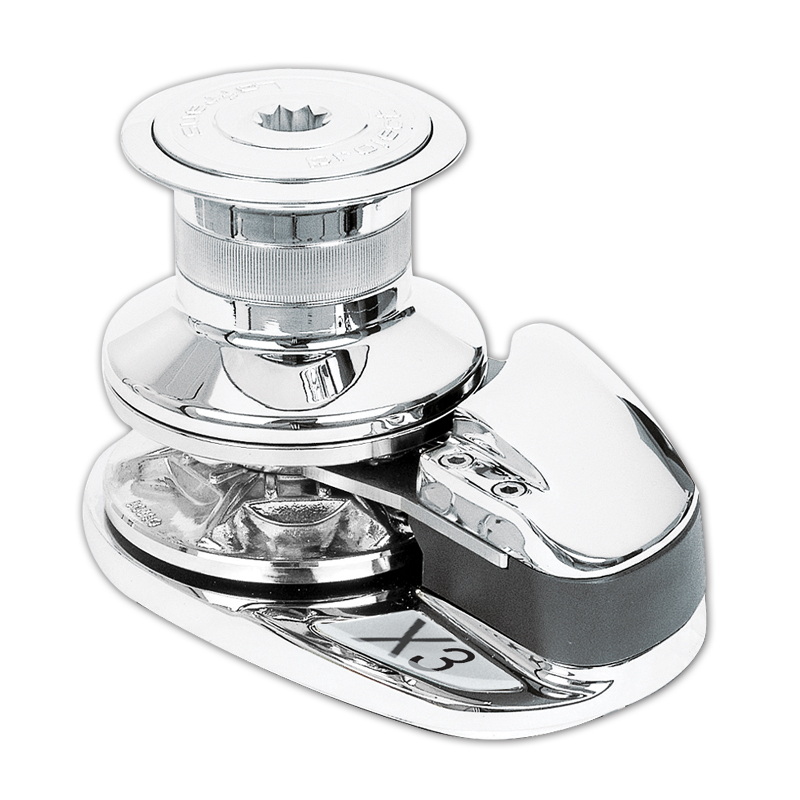

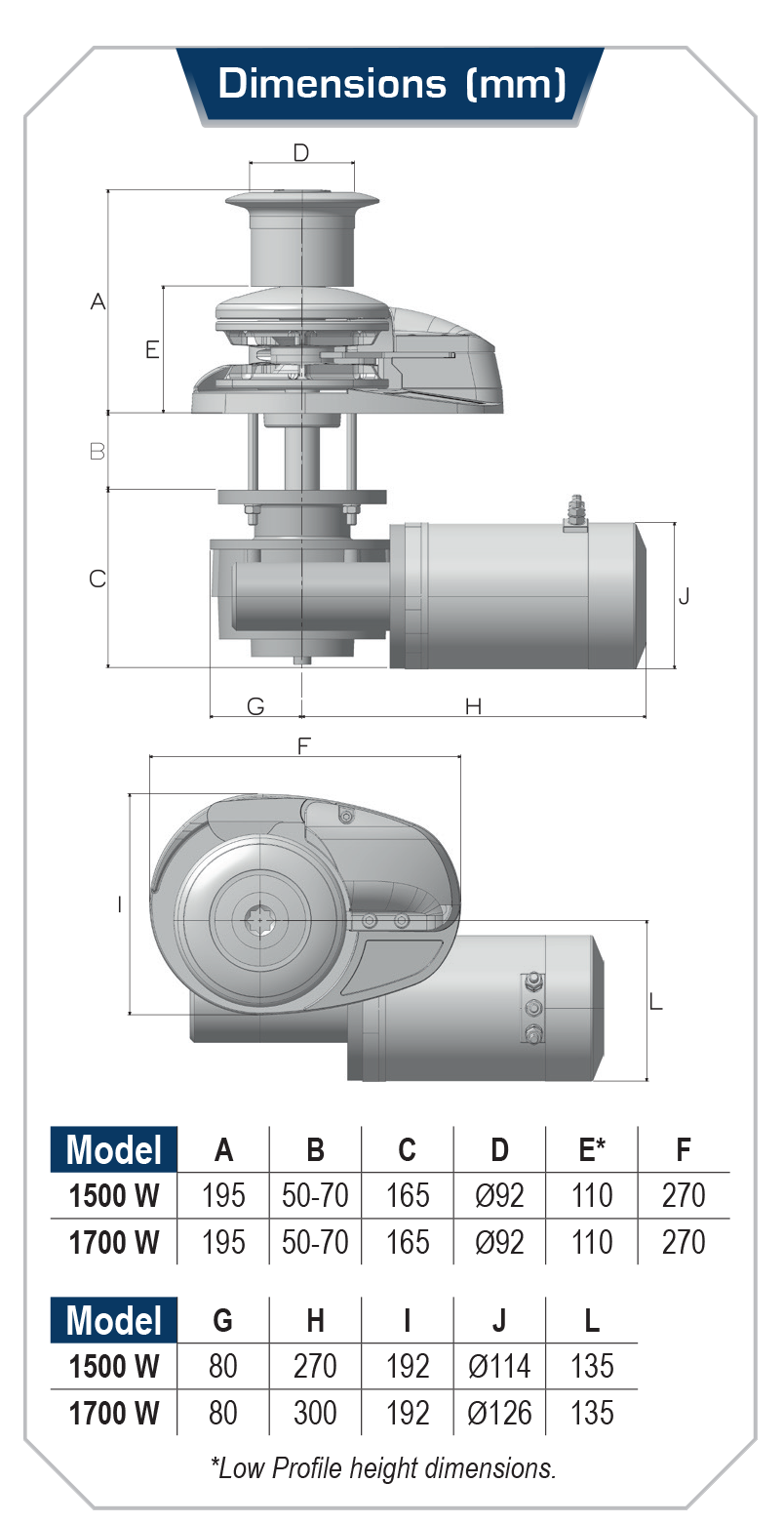

Name: X3 - Vertical Windlass
Brand: Lofrans

The "X" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model. For the X2 windlass and X3 windlass there is a Plus version of stainless steel AISI 316L mirror polishing which offers a stronger protection against corrosion.

The standard features that you can meet in every X series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Manual override so that the chain or rope can be recovered manually in case of electric function failure.

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

Printer Friendly Version

Code	Circuit Breaker	Construction	Gypsy For Chain	Gypsy For Rope	Line Speed at W.L	Max Line Speed	Maximum Pull	Motor size	Net Weight	Power Supply	Type	Amps at Working Load (A)	Working load (kg)

472842		Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	Low Profile	180	200
472865		Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	35 kg	12 V	With Drum	150	165
472866		Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	12 V	Low Profile	150	165
473004		Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	38 kg	12 V	With Drum	180	200
473005		Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	215
473006		Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	35 kg	24 V	Low Profile	90	215
473208		Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	38 kg	12 V	With Drum	180	200
473209		Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	Low Profile	180	200
473218	187332	Chromed bronze	10 mm, DIN 766	16 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	65	165
473228	187333	Chromed bronze	10 mm, DIN 766	16 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	24 V	With Drum	150	165
473252		Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	215
473256	187332	Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	35 kg	24 V	Low Profile	90	215
57451		Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	With Drum	180	200
57452	187334	Aluminium	10 mm, DIN 766	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	With Drum	180	200
57453		Aluminium	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	With Drum	180	200
600064		Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	38 kg	12 V	With Drum	180	200
600065		Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	Low Profile	180	200
600068		Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	215
601070		Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	12 V	Low Profile	150	165
601075		Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	12 V	Low Profile	150	165
601079		Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	35 kg	12 V	With Drum	150	165
601084		Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	35 kg	12 V	With Drum	150	165
601095	187332	Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	65	165
601097	187332	Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	65	165
601098	187332	Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	65	165
601102	187332	Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	35 kg	24 V	With Drum	65	165
601107	187332	Chromed bronze	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	35 kg	24 V	With Drum	65	165
601108	187332	Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	Low Profile	90	200
601128	187334	Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	32 kg	12 V	Low Profile	180	200
601129		Aluminium	10 mm, ISO 4565	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	32 kg	12 V	Low Profile	180	200
601131	187334	Aluminium	10 mm, DIN 766	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	32 kg	12 V	Low Profile	180	200
601132	187334	Aluminium	10 mm, ISO 4565	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	With Drum	180	200
601133	187332	Aluminium	10 mm, ISO 4565	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	35 kg	24 V	Low Profile	90	200
601134	187332	Aluminium	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	35 kg	24 V	Low Profile	90	200
601135	187332	Aluminium	10 mm, DIN 766	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	35 kg	24 V	Low Profile	90	200
601136	187332	Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	200
601137	187332	Aluminium	10 mm, ISO 4565	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	200
601139	187332	Aluminium	10 mm, DIN 766	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	200
602099	187333	Chromed bronze	10 mm, DIN 766	16 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	12 V	Low Profile	150	165
602101		Chromed bronze	10 mm, DIN 766	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	38 kg	12 V	With Drum	180	200
602102		Chromed bronze	10 mm, DIN 766	16 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	35 kg	12 V	Low Profile	180	200
602103		Chromed bronze	10 mm, DIN 766	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	With Drum	90	215
602104		Chromed bronze	10 mm, DIN 766	16 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	35 kg	24 V	Low Profile	90	215
602237	187334	Aluminium	12 mm, ISO 4565 / 13 mm, DIN 766	18 mm, 3-strand	14 m/min	32 m/min	1600 kg	1700 W	32 kg	12 V	Low Profile	180	200
602238	187332	Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	15 m/min	32 m/min	1695 kg	1700 W	38 kg	24 V	Low Profile	90	200
602240	187332	Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	35 kg	24 V	With Drum	65	165
602241	187332	Aluminium	10 mm, ISO 4565	16 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	35 kg	24 V	With Drum	65	165
602242	187332	Aluminium	10 mm, DIN 766	16 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	35 kg	24 V	With Drum	65	165
602243	187333	Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	35 kg	12 V	With Drum	150	165
602246	187332	Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	65	165
602247	187332	Aluminium	10 mm, ISO 4565	16 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	65	165
602248	187332	Aluminium	10 mm, DIN 766	16 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	65	165
602249	187333	Aluminium	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	12 V	Low Profile	150	165
602250	187333	Aluminium	10 mm, ISO 4565	16 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	12 V	Low Profile	150	165
602251	187333	Aluminium	10 mm, DIN 766	16 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	12 V	Low Profile	150	165
636669	187333	Chromed bronze	10 mm, ISO 4565	16 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile	150	165
636787	187332	Chromed bronze	8 mm, ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	35 m/min	1200 kg	1500 W	32 kg	24 V	Low Profile, with INOX Finger	65	165
