Ercole Verticale - Vertical Windlass

Ercole Verticale - Vertical Windlass

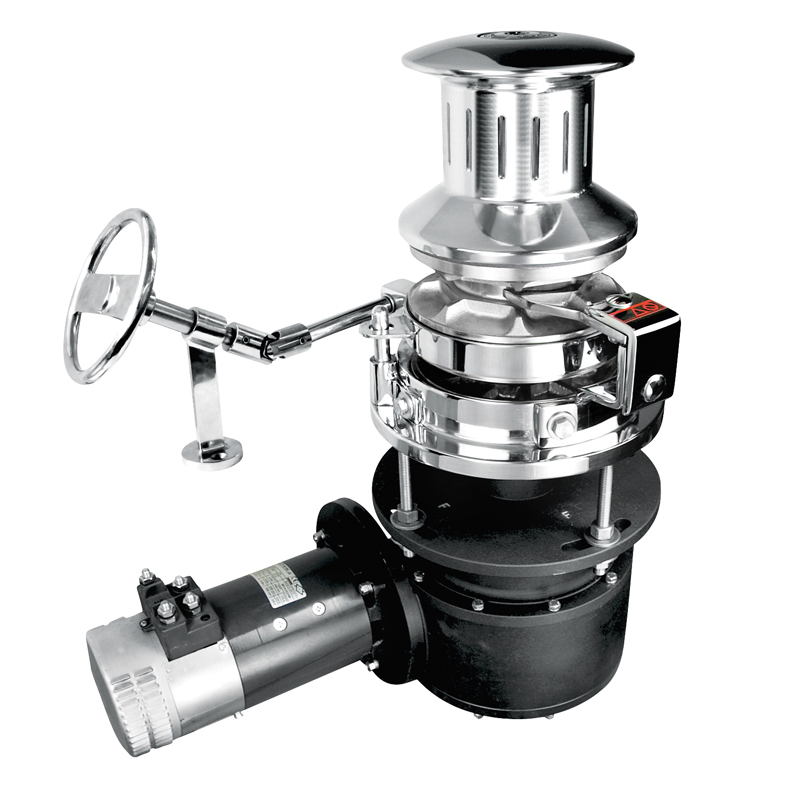

Main Features:

  • Under-deck compact dimensions
  • Construction in mirror polished AISI 3 16L stainless steel
  • High torque latest generation electric motor able to provide the power needed in all marine conditions
  • Band brake to assist in chain control, thanks to an easy-to-manage large handwheel
  • Special high-grip drum with independent rotation from the Gypsy, for warping function
  • Indepent Gypsy and drum operation
  • Manual chain release
  • Manual override to recover the chain and anchor in case of electrical failure
  • Internal ratchet to prevent chain jams into the chain cocker which could damage the deck
  • Chain counter support integrated by the sensor inserted in the base and the magnet in the Gypsy
  • Available also in counter clockwise rotation
  • High efficiency Lofrans planetary-worm screw gearbox made in anodised black aluminium with gears made in high mechanical strength material
  • Heavy duty electric motor
  • Power: DC, AC and hydraulic
  • Available in custom versions

Standard Equipment:

  • Dual direction solenoid pack (only for 24V version)
  • Handle
  • Gypsy for chain
  • CD / Instruction manual

Please contact us for additional detailed documentation.

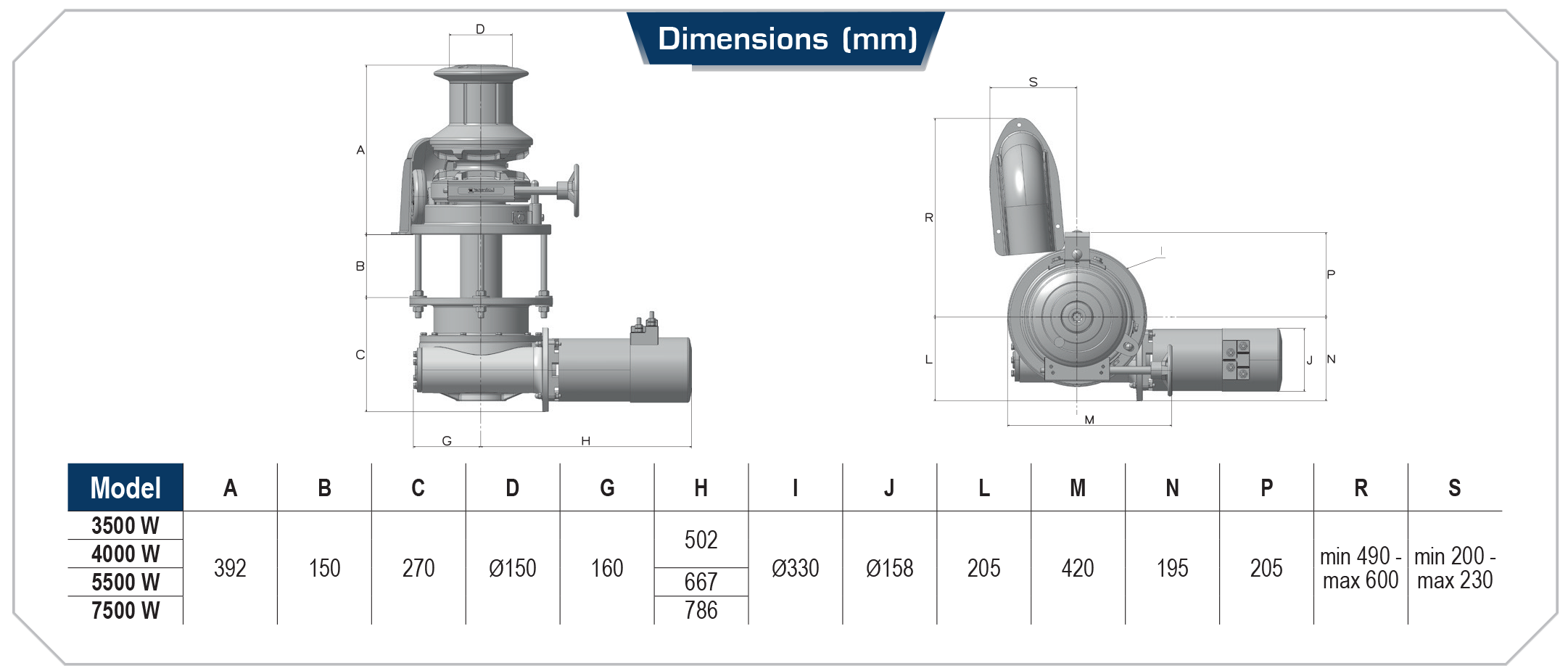

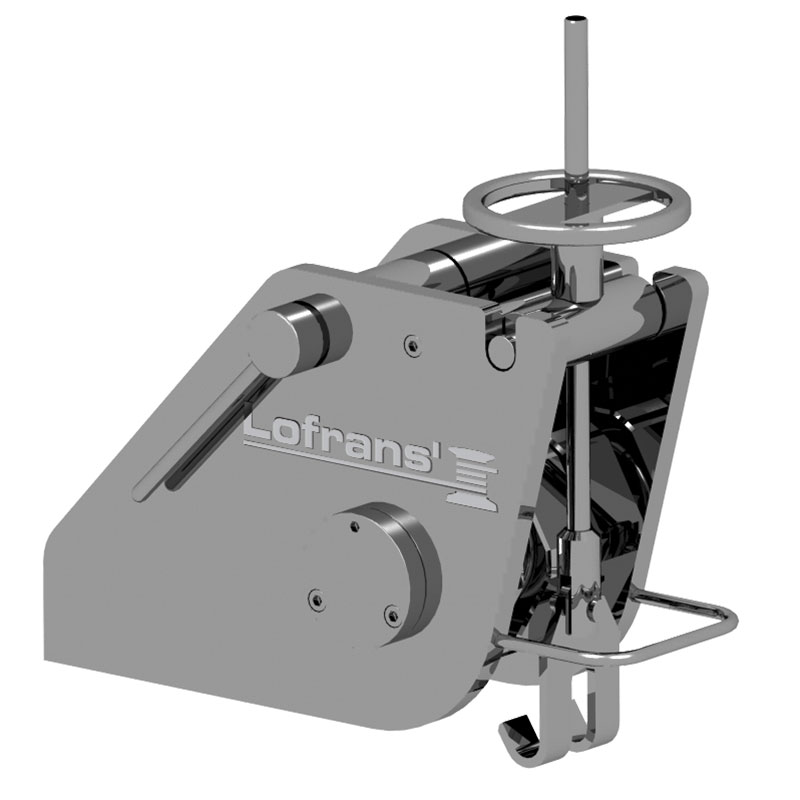

Ercole Verticale - Vertical Windlass_photo-0

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.


Code Amps at Working Load (A) Control Box Gypsy For Chain Hydraulic Flow Hydraulic Pressure Line Speed at W.L Max Line Speed Maximum Pull Motor size Net Weight Power Supply Type Pull Type Working load (kg)
600080 120 Included in package 14 mm - - 8 m/min 15 m/min 4500 kg 3500 W 180 kg 24 V With Drum CW 1075
600081 120 Included in package 14 mm - - 8 m/min 15 m/min 4500 kg 3500 W 180 kg 24 V With Drum CCW 1075
600082 9 - 14 Switchboard available separately 14 mm - - 12 m/min 12 m/min 5500 kg 4000 W 180 kg 230-400 V With Drum CW 1310
600083 9 - 14 Switchboard available separately 14 mm - - 12 m/min 12 m/min 5500 kg 4000 W 180 kg 230-400 V With Drum CCW 1310
600308
600310
600363
600367
600407
600408 9 - 14 Switchboard available separately 16 mm - - 12 m/min 12 m/min 6500 kg 5500 W 200 kg 230-400 V With Drum CCW 1550
600409 9 - 14 Switchboard available separately 16 mm - - 12 m/min 12 m/min 6500kg 5500 W 200 kg 230-400 V With Drum CW 1550
602523 - - 14 mm 40 lt/min 200 bar 12 m/min 12m/min 6500 kg Hydraulic-11cc 165 kg - With Drum CW 1550
602524 - - 14 mm 40 lt/min 200 bar 12 m/min 12 m/min 6500 kg Hydraulic-11cc 165 kg - With Drum CCW 1550
602525 - - 16 mm 40 lt/min 200 bar 12 m/min 12 m/min 6500 kg Hydraulic-11cc 165 kg - With Drum CW 1550
602526 - - 16 mm 40 lt/min 200 bar 12 m/min 12 m/min 6500 kg Hydraulic-11cc 165 kg - With Drum CCW 1550
636078 20 - 25 Switchboard available separately 17,5mm STUDL - - 12 m/min 12 m/min 7500 kg 7500 W 225 kg 400 V With Drum CW 2000
636079 20 - 25 Switchboard available separately 17,5mm STUDL - - 12 m/min 12 m/min 7500 kg 7500 W 225 kg 400 V With Drum CCW 2000
File
Installation And User's Manual ~ Ercole Vertical Download
Lofrans' Hydraulic Windlasses Technical Specification Download
Lofrans' Oil Capacities Download
Deck Template ~ Ercole Vertical (dwg) Download
Deck Template ~ Ercole Vertical (pdf) Download
