X2- Vertical Windlass Dark Version

Main Features:

  • Special watertight stainless steel ball bearing in the base
  • With drum or low profile
  • Independent gypsy and drum operation
  • Rope and chain combinaton gypsy
  • Manual chain release
  • Manual override available
  • Rope chain management by the spring loaded arm
  • Chain counter magnet pre-installed as standard
  • IP67 motor cover
  • Marine anodised aluminium gearbox



Standard Equipment:

  • Dual direction solenoid pack
  • Handle
  • Gypsy for chain & rope
  • QR code card for Instruction Manual
X2- Vertical Windlass Dark Version_photo-0 X2- Vertical Windlass Dark Version_photo-1
Printer Friendly Version

Code Gipsy For Chain Gipsy For Rope Line Speed at W.L Max Line Speed Maximum Pull Motor size Power Supply Type Net Weight Amps at Working Load (A) Working load (kg)

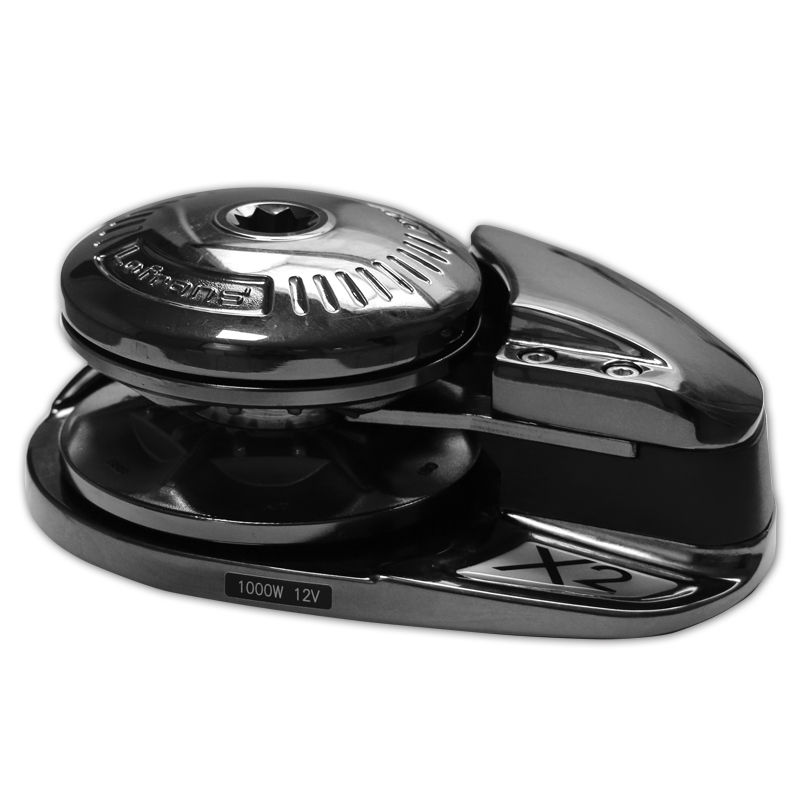

636703 8 mm, ISO 4565/ DIN 766 14 mm, 3-strand 20 m/min 40 m/min 1000 kg 1000 W 12 V Low Profile 19 kg 117 150 kg

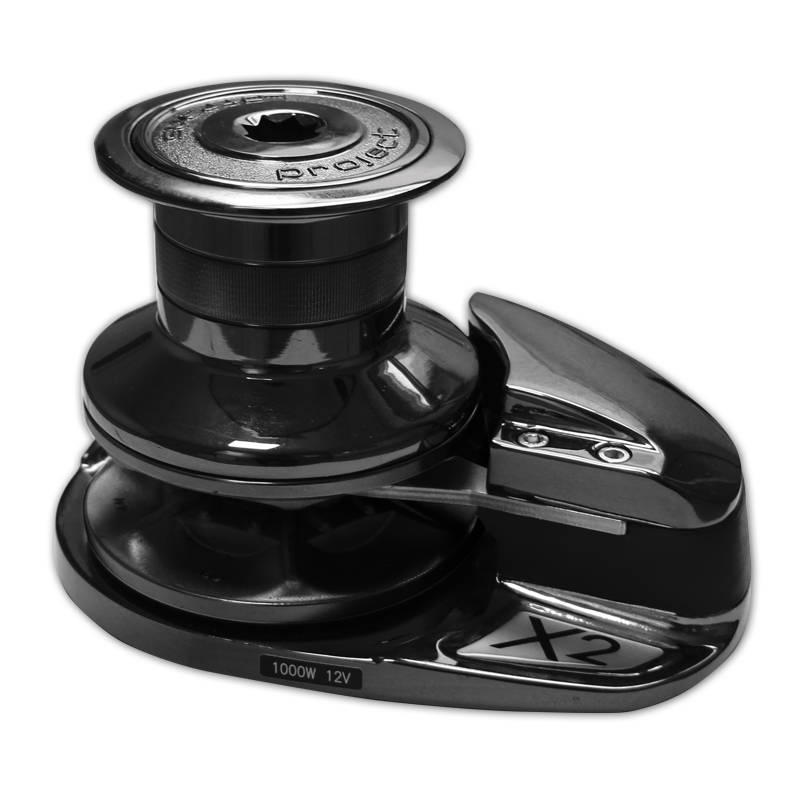

636704 8 mm, ISO 4565/ DIN 766 14 mm, 3-strand 20 m/min 40 m/min 1000 kg 1000 W 12 V With Drum 20 kg 117 150 kg
636705 10 mm, ISO 4565 - 20 m/min 40 m/min 1000 kg 1000 W 12 V Low Profile 19 kg 117 150 kg
636706 10 mm, ISO 4565 - 20 m/min 40 m/min 1000 kg 1000 W 12 V With Drum 20 kg 117 150 kg
636707 10 mm, DIN 766 - 20 m/min 40 m/min 1000 kg 1000 W 12 V Low Profile 19 kg 117 150 kg
636708 10 mm, DIN 766 - 20 m/min 40 m/min 1000 kg 1000 W 12 V With Drum 20 kg 117 150 kg
