X1- Vertical Windlass Dark Version

Main Features​

  • With drum or low profile
  • Independent gypsy and drum operation
  • Rope and chain combination gypsy
  • Manual chain release
  • Chain & rope management by the spring loaded arm
  • Chain counter magnet pre-installed as standard
  • IP67 motor cover
  • Marine anodised aluminium gearbox



Standard Equipment

  • Dual direction solenoid pack
  • Handle
  • Gypsy for chain & rope
  • QR code card for Instruction Manual

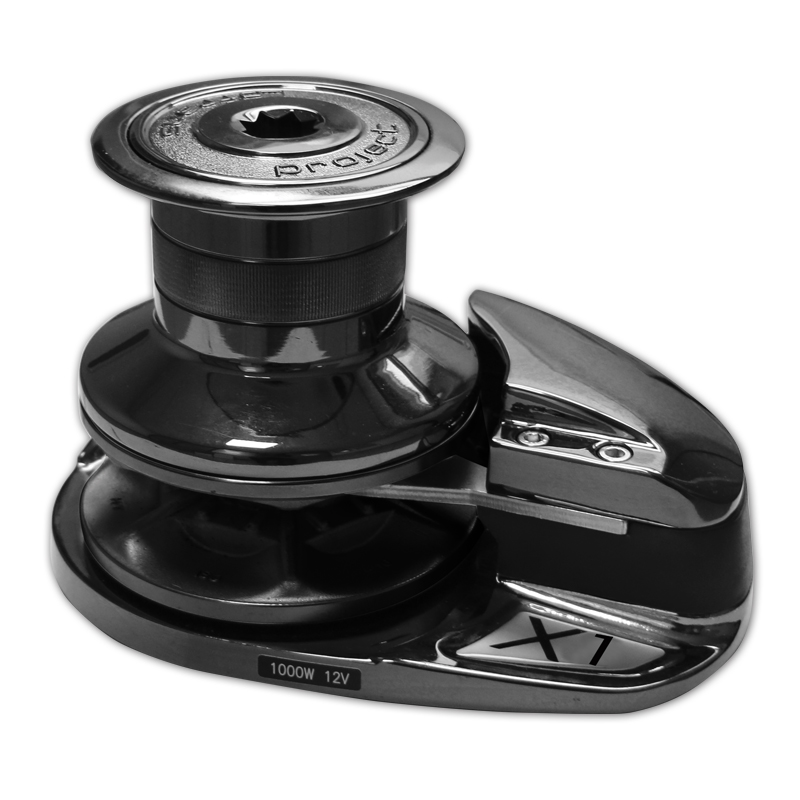

X1- Vertical Windlass Dark Version_photo-0 X1- Vertical Windlass Dark Version_photo-1
Printer Friendly Version

Code Gipsy For Chain Gipsy For Rope Line Speed at W.L Max Line Speed Maximum Pull Motor size Net Weight Power Supply Working load (kg) Type Amps at Working Load (A)
636206 6 mm, ISO 4565/ DIN 766 10-12 mm, 3-strand 23 m/min 26 m/min 630 kg 500 W 10 kg 12 V 95 kg Low Profile 60
636432 8 mm, ISO 4565/ DIN 766 12 mm, 3-strand 25 m/min 28 m/min 700 kg 800 W 13 kg 12 V 100 kg Low Profile 110
636433 6 mm, ISO 4565/ DIN 766 10-12 mm, 3-strand 25 m/min 28 m/min 700 kg 800 W 13 kg 12 V 100 kg Low Profile 110
636700 8 mm, ISO 4565/ DIN 766 12 mm, 3-strand 23 m/min 26 m/min 630 kg 500 W 10 kg 12 V 95 kg Low Profile 60
636701 8 mm, ISO 4565/ DIN 766 12 mm, 3-strand 18 m/min 30 m/min 900 kg 1000 W 16 kg 12 V 125 kg Low Profile 125
636702 8 mm, ISO 4565/ DIN 766 12 mm, 3-strand 25 m/min 28 m/min 700 kg 800 W 14 kg 12 V 100 kg With Drum 110
File
Installation And User's Manual ~ X1 - X1 ALU - X1 Dark Version Download
