Control Boxes Solenoids for DC

Control Boxes Solenoids for DC

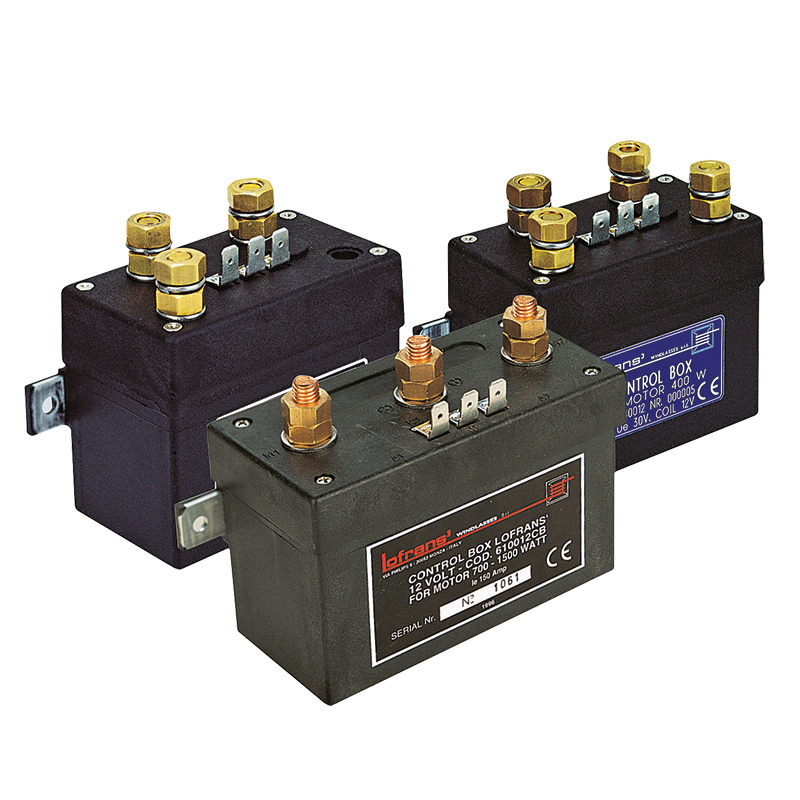

The Control Box is an electric unit made up of two remote control switches enclosed inside a special container which protects it from marine corrosion. The entire unit has been designed with a view to simplifying and speeding up the various electrical connections. For this purpose there is no need to open and / or pierce the container, as all the terminals and the panel for the electrical connections are perfectly accessible from the outside. Outer construction in self-extinguishing polyester resin, resistant to shock and marine corrosion. Degree of protection IP56 - protection against deckwater.



Code Motor size Number of terminals Power Supply
419245 3500 W 4 (compatible with 2 & 4 terminal motors) 24 V
475948 2700 W 2 24 V
600018 500-1700 W 3 (compatible with 3 terminal motors) 12 V
600019 500-1700 W 3 (compatible with 3 terminal motors) 24 V
600020 1700-2300 W 3 (compatible with 3 terminal motors) 24 V
600021 1000-1700 W 4 (compatible with 2 & 4 terminal motors) 12 V
600022 500-1700 W 4 (compatible with 2 & 4 terminal motors) 24 V
602590 500-700 W 4 (compatible with 2 & 4 terminal motors) 12 V
602591 500-1000 W 4 (compatible with 2 & 4 terminal motors) 24 V
File
Installation And User's Manual ~ Solenoids & Circuit Breakers Download
Lofrans control box wiring Download
