Foot Switch

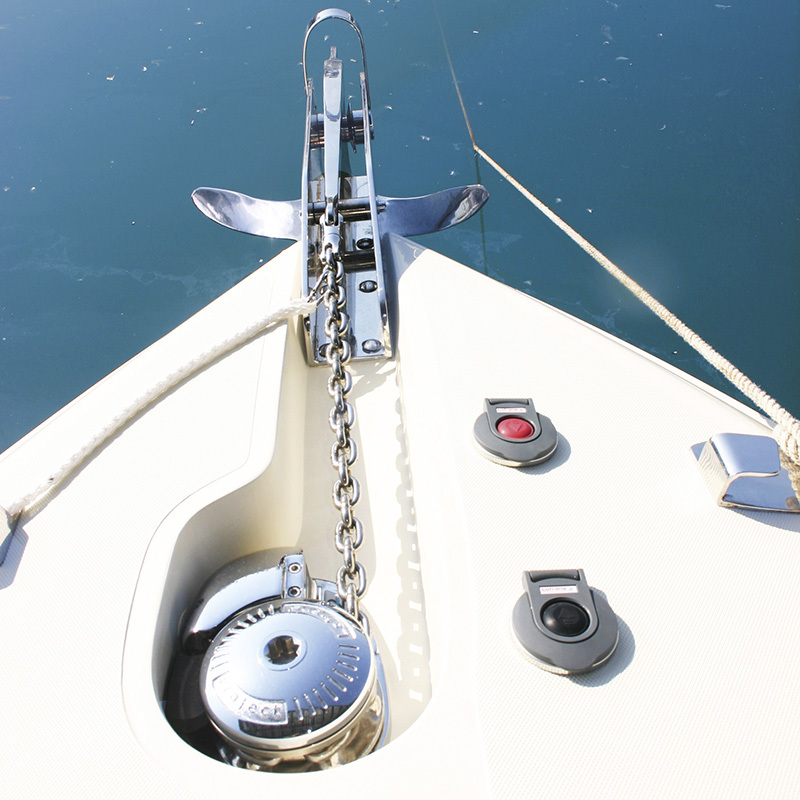

This device is a switch which works simply pushing the foot on the button. The base is in stainless steel while the cover to prevent accidental engagement is in composite. The button is in special marine rubber able to withstand UV ray and the marine environment. Available in UP and DOWN version.
| Code | Description | Description | Dimension (mm) | IP protection rated | Max Contacts Amperage (A) | Operative temperature | Voltage | Weight (g) |
|---|---|---|---|---|---|---|---|---|
![[] Lofrans' Footswitch, w/red button, Grey image](https://www.lofrans.com/images/items/itm_600011_012.jpg)
|
Lofrans' Footswitch, w/red button, Grey | Red / Grey DOWN | 80x95x20 | 67 | 5 | -10:+60 | 12-24 Vdc | 100 |
|
|
Lofrans' Footswitch, w/black button, Grey | Black / Grey UP | 80x95x20 | 67 | 5 | -10:+60 | 12-24 Vdc | 100 |
| 602119 | Lofrans' Footswitch, w/black button, White | Black / White UP | 80x95x20 | 67 | 5 | -10:+60 | 12-24 Vdc | 100 |
| 602120 | Lofrans' Footswitch, w/red button, White | Red / White DOWN | 80x95x20 | 67 | 5 | -10:+60 | 12-24 Vdc | 100 |
![[] Lofrans' Footswitch,w/ wash blue button, Grey image](https://www.lofrans.com/images/items/itm_602121.jpg)
|
Lofrans' Footswitch,w/ wash blue button, Grey | Blue /WASH DOWN | 80x95x20 | 67 | 5 | -10:+60 | 12-24 Vdc | 100 |
