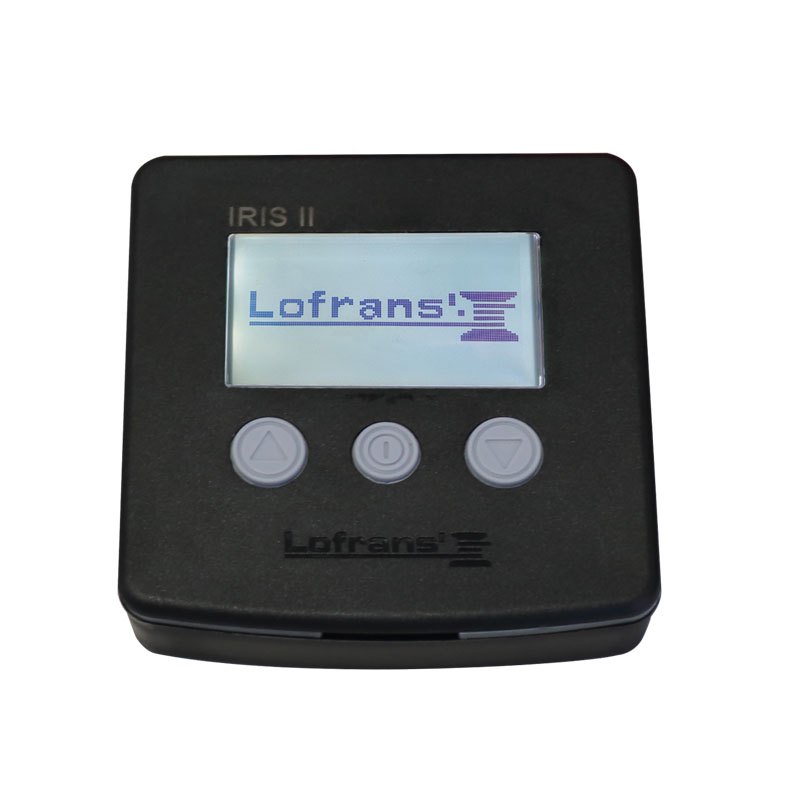

Chain Counter IRIS II

Chain Counter IRIS II



This fly bridge chain counter IRIS II is technologically advanced instrument with an elegant and ergonomic design makes it suitable for all type of boat cockpits.

IRIS II is supplied with an evolved microprocessor, with different operations allowing an optimum anchoring.

New larger display.

  • Chain speed indicator / mooring length in meters or feet
  • Voltage indicator
  • Up alarm sensor
  • Switch on button / Key tones adjustment
  • High vision LCD display 3,3” / Backlit display screen /
  • Eight level of contrast
  • Six language menu (IT, EN, FR, DE, ES, GR)
  • Able to control free fall windlasses
  • Parallel connection

Chain Counter IRIS II_photo-0

Code Command Transmission Dimension (mm) IP protection rated Max Contacts Amperage (A) Number of Button Operative temperature Voltage Weight (gr)
600017 Wire 110x105x15 (5 flat version) 67 2 3 -10:+60 12-24 Vdc 500
File
IRIS User Manual Download
THETIS Series AND IRIS II_Leaflet Download
THETIS Series AND IRIS II_Leaflet_IT Download
Thetis & Galaxy Wiring Combination Download
3D CAD Model ~ Iris Download
