Main Features:
To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

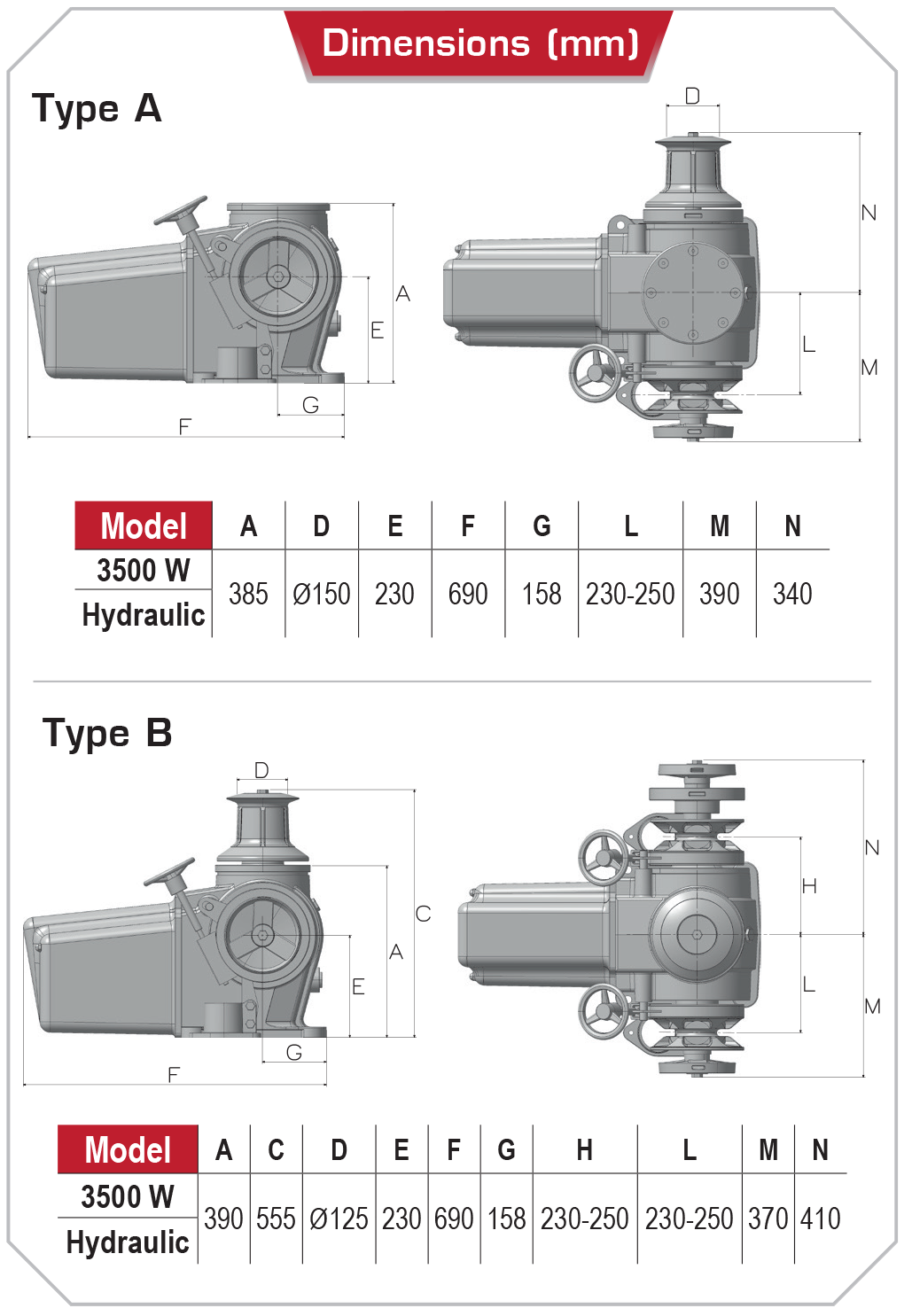

| Code | Amps at Working Load (A) | Gypsy For Chain | Hydraulic Flow | Hydraulic Pressure | Line Speed at W.L | Max Line Speed | Maximum Pull | Model type | Motor size | Net Weight | Power Supply | Type | Working load (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 220317 | 240 | 14 mm | - | - | 12 m/min | 20 m/min | 4500 kg | Type B | 3500 W | 200 kg | 24 V | With Drum | 1000 |
| 403614 | 240 | 14 mm | - | - | 12 m/min | 20 m/min | 4500 kg | Type C | 3500 W | 200 kg | 24 V | With Drum | 1000 |
| 403615 | 240 | 14 mm | - | - | 12 m/min | 20 m/min | 4500 kg | Type A | 3500 W | 200 kg | 24 V | With Drum | 1000 |
| 602509 | - | 14 mm | 40 lt/min | 200 bar | 14 m/min | 14 m/min | 5000 kg | Type A | Hydraulic-11cc | 180 kg | - | With Drum | 1200 |
| 602512 | - | 14 mm | 40 lt/min | 200 bar | 14 m/min | 14 m/min | 5000 kg | Type B | Hydraulic-11cc | 180 kg | - | With Drum | 1200 |
| 602515 | - | 14 mm | 40 lt/min | 200 bar | 14 m/min | 14 m/min | 5000 kg | Type C | Hydraulic-11cc | 180 kg | - | With Drum | 1200 |
| File | Category | ||
|---|---|---|---|
| Installation And User's Manual _ Ercole Horizontal Download | |||
| Lofrans' Hydraulic Windlasses Technical Specification Download | |||
| Lofrans' Oil Capacities Download | |||
| 3D CAD Model ~ Ercole Horizontal A Download | |||
| 3D CAD Model ~ Ercole Horizontal B Download | |||
| 3D CAD Model ~ Ercole Horizontal type B without Upper Drum Download | |||
| Deck Template ~ Ercole Horizontal (dwg) Download | |||
| Deck Template ~ Ercole Horizontal (pdf) Download |
