Vertical Windlass SX5

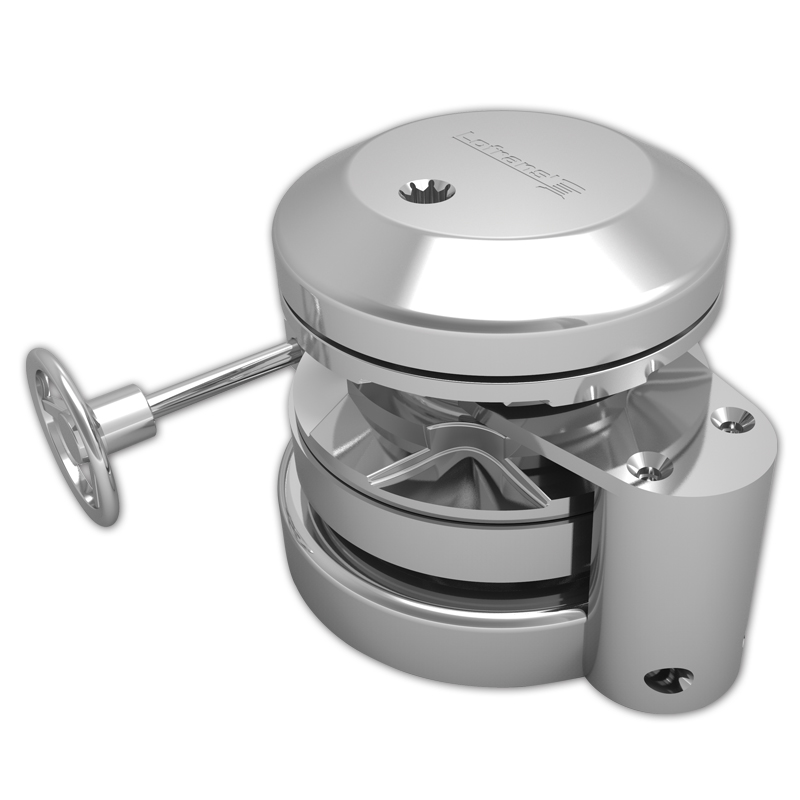

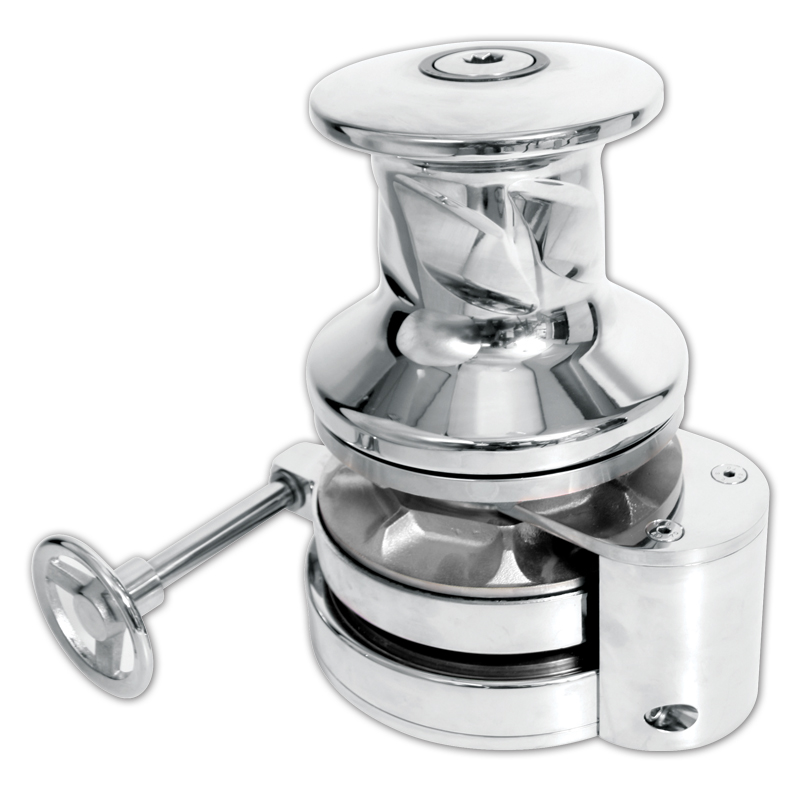

SX5 - Vertical Windlass

Main features:

Luxury stainless steel base and drum
Independent gypsy and drum operation
Manual chain release
Manual override
Chain counter magnet pre-installed as standard
Anodised marine aluminium gearbox
Heavy-duty electric motor
Chain pipe available as an option

Standard Equipment:

Dual direction solenoid pack
Handle
Gypsy for chain
CD / Instruction manual
Chain pipe also available as an option, code 636314

The standard features that you can meet in every SX series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Compact round base design constructed with Marine AISI 316L Stainless Steel

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

Printer Friendly Version

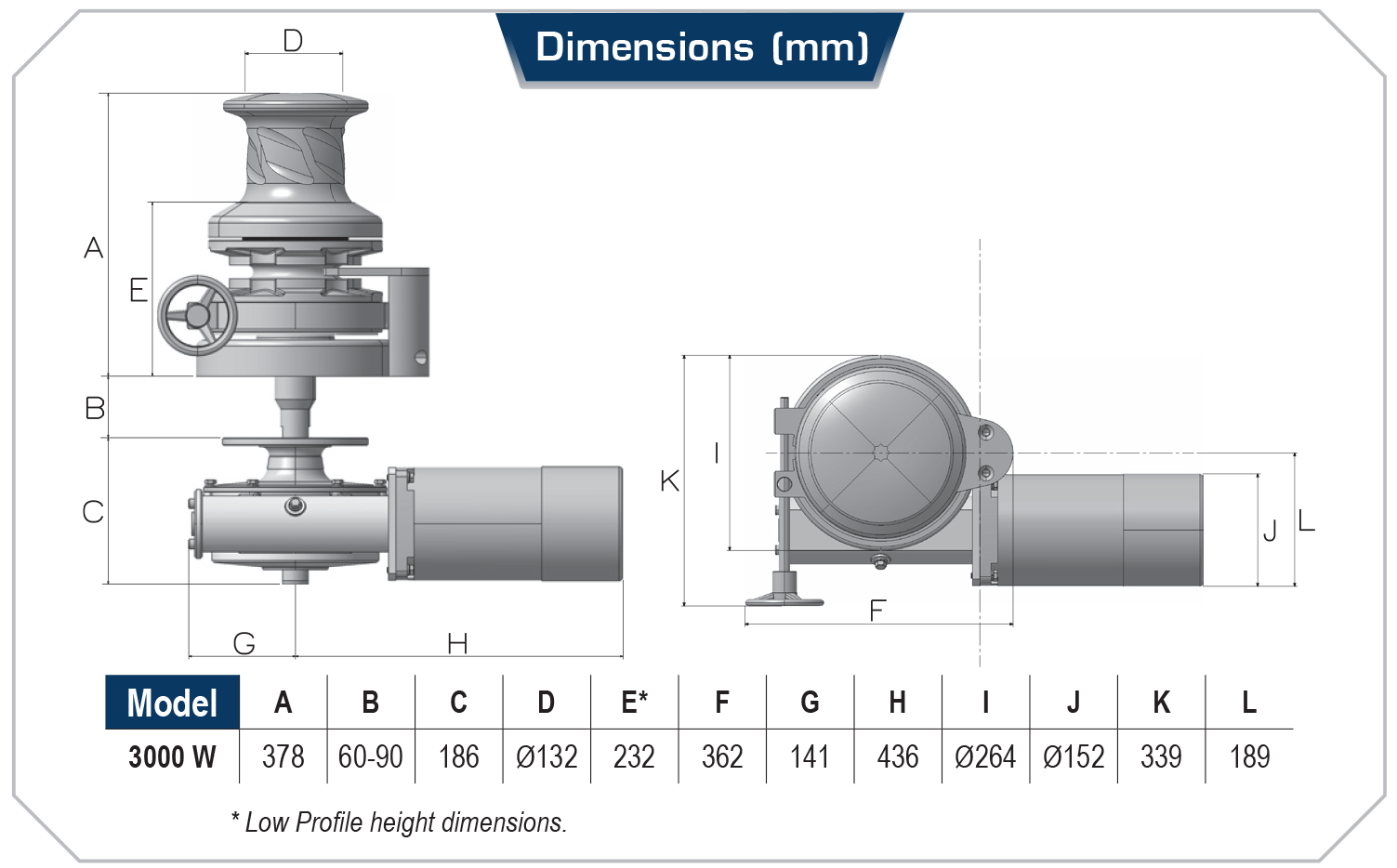

Code	Amps at Working Load (A)	Gypsy For Chain	Hydraulic Flow	Hydraulic Pressure	Line Speed at W.L	Max Line Speed	Maximum Pull	Motor size	Net Weight	Power Supply	Type	Working load (kg)

600089	210	12 mm, ISO 4565 13 mm, DIN 766	-	-	17 m/min	33 m/min	2800 kg	3000 W	100 kg	24 V	With Drum	760
600091	210	14 mm	-	-	17 m/min	33 m/min	2800 kg	3000 W	100 kg	24 V	With Drum	760
602389	-	12 mm, ISO 4565 13 mm, DIN 766	32 lt/min	200 bar	21 m/min	21 m/min	2500 kg	Hydraulic-8cc	85 kg	-	With Drum	680
602390	-	14 mm	32 lt/min	200 bar	21 m/min	21 m/min	2500 kg	Hydraulic-8cc	85 kg	-	With Drum	680
602392
636296	210	12 mm, ISO 4565/ 13 mm, DIN 766	-	-	17 m/min	33 m/min	2800 kg	3000 W	100 kg	24 V	Low Profile	760
636463	210	14 mm	-	-	17 m/min	33 m/min	2800 kg	3000 W	100 kg	24 V	With Drum (ccw)	760
