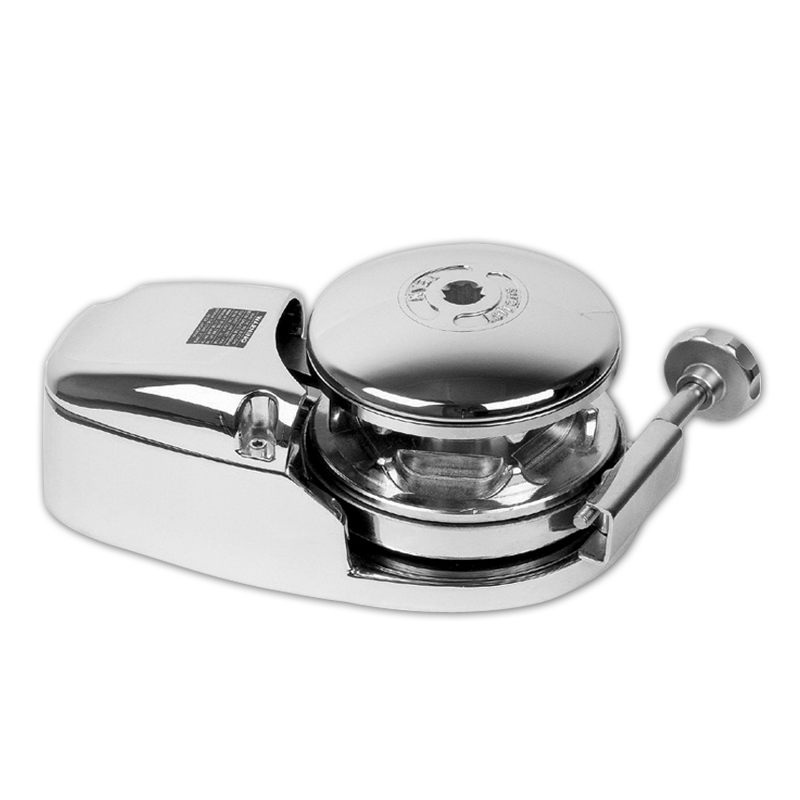

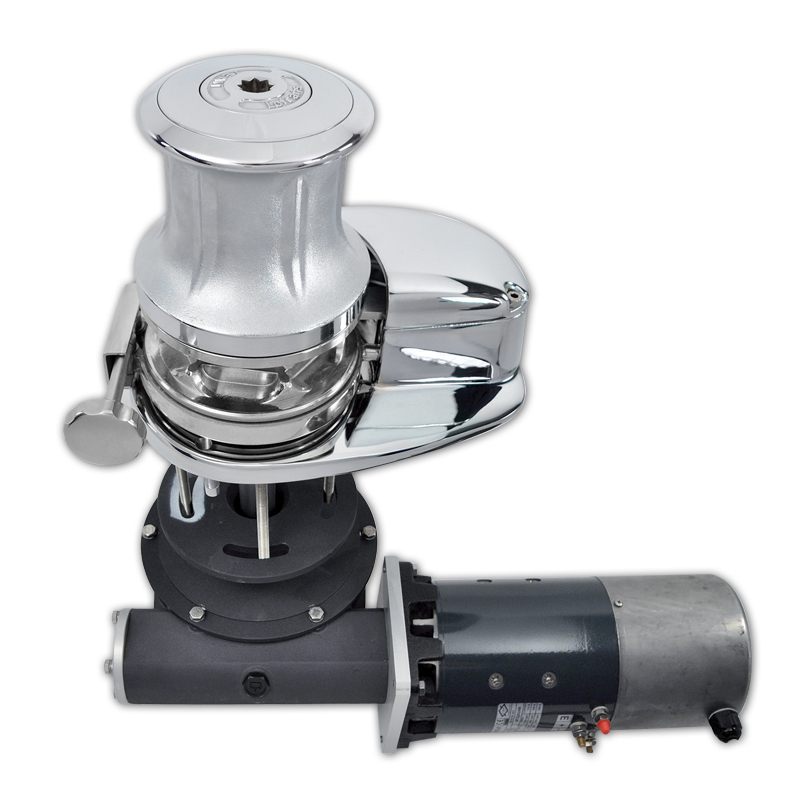

X4 - Vertical Windlass

Place Order

[11857] Lofrans' Winch Handle, Anodised Aluminium, with lock and speed handle, 20cm, Black

[72907] Lofrans' Floating Winch Handle, 25cm

[474010] KIT D CIRCLIPS X4

[474011] KIT C PINS X4

[474012] KIT B SCREWS X4

[474013] KIT A X4

[600033] KIT S SENSOR&MAGNET X4

[601308] KIT SPRING X4 #375 BEVEL TYPE

[601379] KIT STUD M10X140 #389A

[630669] MAIN SHAFT X4 #934A

[630670] MAIN SHAFT X4 #942A

[630938] BUSH FALKON #437A

[630940] BUSH FALKON #437C

[630996] LOFRANS GYPSY Falkon/Titan/PRJ2000/X4/SX3.5 8mmISO4565/DIN766 #367A

[631022] Lofrans' GYPSY FALKON/TITAN/PRJ2000/X4/SX3.5 10mmISO-3/8 HT #367B

[631031] Lofrans' GYPSY FALKON/TITAN/PRJ2000/X4/SX3.5 12-13DIN766 #367D

[631036] LOFRANS GYPSY Falkon/Titan/PRJ2000/X4/SX3.5 1/2" G40 #367E

[631132] Lofrans' GYPSY FALKON/TITAN/PRJ2000/X4/SX3.5 10-3/8DIN766-BBB #367C INOX

[630996] LOFRANS GYPSY Falkon/Titan/PRJ2000/X4/SX3.5 8mmISO4565/DIN766 #367A

[631022] Lofrans' GYPSY FALKON/TITAN/PRJ2000/X4/SX3.5 10mmISO-3/8 HT #367B

[631036] LOFRANS GYPSY Falkon/Titan/PRJ2000/X4/SX3.5 1/2" G40 #367E

[631132] Lofrans' GYPSY FALKON/TITAN/PRJ2000/X4/SX3.5 10-3/8DIN766-BBB #367C INOX

[636572] Lofrans' GYPSY FALCON/TITAN/PRJ2000/X4 12-13DIN766 #367D INOX

[631192] BASE X4 #931 CRO STB

[631362] CAP CHAIN X4 #933 CRO STB

[631398] Brake cover X4 #939 inox

[631428] DRUM X4 #940 CRO

[631517] BRACKET X4 #877

[631535] Wormwheel X4-SX5 M=2,25 Z=84 #876

[631654] GEARCASE X4 #878 ALU

[631745] BEARING 6008 2RS #870

[631753] BEARING 6206 2Z #453

[631761] BEARING 16010 #396

[631768] BEARING 51108 RETTIFICATO (RETTIFICA)

[631823] CONE CLUTCH X4 #943 (G)

[631854] CONE CLUTCH X4 #865

[631868] CONE CLUTCH X4 #866

[631924] SPACER X4 #883

[632087] FLANGE X4 #874

[632141] FLANGE X4 #880

[632157] FLANGE TITAN #413

[632158] FLANGE X4 #881

[632169] BRAKE X4 #935

[633241] COUPLING TITAN #679 AC MOTOR

[633316] HANDLE X4 #884

[633426] SIGHTGLASS TIGRES #407

[633429] KNOB X4 #938

[633491] AC MOTOR TITAN #680C 415V 2,2KW

[633502] Lofrans Motor Titan 2300W/24V #419

[633503] Lofrans Motor X4 2700W/24V #433

[633542] SPRING X4 #365

[633545] SPRING FALKON #403

[634590] SEAL O RING 60-5 SPECIAL #1192

[634602] Brake pivot X4 #937 inox

[634603] Pivot X4 #936

[634604] Pivot X4 #941

[634616] Pivot Falkon #449

[634827] WASHER X4 #1005

[635268] STRIPPER X4 #932

[635312] Pin 4x20 #401

[635328] PAWL X4 #399

[635444] OIL PLUG TC0 3/8

[635459] GYPSY CAP X4 #944 CRO STB

[635541] CLUTCH NUT X4 #841 CRO STB

[635696] VITE SENZA FINE X5 M=2.25 Z=84 #1261

Main Features:

Standard Equipment:

Dual direction solenoid pack
Handle
Gypsy for chain
CD / Instruction manual

Get in touch

Code	Description	Motor size	Power Supply	Maximum Pull	Working load (kg)	Amps at Working Load (A)	Line Speed at W.L	Max Line Speed	Net Weight	Circuit Breaker	Control Box	Hydraulic Pressure	Hydraulic Flow	Type	Gypsy For Chain	Pull Type
	WINDLASS V. X4 CRO G+D 2700W/24V 14mm	2700 W	24 V	2400 kg	530	170	12 m/min	28 m/min	85 kg	187334	Included in package	-	-	With Drum	14 mm	CW
	WINDLASS V. X4 CRO G+D 2300W/24V 12-13DIN766	2300 W	24 V	2000 kg	500	160	12 m/min	25 m/min	82 kg	187333	Included in package	-	-	With Drum	12 mm, ISO 4565 / 13 mm, DIN 766	CW
	WINDLASS V. X4 CRO G+D 2300W/24V 14mm	2300 W	24 V	2000 kg	500	160	12 m/min	25 m/min	82 kg	187333	Included in package	-	-	With Drum	14 mm	CW
	WINDLASS V. X4 CRO G+D 2300W/24V 10 3/8 HT	2300 W	24 V	2000 kg	500	160	12 m/min	25 m/min	82 kg	187333	Included in package	-	-	With Drum	10 mm, ISO 4565	CW
	WINDLASS V. X4 CRO R. G+D 2300W/24V 12-13DIN766	2300 W	24 V	2000 kg	500	160	12 m/min	25 m/min	82 kg	187333	Included in package	-	-	With Drum	12 mm, ISO 4565 / 13 mm, DIN 766	CCW
	WINDLASS V. X4 CRO G+D 2700W/24V 12-13DIN766	2700 W	24 V	2400 kg	530	170	12 m/min	28 m/min	85 kg	187334	Included in package	-	-	With Drum	12 mm, ISO 4565 / 13 mm, DIN 766	CW
	WINDLASS V. X4 CRO CCW G+D 2700W/24V 12-13DIN766	2700 W	24 V	2400 kg	530	170	12 m/min	28 m/min	85 kg	187334	Included in package	-	-	With Drum	12 mm, ISO 4565 / 13 mm, DIN 766	CCW
601002	WINDLASS V. X4 CRO CCW 2300W/24V 1/2 HT	2300 W	24 V	2000 kg	500	160	12 m/min	25 m/min	72 kg	187333	Included in package	-	-	Low Profile	½ HT	CCW
601003	WINDLASS V. X4 CRO CCW 2300W/24V 7/16 HT	2300 W	24 V	2000 kg	500	160	12 m/min	25 m/min	72 kg	187333	Included in package	-	-	Low Profile	7/16 HT	CCW
	WINDLASS V. X4 CRO R. 2300W/24V 12-13DIN766	2300 W	24 V	2000 kg	500	160	12 m/min	25 m/min	72 kg	187333	Included in package	-	-	Low Profile	12 mm, ISO 4565 / 13 mm, DIN 766	CCW
601143	WINDLASS V. X4 CRO 2300W/24V 14mm	2300 W	24 V	2100 kg	500	160	13 m/min	25 m/min	72 kg	187333	Included in package	-	-	Low Profile	14 mm	CW
	WINDLASS V. X4 CRO R. G+D 2300W/24V 14mm	2300 W	24 V	2000 kg	500	160	12 m/min	25 m/min	82 kg	187333	Included in package	-	-	With Drum	14 mm	CCW
	WINDLASS V. X4 CRO R. 2700W/24V 12-13DIN766	2700 W	24 V	2400 kg	530	170	12 m/min	28 m/min	75 kg	187334	Included in package	-	-	Low Profile	12 mm, ISO 4565 / 13 mm, DIN 766	CCW
601165	WINDLASS V. X4 CRO 2700W/24V 10DIN766	2700 W	24 V	2500 kg	530	170	13 m/min	28 m/min	75 kg	-	Included in package	-	-	Low Profile	10 mm DIN 766 3/8’’ BBB	CW
	WINDLASS V. X4 CRO G+D 2700W/24V 10 3/8 HT	2700 W	24 V	2400 kg	530	170	12 m/min	28 m/min	85 kg	-	Included in package	-	-	With Drum	10 mm ISO 4565 3/8’’ HT	CW
	WINDLASS V. X4 CRO R. G+D 2700W/24V 14mm	2700 W	24 V	2400 kg	530	170	12 m/min	28 m/min	85 kg	-	Included in package	-	-	With Drum	14 mm	CCW
601203	WINDLASS V. X4 CRO R. 2200W/400V 12-13DIN766	2200 W	400 V	2200 kg	595	-	16 m/min	16 m/min	73 Kg	-	Switchboard available separately	-	-	Low Profile	12 mm, ISO 4565 / 13 mm, DIN 766	CCW
601204	WINDLASS V. X4 CRO 2200W/400V 12-13DIN766	2200 W	400 V	2200 kg	595	-	16 m/min	16 m/min	73 Kg	-	Switchboard available separately	-	-	Low Profile	12 mm, ISO 4565 / 13 mm, DIN 766	CW
601208	WINDLASS V. X4 CRO R. G+D 2200W/400V 14mm	2200 W	400 V	2200 kg	595	-	16 m/min	16 m/min	80 kg	-	Switchboard available separately	-	-	With Drum	14 mm	CCW
601209	WINDLASS V. X4 CRO G+D 2200W/400V 14mm	2200 W	400 V	2200 kg	595	-	16 m/min	16 m/min	80 kg	-	Switchboard available separately	-	-	With Drum	14 mm	CW
602360	WINDLASS V. X4 CRO R. 2300W/24V 14mm	2300 W	24 V	2100 kg	500	160	13 m/min	25 m/min	72 kg	187333	Included in package	-	-	Low Profile	14 mm	CW
	WINDLASS V. X4 CRO G+D HYD/ 12-13DIN766	Hydraulic-8cc	-	2500 kg	650	-	16 m/min	16 m/min	60 kg	-	-	200 bar	32 lt/min	With Drum	12 mm, ISO 4565 / 13 mm, DIN 766	CW
	WINDLASS V. X4 CRO G+D HYD/ 14mm	Hydraulic-8cc	-	2500 kg	650	-	16 m/min	16 m/min	60 kg	-	-	200 bar	32 lt/min	With Drum	14 mm	CW
	WINDLASS V. X4 CRO R. G+D HYD/ 12-13DIN766	Hydraulic-8cc	-	2500 kg	650	-	16 m/min	16 m/min	60 kg	-	-	200 bar	32 lt/min	With Drum	12 mm, ISO 4565 / 13 mm, DIN 766	CCW
	WINDLASS V. X4 CRO R. G+D HYD/ 14mm	Hydraulic-8cc	-	2500 kg	650	-	16 m/min	16 m/min	60 kg	-	-	200 bar	32 lt/min	With Drum	14 mm	CCW

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.
